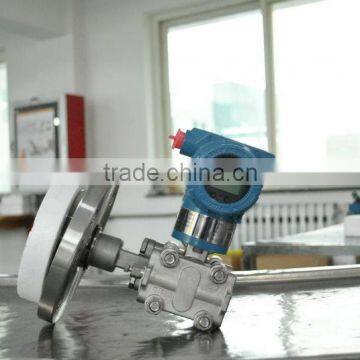

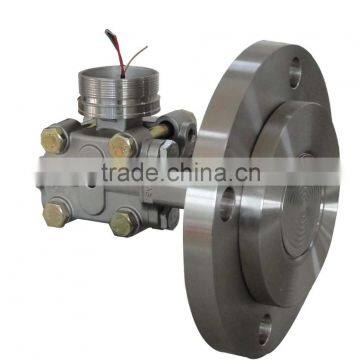

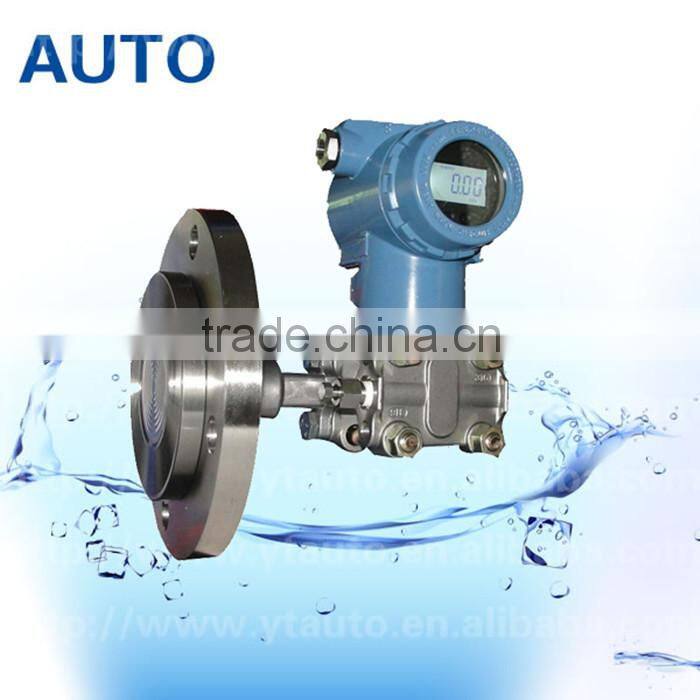

3051 Differential Pressure Flange Level Transmitter
What is 3051LT liquid level transmitter?
3051LT level transmitter is used to measure level and density of liquids with solid and sediment,
then convert into 4-20 mA current signal output.available to connect with Hart Protocol for data
monitor and control.
3051LT liquid level transmitter is widely used in petroleum,chemical,metallurgy,electric power,food,
paper, pharmaceutical, machinery,manufacturing and other industries.
What is the technical parameter of 3051LT liquid level transmitter?
Process Fluid |
Liquid, Gas, Vapor |
Display |
4 Digits programmable & 0-100% Bargraph |
Application |
solid and precipitation liquid density and liquid level |
Measuring Range |
635-70380mmH2O |
Turn Down Ratio |
1 : 100 |
Accuracy |
+/- 0.075% of span |
Power Supply |
9-36V DC |
Working Temperature |
-40 to 104°C |
Display Unit |
Standard 22 engineering unit,4 Digits programmable for special unit |
Current Output |
4 - 20 mA 2 wires Hart Protocol |
Humidity Limits |
0 to 100% Relative |
Keyboard |
3 keys from internal for Programming |
Damping Adjustment |
0 - 32 Second,Response Time:200 ms |
Mounting |
Bracket on 2" Pipe |
Max. Pressure |
40 MPa |
How to choose the correct model?
Order sheet:
3051LT--------◊-----------◊---------◊----------◊----------◊----------◊--------------------◊
measuring range output flange material display process flange explosion-proof
1.range:a.635-3810 mmH2O;
b.3175-19090 mmH2O;
c.11730-70380 mmH2O
2.output:E:4-20mA;
S:4-20mA,HART protocol;
L:4-20mA,field adjustable
3.flange:flange size:DN50;DN80 or 3";DN100 or 4"
insertion length:0;50.8mm;101.6mm;152.4mm
flange standard:DN50 150 lb;3" or DN80 150 lb;4" or DN100 150 lb
4.material:ss316;HC;monel;tantalum
5.display:M1:linear display(0-100% scale)
M2:square root display(0-100% scale)
M3:3 1/2 place LCD display(0-100% linearity)
M4:1 1/2 place LCD display(special customize)
cess flange:D1:side drain/exhaust,top
D2:side drain/exhaust,bottom
7.explosion-proof:d II B T5

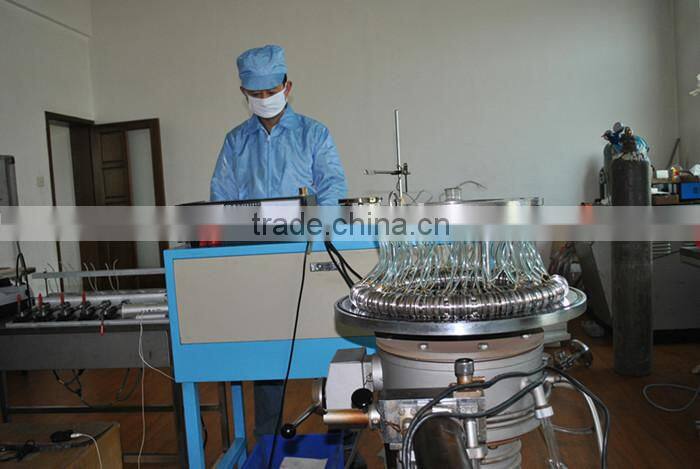

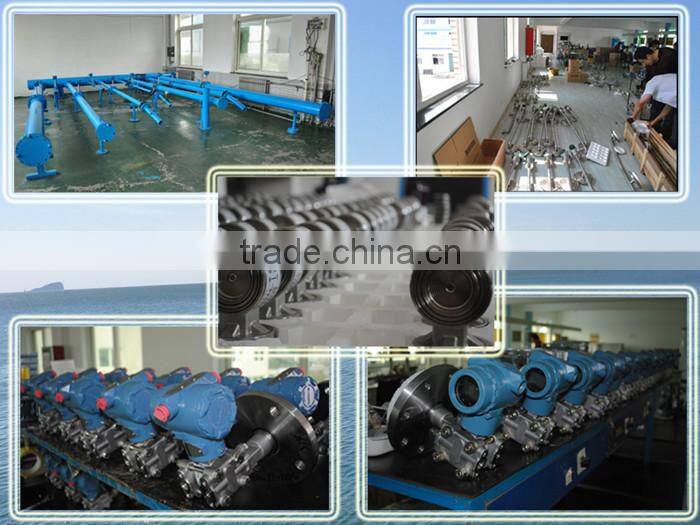

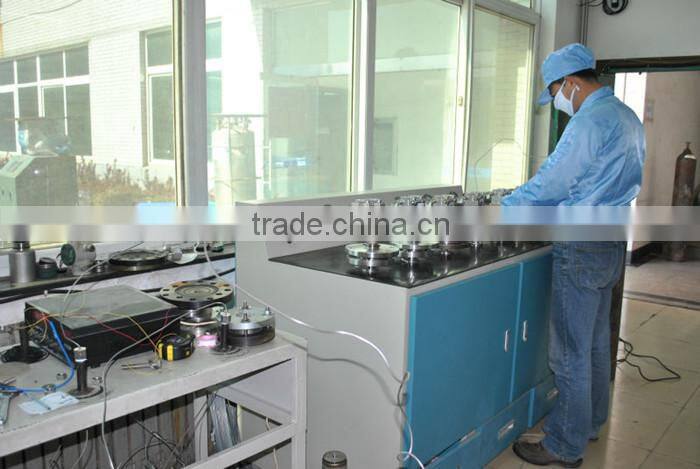

How about our workshop?

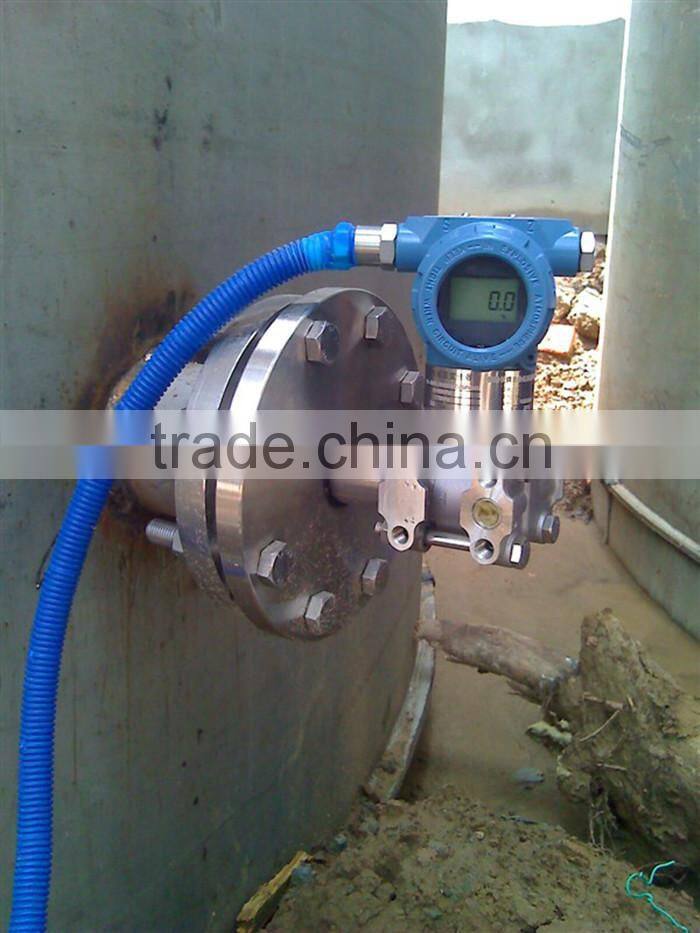

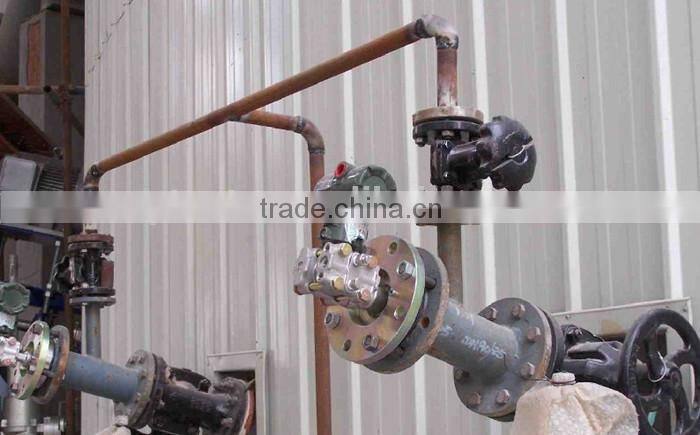

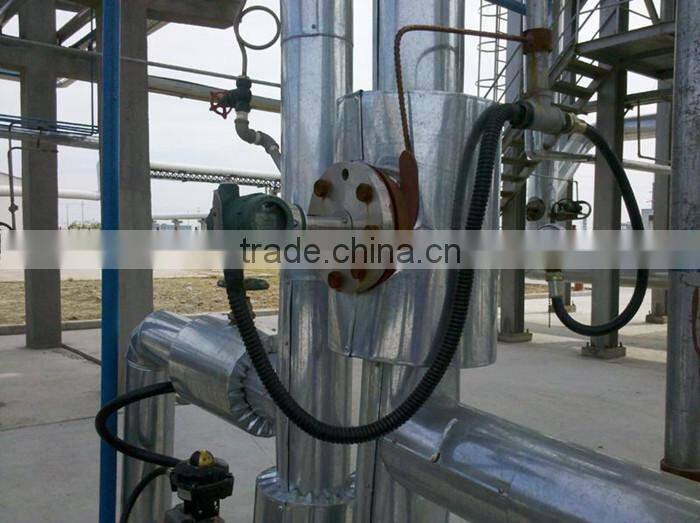

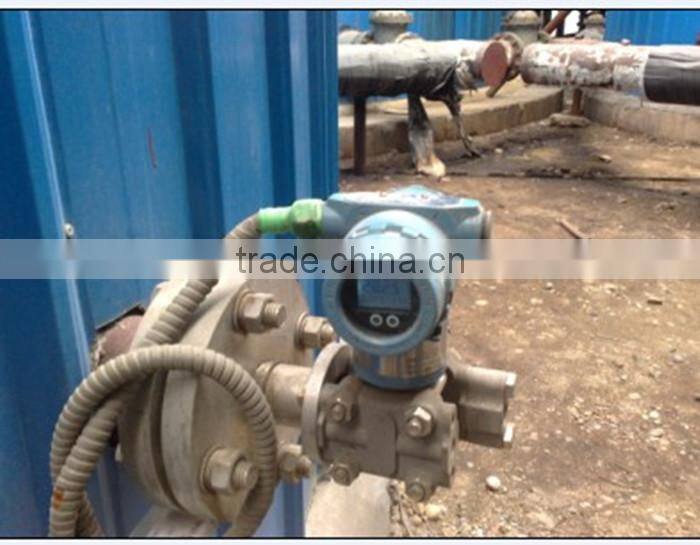

What is the installation?
Delivery:courier ex:DHL,FEDEX,UPS etc;sea or air service
Origin city:Yantai,China
trademanager online service:8:00AM~10:00PM, Monday ~ Sunday
skype ID:serena.fan79
telephone:+86 18663813895
warranty:12months

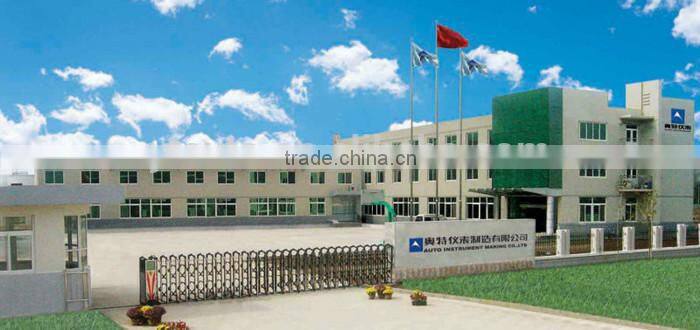

We are Yantai Auto Instrument Making CO.,LTD.,founded in 1994,locate in Yantai,Shandong
Province,China.We Yantai Auto are special field instrument manufacuturer,mainly produce flow
meter,level meter,online density meter,pressure transmitter etc.We also have aother comany
Yantai Keda Heavy Industry Co.,Ltd which is specialized in various kinds of castings.
Our product are widely used in the industries of electrical power,petroleum,metallurgy,medicine,
food,brewing,textile and build material etc.Our performance are quickly increased under 10 years
stable development.
We are the first instrument company in Shandong province who get the certification of ISO:2000
quality system acknowledge and esteblished quality control system under international standard.
Our company is authorized to be the China Marketing General Agent of ultrasonic range finder by
the Bohr company from Germany.
How about our certification?
If you are interested in our magnetic flow meter
click "send" right now to contact us!
