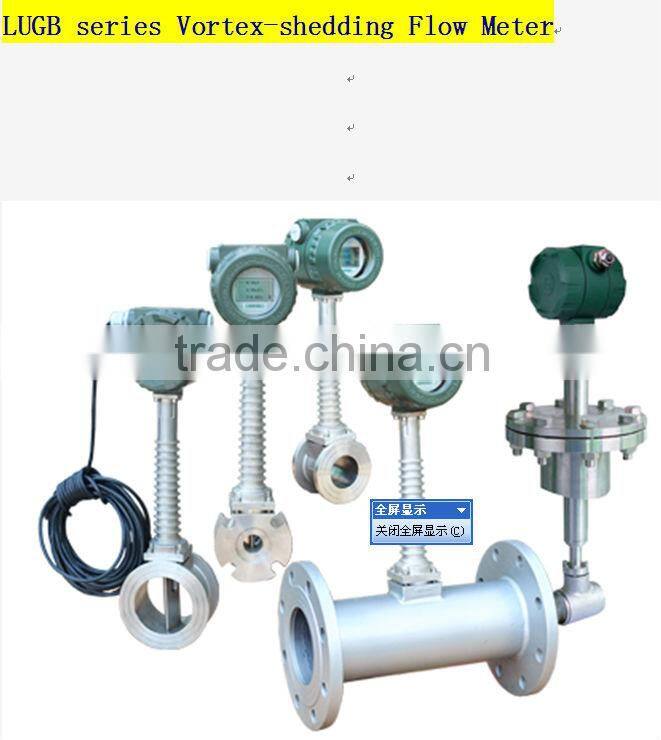

LUGB Vortex-shedding Flow Meter for Water
Specifications
1. good performance and stability2. high accuracy
3. imported material
4. different installation method
II)Welding two pieces of flanges at the position to install the instrument and then install the sensor.
III) to remove unwanted straight tube (i.e., the width of the instruement body).
IV) Welding the before and after straight pipe section to the original technology pipe.
Method B: (see diagram 7)
I Considering before 15DN, after 5DN to choose the instrument installing position.
II Taking a length of the pipe of the instrument width, and welding flange holes on two concentric, the sensor bolt is good.
