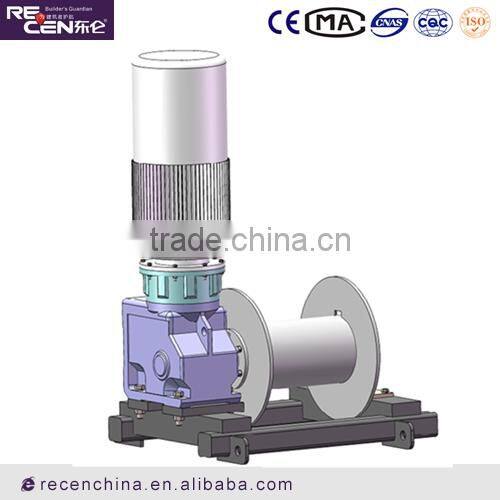

Swing Rod Mechanism (11TPF10)

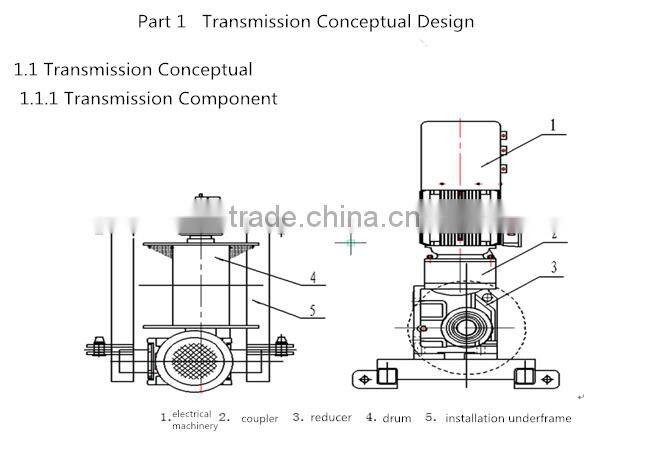

1.1.2 Transmission Features
This transmission is stable and efficient;
1.2 Project Proof
The prime mover is dynamo, after connect the coupling sleeve through the reducer drive to drum. Drive project straight connect dynamo and reducer. simple structure, easy to manufacture.
High transmission efficiency of gear reducer, wide range of power and speed, long life, is one of the most widely used modern machines.
Overall, the transmission program meet the performance requirements of the working machine, adapt working conditions, reliable work, in addition to simple structure, compact size, high transmission efficiency.

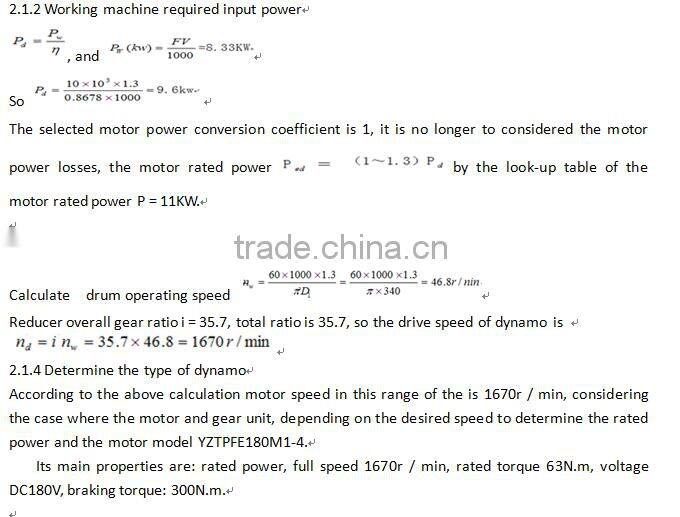

Part 2 The selection of Dynamo
2.1 the selection of dynamo
2.1.1 The total efficiency of the transmission device
Efficiency of each part is :Coupling drive efficiency isη1=0.99, Rolling effeiciency is η2=0.99, closed gear efficiency is η3=0.99, reel drive efficiency is η4=0.95,then we have following :
Part 3 Calculation and Verification

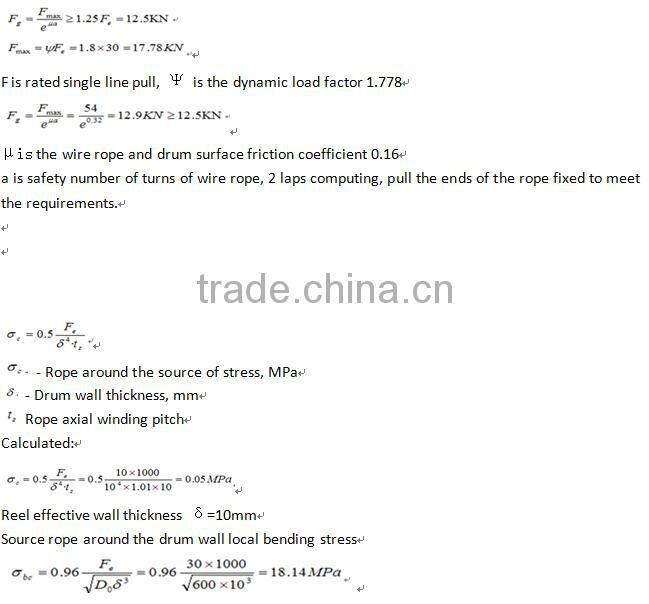

3.5 Calculate the fixed end of the rope pull Fg
In security circles reservation twice, and calculate the fixed end of the rope pull
The source of the rope around the drum wall local bending stress, 18.14MPa

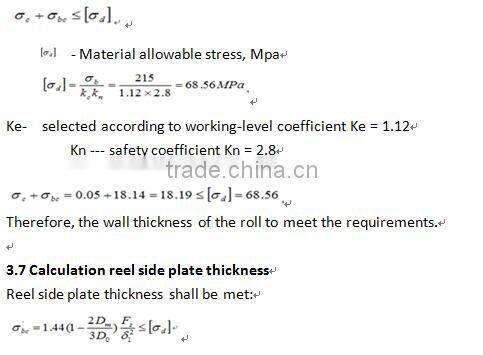

Reel wall strength conditions should be met:

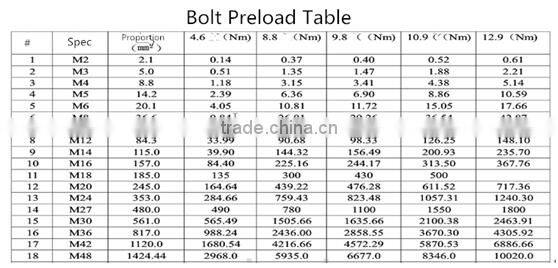

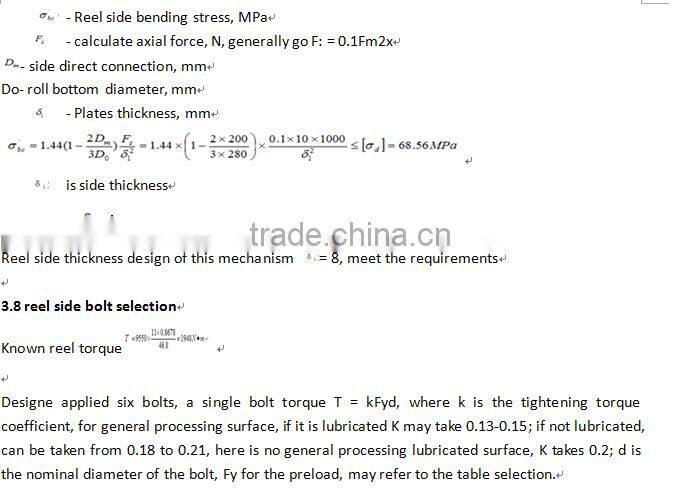

This bolt is applying 8.8 standard, six bolts torque and require large spool suffered torque, namely
6T = kFyd≥Tg
6 * 0.2 * Fyd≥1984N * m
After calculation, select the M16 bolt, 6T = 6 * 0.2 * 225.16 * 16 = 4320≥1984 N * m meet the requirements.
