Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > Tower Crane Slewing Motor ( YTLEJ Series)

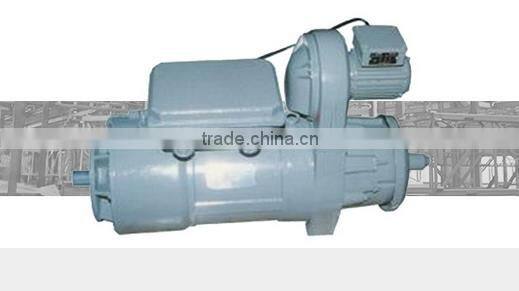

Tower Crane Slewing Motor ( YTLEJ Series)

Name: Tower Crane Slewing Motor ( YTLEJ Series)
Brand: Recen
SKU: 122297349
Availability: InStock

Tower Crane Slewing Motor ( YTLEJ Series) thumbnail-1

Tower Crane Slewing Motor ( YTLEJ Series) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Recen

Model Number:

YTLEJ

Contact Supplier Request Quote Chat Now

Chengdu Recen Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/BY AIR

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Recen

Model Number YTLEJ

slewing motor for tower crane tower crane part tower crane
1.Brand :SCM,SYM,Yongmao.etc.
2,Type:185NM,145NM,1

selwing motor for tower crane tower crane part tower crane:

Type	Torque(N.M)	Current(A)	Electromagnetism torque(N.M)	Weathercock	Weight kg
YTLEJ112M-55-4B1	55	24	35	Yes	85
YTLEJ112M-55-4B2	55	24	no	No	75
YTLEJ112M-65-4B1	65	26	35	yes	85
YTLEJ112M-65-4B2	65	26	no	No	75
YTLEJ112M-75-4F1	75	30	35	Yes	90
YTLEJ112M-75-4F2	75	30	no	No	80
YTLEJ112L-95-4F1	95	34	40	Yes	105
YTLEJ112L-95-4F2	95	34	no	No	95
YTLEJ112L-120-4F1	120	40	40	Ye	115
YTLEJ112L-120-4F2	120	40	no	No	105
YTLEJ132L-145-4F1	145	54	75	yes	145
YTLEJ132L-145-4F2	145	54	no	No	130
YTLEJ132L-185-4B1	185	68	75	Yes	155
YTLEJ132L-185-4B2	185	68	no	No	140

Our main products are France type and QTZ type tower crane parts, mast section. anchore frame, fixing angle, pin, bolt,

various mech, assembly and spare parts, control box, resistance box and spare parts,

drive room and spare parts, wire rope, pulley, cable etc. complete anti-parts

We can also supply any part of tower crane,such as hoisting mechanism,trolleynig mechanism,

slewing mechanism and so on.

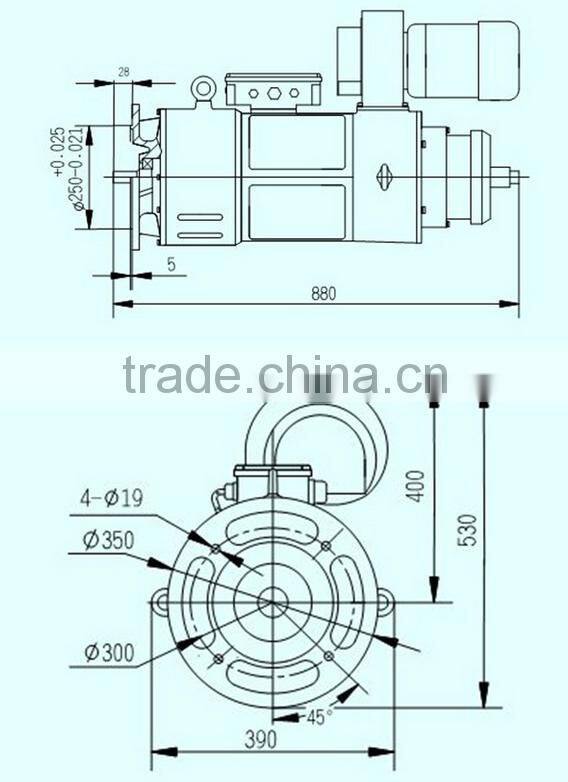

With brake using YTLEJ112 motor installation appearance dimension:

With brake using YTLEJ132 motor installation appearance dimension:

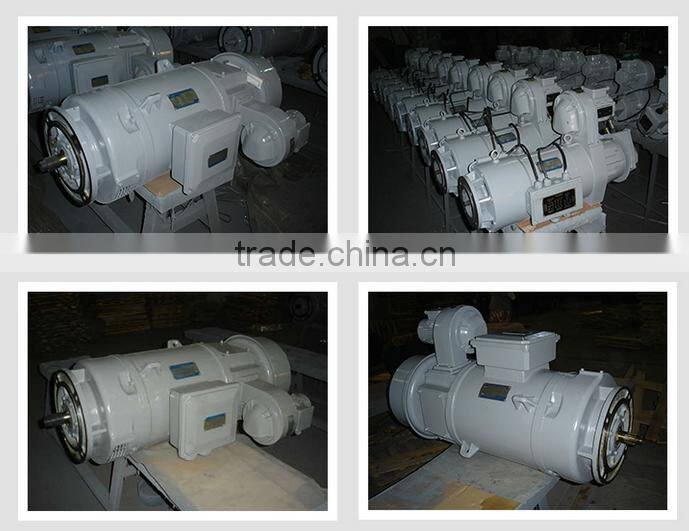

Products Exhibition:

Our Services

1- One year warranty for whole machines.

2- Providing free quick-wear part.

3- Low charge for continue maintenance when warranty is expired.

4- Exclusive engineer support at any time.

5- free training to end-users.

6- 24 hours online service and support

Company Information

Chengdu Recen Technology Co., Ltd. is a high-tech enterprise which locate in Chengdu, Sichuan Province of China, and it has more than five years experience in the field of construction tower crane industry. Since established, Recen has been insisting to invest heavily in product development and focus on products usability, design, and technology quality to providing high-technology, high-efficiency and high-energry save products to meet market demand. Based on the corporate mission of "as bulder's escort" and insisting on the advanceted, innocative and reasonable working core, Recen has won recognition and praise from the users at home and abroad. So far, our customers are throughout China, Hong Kong, Russia, the United States, Vietnam, India, Malaysia, Argentina, Kuwait, Isreal, Egypt, the United Arab Emirates and other countries and regions. Through continous development and improvement, Recen has made considerable achievements not only on company qualification but also on product development within a few years.

Certification & Testing
