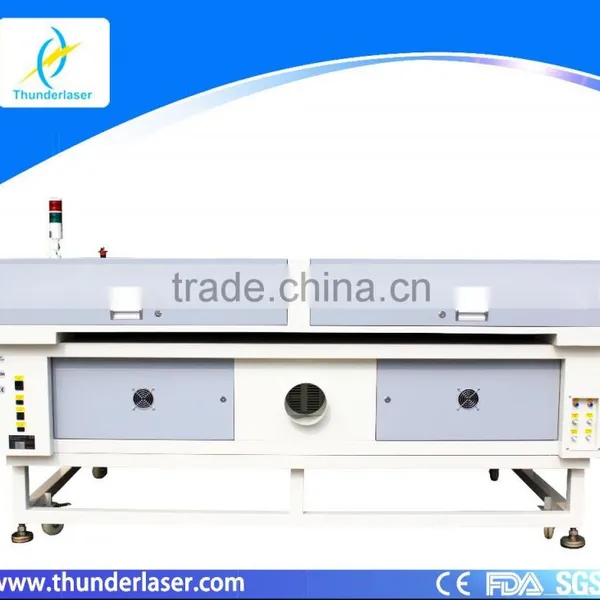

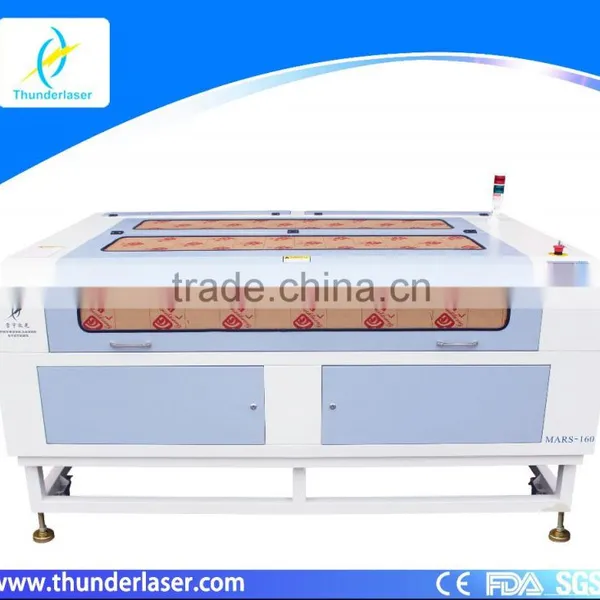

MODEL:MARS160
high quality laser stone cutter price and laser engraving on wood

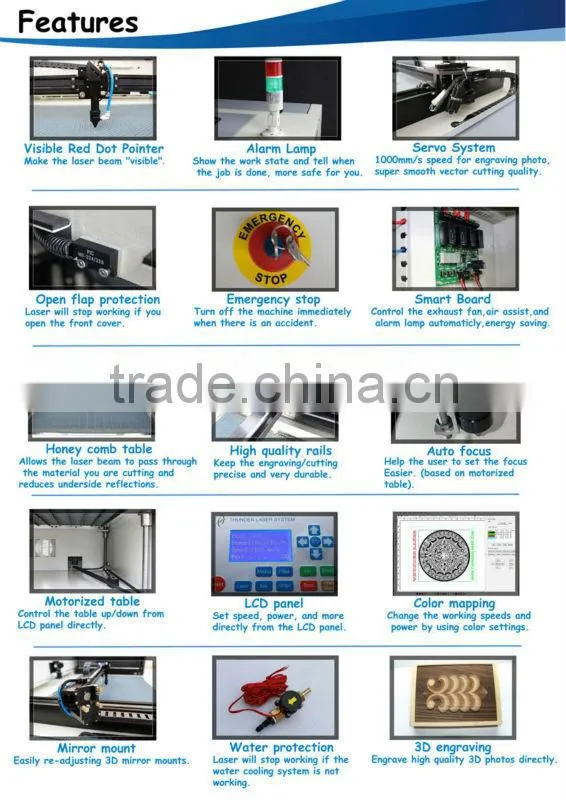

Why choose Thunderlaser?

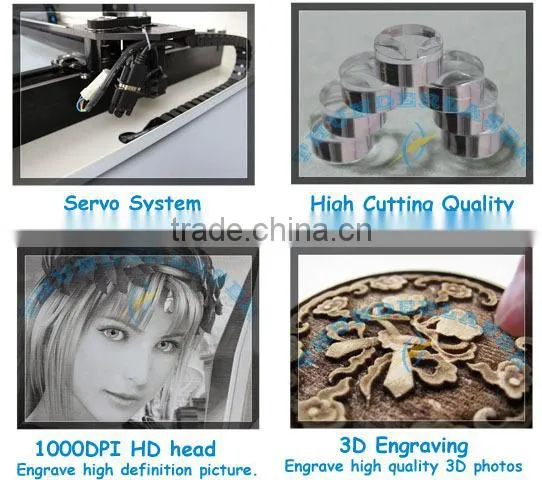

1.high quality
1.1.servo motor, high speed 1000mm/s ,
1.2.super smooth cutting quality
1.3.1000DPI HD head
1.4.3D Engraving

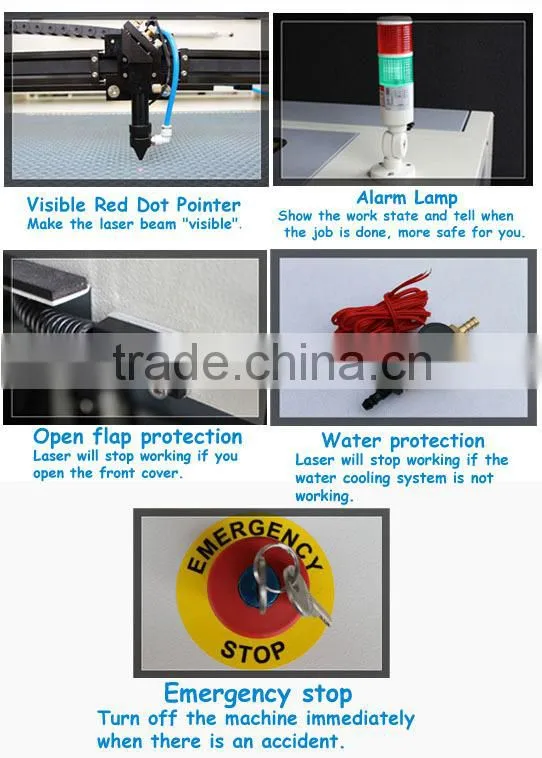

2.Safety
2.1. red dot pointer ,
2.2. alarm lamp
2.3. open flap protection
2.4. water-break protection
2.5. emergency stop
3.Easy to use

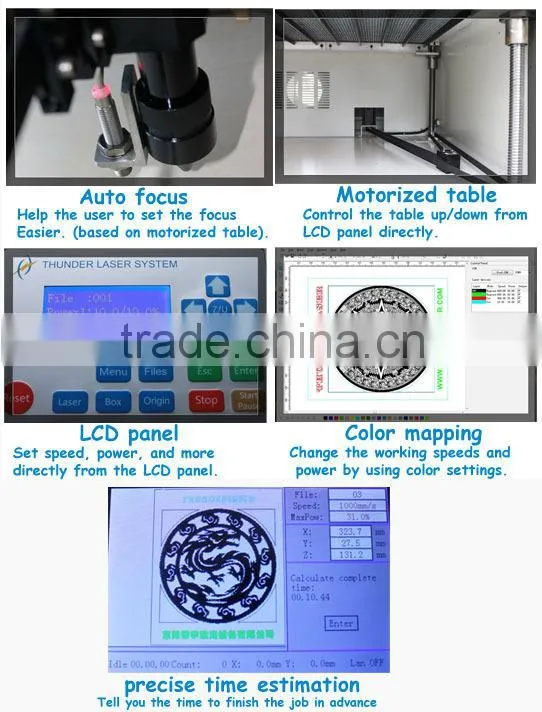

3.1. auto focus
3.2. motorized table
3.3. LCD panel
3.4. color mapping
3.5. precise time estimation(tell you the time to finish the job in advance)
4.engergy saving low noise

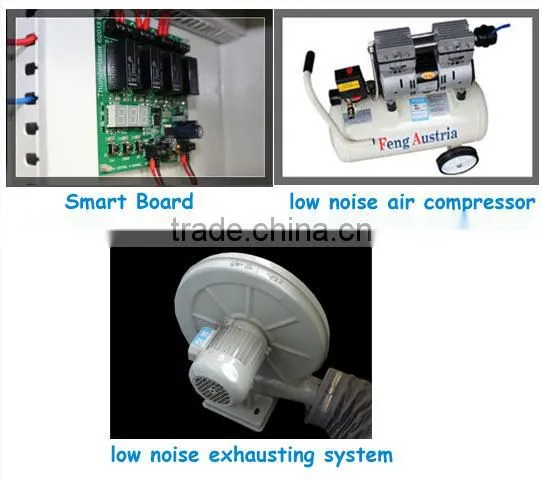

4.1 smart board
4.2 low noise air compressor( optional)
4.3 low noise exhausting system

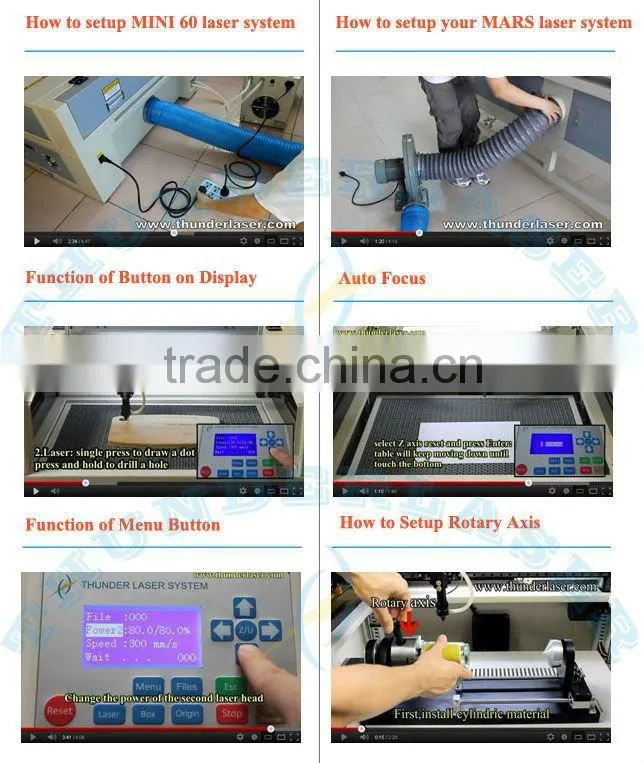

5.Video(Guiding Video and Demo Video)
for more video.please visit /video.html
6. Reliable tech support
You can merely find a laser system with such a reliable tech support, extensive user manuals, technical guiding videos, great feedbacks from customers, unique accessories (HR head, rotary axis), and reasonable price. Our customers come from every country in the word and we keep good relations, if you like, most of them are willing to show you the machine.
Product Description
1.WORKABLE MATERIALS
| Engrave | Cut | |
| Wood | √ | √ |
| Acrylic | √ | √ |
| Delrin | √ | √ |
| Cloth | √ | √ |
| Leather | √ | √ |
| Mat Board | √ | √ |
| Melamine | √ | √ |
| Paper | √ | √ |
| Mylar | √ | √ |
| Pressboard | √ | √ |
| Rubber | √ | √ |
| Wood Veneer | √ | √ |
| Fiberglass | √ | √ |
| Plastic | √ | √ |
| Cork | √ | √ |
| Corian | √ | √ |
| Twill | √ | √ |
| Anodized Aluminum | √ | |
| Painted Metals | √ | |
Tile |
√ | |
Glass |
√ | |
| Coated Metals | √ | |
| Ceramics | √ | |
| Marble | √ | |
| Stainless Steel | * | |
| Brass | * | |
| Titanium | * | |
| Bare Metal | * |
*‘if you need to mark on bare metal directly, please contact us for more information.
2.SPECIFICATION:
| Laser Tube Wattage | 80-150Watt |
| Laser Type | Sealed Co2 Glass Laser Tube |
| Cooling | Water Cooled |
| Work Area | 1600x1000(63.0” x 39.4” ) |
| (Max Part Size) Front door closed | 1700x1130mmx270mm(66.9” x 44.5” x 10.6") |
| (Max Part Size) Pass-through door | 1700x∞x30mm(66.9” x ∞” x 1.2") |
| Table Size | 1700x1130mm(66.9” x 44.5”) |
| Z Axis Height | 265mm(10.4") |
| Dimensions(WxDxH) | 2250x1500x1060mm(88.6” x 59.1” x41.7”) |
| Motion Control System | High-Speed Servo Motors |
| Maximum Speed | 1000mm/S |
| Speed and Power Control (engraving depth) |
Computer or manually controlled speed and power from0-100%.Vector color mappingsets speed and power settings using RGB color mapping. |
| Operating Modes | Optimized raster, vector, andcombined mode |
| Resolution(DPI) |
User controlled from 100 to 500DPI(standard laser head), up to 1000DPI(HR head) |
| Computer Interface | USB port |
| Compatible Operating Systems | Windows XP/2000/Vista/7 |
| Buffer Memory | 128MB Standard |
| Display Panel |
3” LCD panel showing current file, total working time, laser power, speed etc. |
| Net Weight | 220kgs(485lbs) |
| Electrical Requirements | 110 to 240 volts, 50 or 60 Hz, single phase |
| Ventilation System | Integral exhaust fan.There is |
| Standard Features | Red dot pointer, Auto focus, Motorized table |
| Optional Features | |
| High Resolution Head | Increases the resolution up to 1000DPI |
| Rotary Axis | Used to engrave on round items |
| Water Chiller | Improves the cooling of the laser tube |
3.Standard Features

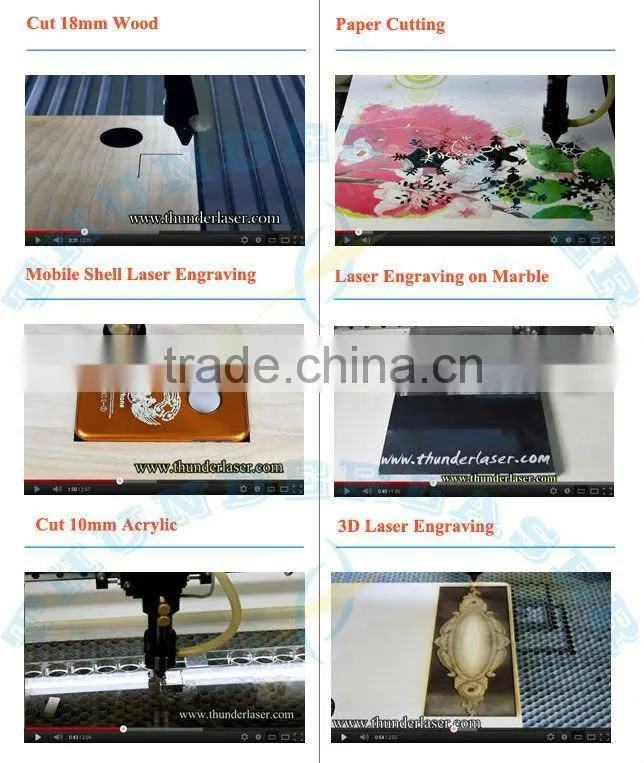

4. samples
6.STANDARD ACCESSORIES
1 x Air Pump(installed inside the machine) for Air Assist (for blowing off debris as the laser engrave or cut)
1 x Exhaust(installed inside the machine) with Tube ducts (for extracting gases from the work area)
1 x Water pump
1 x USB Cable (connecting PC and laser)
1 x DVD (including software, User manual, Guiding videos etc.)
1 x Power Cable
1 x Tool box
Options
Rotary attachment(for engraving round items)
High resolution attachment(for engraving extremely high quality photos and even 3D photos)
7. shipping
We will send out the machine by sea way to your nearest port general .
If you want to send by DHL or any other shipping way,please contact us in advance.
For shipping purpose, please tell us your phone number and detail contact information after you confirm the order.
8.payment
1.We accept paypal and TT,western union if you want to use other way,please contact us.
2.We will start preparing your order after you do the payment.
9.Warranty
The warranty for whole machine is effective 14months from the Ex-Factory Date. But for the laser tube and focus lens and the reflective mirrors, the warranty is 6months.
1. We will send you the spare parts and offer tech support for free during warranty when there is a machine fault, including the part fault.
2. User will need to send back the old parts to us within one week after receiving the new parts,(we will inform you the address for returning the old parts) And a tracking number must be provided as voucher.
3. If we don’t get the old part(or tracking number) one week after user receiving the new one, we will stop the machine warranty until we receive the old part. And user must take responsibility for his own loss during this period.
4. We will charge for replacing/repairing (including labor costs and transportation costs) when the warranty is expired.
5. User will need to buy new parts for replacing from us(or with our permission if buy from other company), If not, we won’t take any legal responsibility when there’s any tech problem or machine fault, meanwhile, we will stop the warranty.
6. If there’s any problem in future, we will provide you tech support by sending email/telephoning/skype/msn.
11. Testimonials
Thunderlaser’s customers are highest priority - from your very first contact to the point when the machine is up and running. And beyond. It is our clear goal to offer first-class laser system solutions to make our customers more profitable.
/about-us/testimonials.html

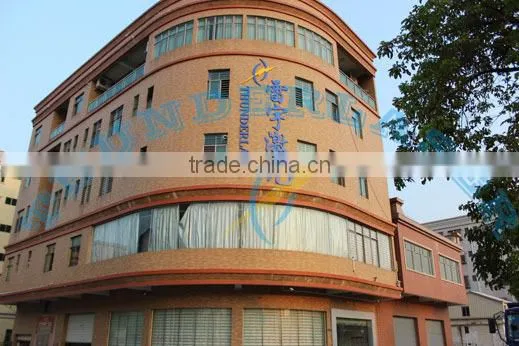

12. About thunderlaser
Thunder Laser is a professional provider of laser cutter and laser engraver. We always focus on providing good quality products and best service to the users of our laser systems.
Thunder Laser systems can work on many kinds of materials like acrylic, wood, fabric, leather, rubber,plastic,painted metals and more. Our systems can even engrave 3D relief to wood and by using the HR head, you can even mark on part of metal directly!
for more information,please visit our website
