MP-700Pa Inclined Red-oil Differential Pressure Manometer
I. Tipical applications:
1. to monitor the resistances before and after primary, medium, and high efficiency filters
2. to monitorthe differencial pressures between clean room (workshop) and no-clean room
3. to monitor the differential pressure of purified worktable
4. to monitor the negative pressure of furnace chamber
5. to monitor air leakage of air handling pipes
Manometers reduces cost, maximizes ventilation and improves animal health.
Other application include greenhouse use, the Manometer measures pressure between your film layers to know when your film is too tight or loose.
Manometers provide you early warning of any loose and locking devices or film tears before they become serious failures.

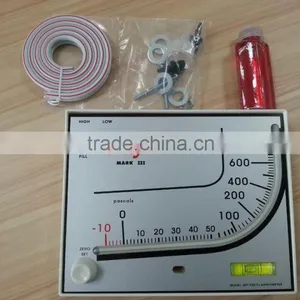

These Manometer has a curved inclined vertical tube that provides higher ranges with more easily read increments at low readings.
Handy portable and compact design allows you to move it anywhere.
• Manufactured from indestructible molded white styrene.
II. Features:
1. eady reading with red-oil indicating
2. Continuous indication with nice distinguishability
3. Light in weight and easy in installation
4. No need to replace oil in two years
III. Parameters:
1. Accuracy:+3% F S
2. Work pressure:10KPa
3. Work temperature: -10℃~+50℃
4. Medium: air and its compatible air
IV.: Type selection:
| Type | Mearing range | Outer size(mm) |
| MP700-3 | -30~0~30 | 140 X 70 X 32 |
| MP700-5 | -10~0~50 | 140 X 70 X 32 |
| MP700-6 | 0~60 | 140 X 70 X 32 |
| MP700-8 | -20~0~700 | 181 X 141 X 32 |
| MP700-8II | -10~0~700 | 181 X 141 X 32 |
