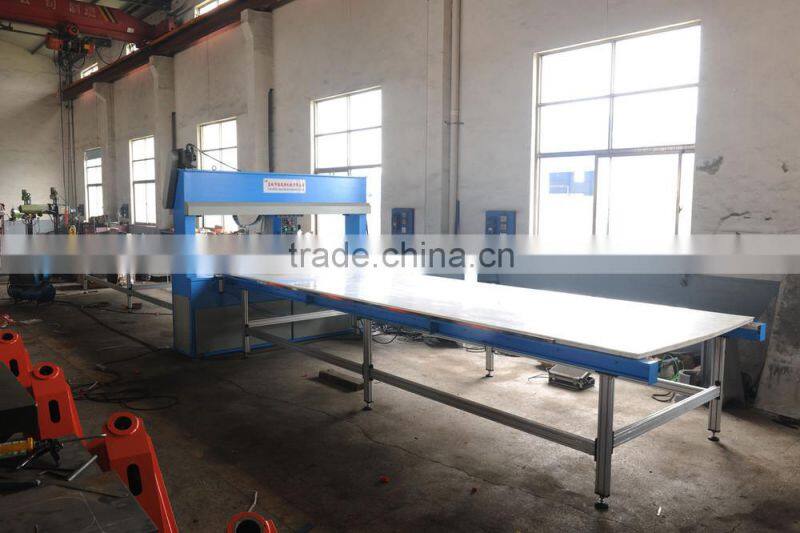

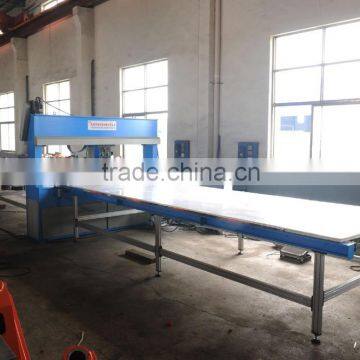

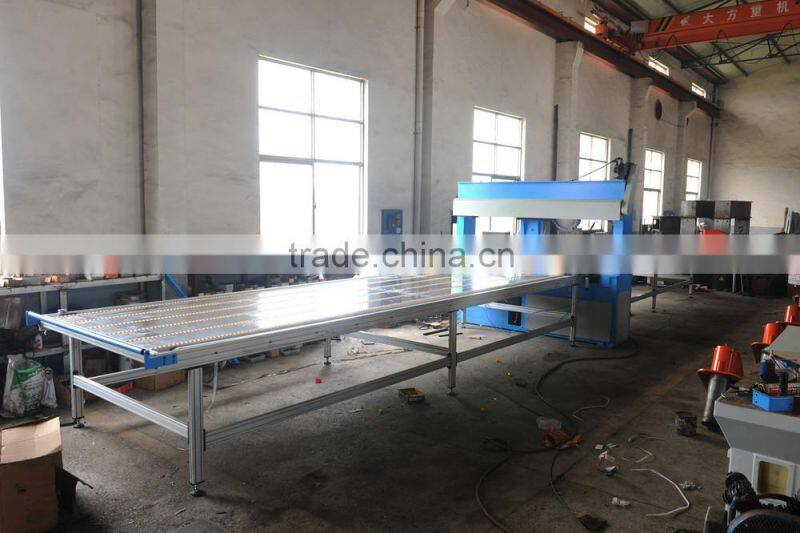

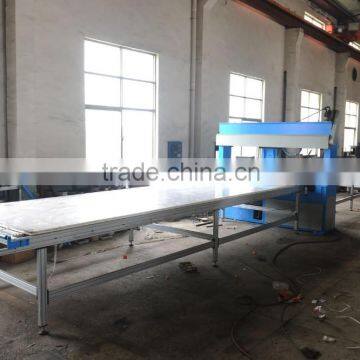

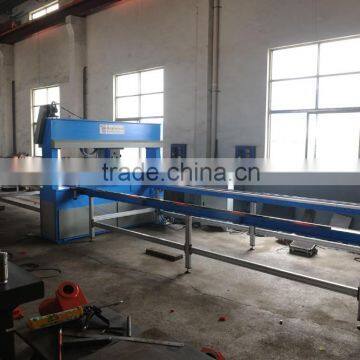

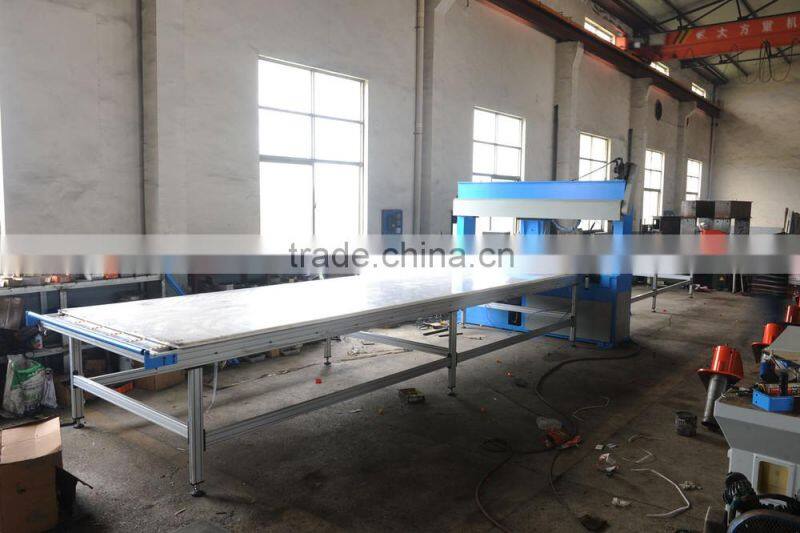

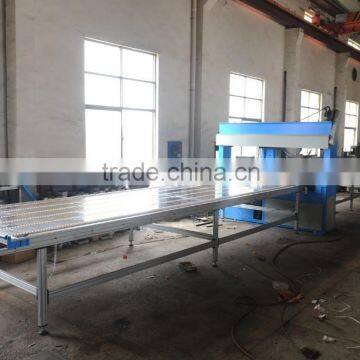

Help CenterFacial Mask Full Automatic Cutting Machine/automatic Facial Mask Machine
Related Products
-
XJ9C2-350 Inversion Type Rubber Shoe-Mould Finalizing MachineNegotiableMOQ: 1 Piece -
XJ9C2-350 Vulcanizing PressNegotiableMOQ: 1 Piece
-
250T Downward Hydraulic Four-column Plane Cutting MachineNegotiableMOQ: 1 Piece
-
200T Downward Hydraulic Four-column Plane Cutting MachineNegotiableMOQ: 1 Piece
-
150T Downward Hydraulic Four-column Plane Cutting MachineNegotiableMOQ: 1 Piece
-
Main Technical Specifications and configurations
Model |
XCLL2-250 |
Maximum cutting force |
30T |
Working table |
2000×500mm |
Size of travel head |
500×500mm |
Adjustable stroke |
5-150mm |
Distance from press head to working table |
180mm |
Cutting speed |
100mm/s |
Applicable material width |
1600mm |
Work frequency |
10-40 times/min |
Main motor power |
2.2KW |
Horizontal-moving head servo motor power |
3.0KW |
Feeding servo motor power |
0.75KW |
Hydraulic system working pressure |
≤31.5MPa |
Air source |
≤0.6MPa |
G.W |
2500kg |
II. Main configuration feature
1. This type is applicable to continuous cutting various non-metal roll or sheet materials with cutting die. It has high efficient and big output.
2. Whole unit applies PLC controller and human-machine interface operation. Horizontal moving is done by ball screw for transmission and by servo motor in driving to get high precision. Besides, the horizontal moving distance of press head can be input onto touch screen directly as per requirements.
3. Servo motor is applied to offer driving force. Ball screw rotates for fore-and-aft feeding actions. The feeding length can be input onto touch screen directly.
4.Working modes can be manual, automatic or jogging. Operators only need to pick finished products. This greatly raises the work efficiency and reduces labor intensity.
5.Main machine uses traveling head frame structure for high strength and no deformation.
6.Using fly wheel energy-storage can realize hi-pressure cutting, save power energy and don’t worry about rising oil temperature.
7.The special stroke setting unit matched cutting dies to set height of cutting blade for easy and accurate adjustments on cutting.
8.All key sealing parts are imported from German. Key hydraulic parts and electrical are imported famous brands. We use hi-quality parts for the durable service and longer work life.
9.Hi-frequency treatments are done for cylinder and piston rod of main machine to guarantee machine’s service life10. All moving parts of machine are equipped with safety barrier to protect operator.
III. Main suppliers of parts
Part Name |
Supplier |
PLC |
SIMENS |
Touch screen |
WEINVIEW TAIWAN |
Contactor |
SCHNEIDER FRANCE |
Relay |
MIND |
Button |
SIMENS |
Servo motor |
DN |
Key hydraulic parts |
CML |
Oil pump |
MARZOCCHI |
Sealing parts |
B+S |
pneumatic component |
AIRTAC |
Linear bearing |
NSK |
Ball screw |
ABBA |
Main motor |
Made in China |
