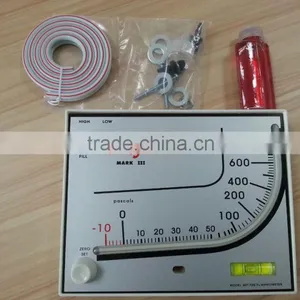

MP-700Pa Inclined Red-oil Differential Pressure Manometer
I. Tipical applications:

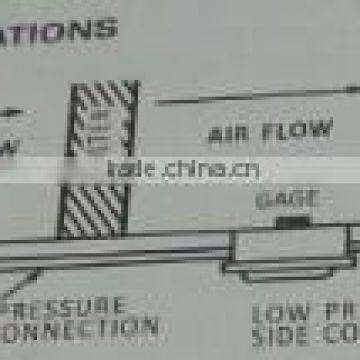

1. to monitor the resistances before and after primary, medium, and high efficiency filters
2. to monitorthe differencial pressures between clean room (workshop) and no-clean room
3. to monitor the differential pressure of purified worktable
4. to monitor the negative pressure of furnace chamber
5. to monitor air leakage of air handling pipes
II. Features:
1. eady reading with red-oil indicating
2. Continuous indication with nice distinguishability
3. Light in weight and easy in installation
4. No need to replace oil in two years
III. Parameters:
1. Accuracy:+3% F S
2. Work pressure:10KPa
3. Work temperature: -10℃~+50℃
4. Medium: air and its compatible air
IV.: Type selection:
| Type | Mearing range | Outer size(mm) |
| MP700-3 | -30~0~30 | 140 X 70 X 32 |
| MP700-5 | -10~0~50 | 140 X 70 X 32 |
| MP700-6 | 0~60 | 140 X 70 X 32 |
| MP700-8 | -20~0~700 | 181 X 141 X 32 |
| MP700-8II | -10~0~700 | 181 X 141 X 32 |
