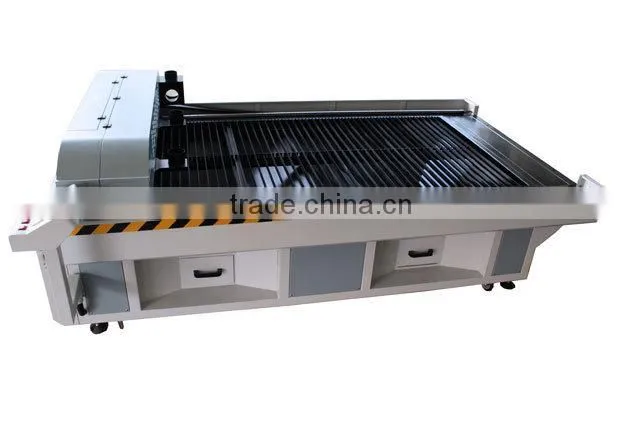

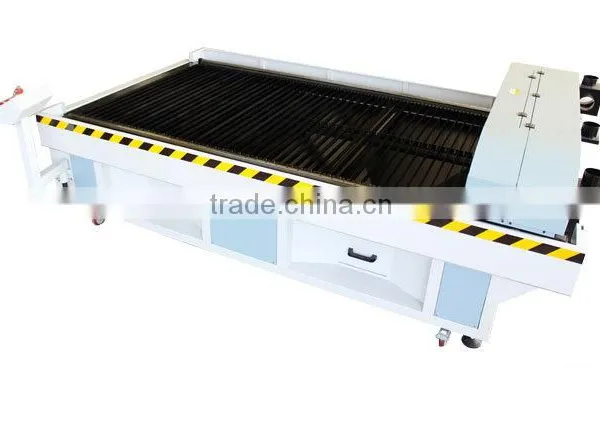

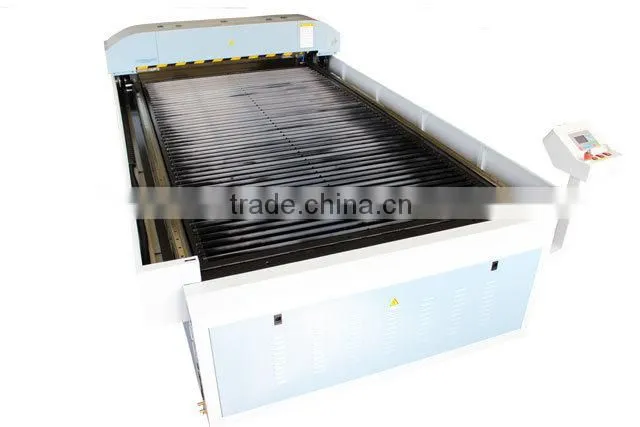

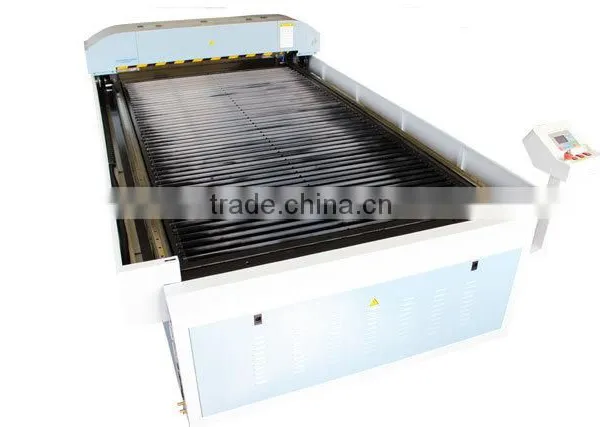

MODEL :Titan 250
Hot Sale large laser cutting machine Titan From Thunderlaser
1.WORKABLE MATERIALS
Wood,Acrylic,Glass,CoatedMetals,Ceramic,Delrin,Cloth,Leather,Marble,Plastic,Pressboard,Matte Board,Paper,Rubber,Melamine,Fiberglass,Wood,Veneer,Cork,Tile,Ceramics,Corian,Painted Metals,,tainless Steel,Titanium,Bare Metals,Brass,Anodized Aluminum
Almost all non-metal materials, and some metallic, can be engraved and/or cut by using a Thunder Laser System. Below is a selection of them. (See notation for metals)
2.SPECIFICATION
Laser Tube Wattage |
100Watt |
Laser Type |
Sealed CO2 Glass Laser Tube |
Cooling |
Water Cooled |
Work Area |
1300 X2500mm |

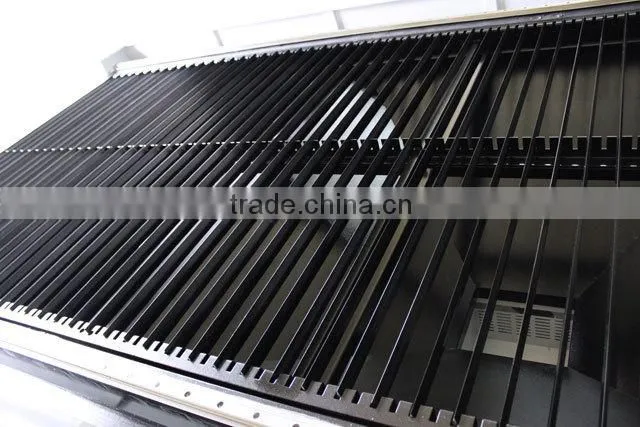

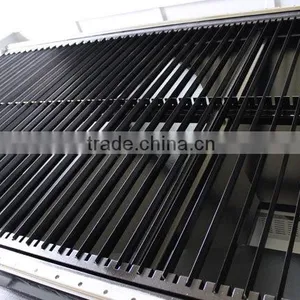

Table Size |
1360 X 2630mm |
Dimensions(WxDxH) |
3140 X 2090 X 1160mm |
Motion Control System |
High-Speed Micro Stepper Motors |
Maximum Speed |
500mm/S |
|
Speed and Power Control (engraving depth) |
Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping. |
Resolution(DPI) |
User controlled from 100 to 500DPI |
Computer Interface |
USB port |
Compatible Operating Systems |
Windows XP/Vista/7 |
Buffer Memory |
48MB Standard |

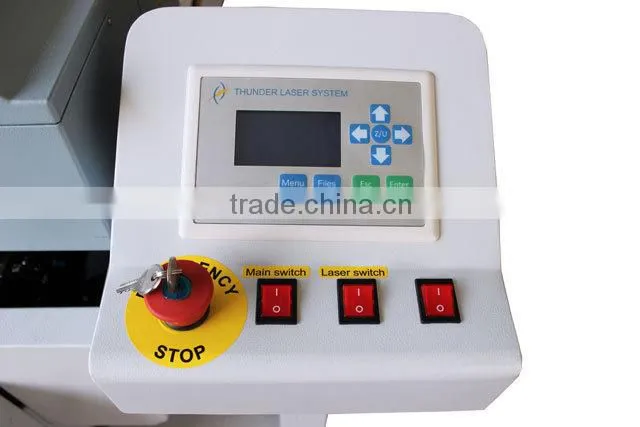

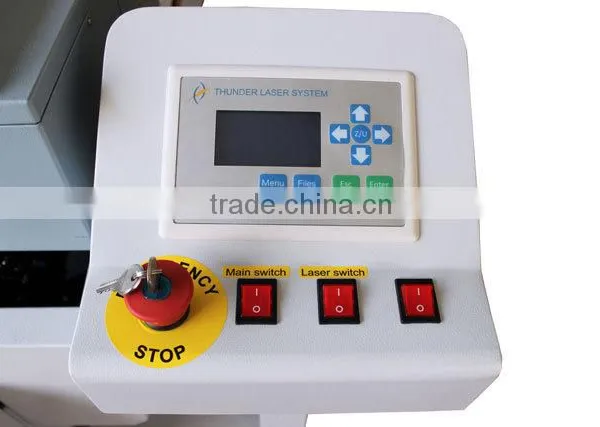

Display Panel |
3” LCD panel showing current file, total working time, laser power, speed etc. |
Net Weight |
450KG |
Electrical Requirements |
110 to 240 volts, 50 or 60 Hz, single phase |
Ventilation System |
Integral exhaust fan. There are 3 output ports, 5.7" (145 mm) in diameter in the rear of the case. |
|
Standard Features |
Air Assist, Water Pump ,Exhaust fan, 4" Focus Lens, Easily Adjustable Home Position, LCD Display,3D Engraving ,”No water” Protection, Emergency Stop |
Optional Features |
|
Water Chiller |
Improves the cooling of the laser tube |
3.STANDARD ACCESSORIES

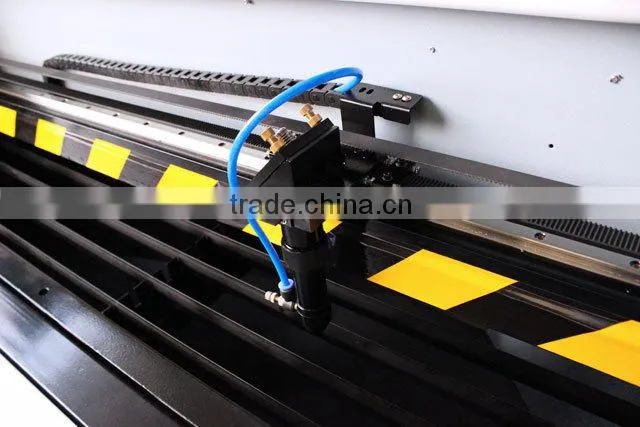

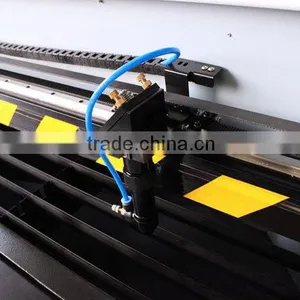

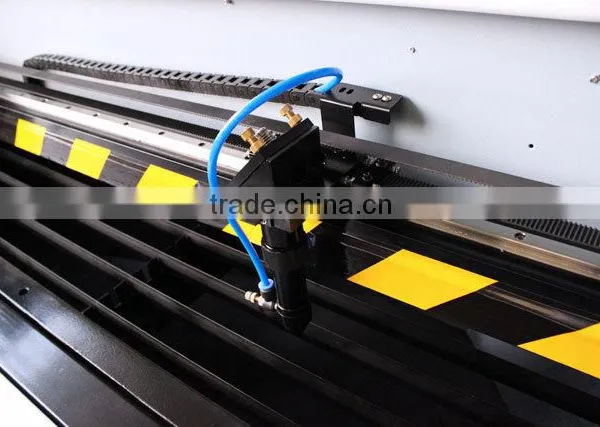

1 x Air Pump(installed inside the machine) for Air Assist (for blowing off debris as the laser engrave or cut)
1 x Exhaust(installed inside the machine) with Tube ducts (for extracting gases from the work area)
1 x Water pump
1 x USB Cable (connecting PC and laser)
1 x DVD (including software, User manual, Guiding videos etc.)
1 x Power Cable
1 x Tool box
4.Standard Features
5. samples
6. Video (Guiding Video and Demo Video)
For more video, please visit /video.html
7.Warranty:
1) The warranty of machine is 14 months
2) The warranty of the lens and laser tube is 6 months.
3) The warranty is dated from Ex Factory Date.
4) During warranty, we will send the parts to you for repairing/replacing.
5) When the warranty is over, we will charge for replacing.
6) If there's any problem in future, we will give you tech support by sending email/telephone/skype
and we will send you tech documents to fix the problems.
7) The warranty is only valid for for customers who buy machine in the year of 2014.
8. frequently asked questions
Q:Does your laser run from a laptop or Desktop PC?
A:both ok, as long as your operating system is window 2000 or XP or vista or win
Q:Does your laser work from printer in corel draw/autocad?
A:our laser cutter can work in coreldraw and autocad directly.
and it connects to PC by using a USB cable.
Q:What files is the software compatible with?
A:JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
Q:what's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1.the length of the tube,the longer the tube is, the more powerful.
2.the diameter of the tube,the bigger the tube is, the more powerful.
9. Testimonials
Thunderlaser’s customers are highest priority - from your very first contact to the point when the machine is up and running. And beyond. It is our clear goal to offer first-class laser system solutions to make our customers more profitable.
You can merely find a laser system with such a reliable tech support, extensive user manuals, technical guiding videos, great feedbacks from customers, unique accessories (HR head, rotary axis), and reasonable price. Our customers come from every country in the word and we keep good relations, if you like, most of them are willing to show you the machine.
you can visit this link about testimonials contents to understand our machines and services better
/about-us/testimonials.html
