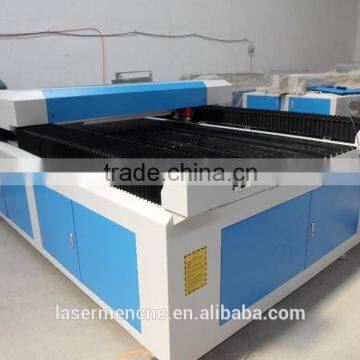

LM1325 China factory 1mm carbon steel laser cutting machine
>> Technical Parameters >>
Machine model: |
LM-1325 carbon steel laser cutting machine |
Laser type: |
Sealed CO2 laser tube, wavelength: 10.64μm |
Laser power: |
150W / 180W |
Cooling mode: |
Circulating water cooling |
Laser power control: |
0-100% software control |
Control system: |
DSP offline control system |
Max. engraving speed: |
60000mm/min |
Max cutting speed: |
50000mm/min |
Repetition accuracy: |
0.01mm |
Min. letter: |
Chinese: 1.5mm; English: 1mm |
Table size: |
1300x2500mm |
Working voltage: |
110V/220V,50~60Hz |
Working conditions: |
temperature: 0-45°C, humidity: 5%-95% |
Control software language: |
English / Chinese |
File formats: |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc |
>> Machine Features >>
1) 150w/180w CO2 laser tube, able to engrave and cut most metal and non-metal materials.
2) Water cooling system (CW-5200) automatically controls the water temperature, cools and protects the laser tube.

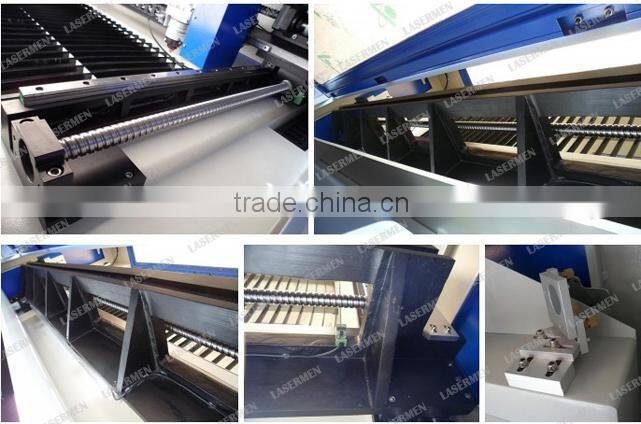

3) Ball screws transmission driven by Japan Panasonic servo motors, greatly increased the machine cutting precision.
4) Air pump, protects the material being cut from fire and helps to get better effect.
If cut steel, oxygen is necessary.
5) Exhaust fan and pipes, remove dust and smoke to protect optical parts and the user.
6) Aluminum blade table, holds hard sheet materials. Optional tables: honeycomb table, up/down lifting table.
7) Leetro USB controller system. Machine is able to work without connecting to a computer.
8) Imported lens and mirrors, brings high cutting precision.
9) Machine X and Y axis both are cast aluminum structure.
10) Linear rails from Taiwan, more stable and precise.
11) English Lasercut 5.3 software.
12) Options: red dot, up/down lifting table, honeycomb table, rotary, air compressor, etc.
>> Equipment coming together with machine >>
1. Industrial Cooling System
Constant water temperature ensures laser tube a longer service time and high stability
2. Exhaust Fan
Exhaust fan removes dust and smoke to protect the optical parts and the users.
3. Electromagnetic air pump
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.
>> Options >>
USA LASERMECH metal sensor with Auto focusing system.
When cutting metal, the laser head will adjust its height automatically along with uneven metal surface, so that the focal length keeps the same all the time, and cutting effect is better.
>> Applicable Materials >>
Materials can be engraved:
acrylic, wood, cloth, leather, MDF, bamboo, rubber, glass, crystal, granite, marble, tile, ceramic, paper, magic bean, painted metal, etc.
Materials can be cut:
1.5mm stainless steel, iron, carbon steel, galvanized metal, acrylic, wood, cloth, leather, MDF, plywood, bamboo, rubber, asbestos rubber, paper, PVC, foam, EVA, plastic, etc.

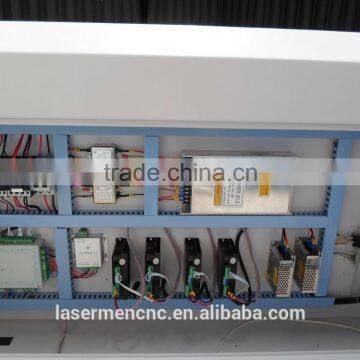

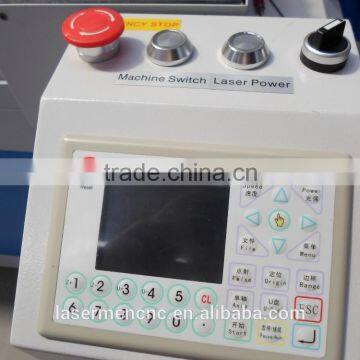

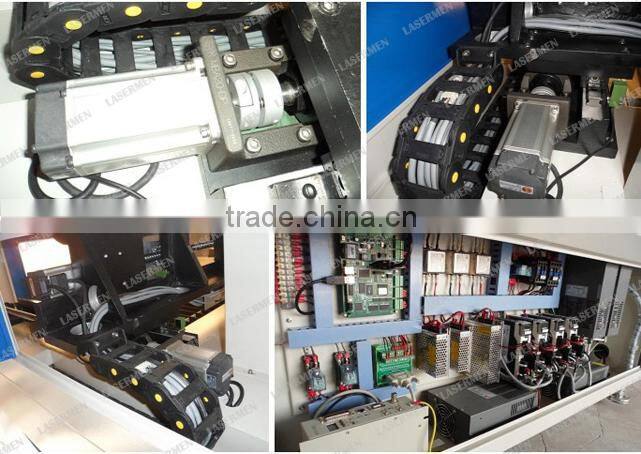

>> Machine Details >>

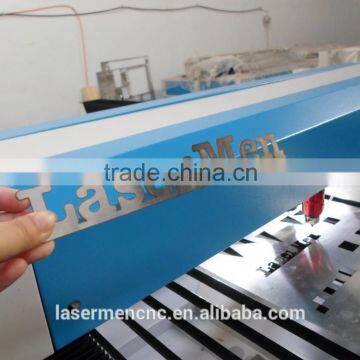

>> Sample Pictures >>
>> About Us >>
Jinan LaserMen CNC Equipment Co.,Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of laser engraving, cutting, marking machines.
We possess high efficient cooperated technology and service team, high coordinated producing and service network. Our machines are CE, FDA certified. Our company strictly comply with ISO9001:2008 international quality management system.
Our company will continue its efforts to make greater achievements.
>> Contact Information >>
We are sincerely looking for agents and distributors all over the world!!!
