Stainless Steel Rings PVD Vacuum Coating Titanium Equipment/machine/line
US$ 55,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
UBU
Model Number:
LZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Imitation Gold 14K 18K 24K Vacuum Coating Machine/equipment for JewelryNegotiableMOQ: 1 Set -
Vacuum Evaporation Coating Machine for Ceramics ProductsUS$ 30,000 - 200,000MOQ: 1 Set
-
Vacuum Evaporation Coating Machine for GlassUS$ 30,000 - 200,000MOQ: 1 Set
-
Vacuum PVD Coating Plastic Products MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Evaporators/ Aluminum Evaporate / Plastic Coating / Vacuum Evaporation Equipment / Plasma Coating MachineUS$ 45,000 - 50,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
UBU
Model Number
LZ
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

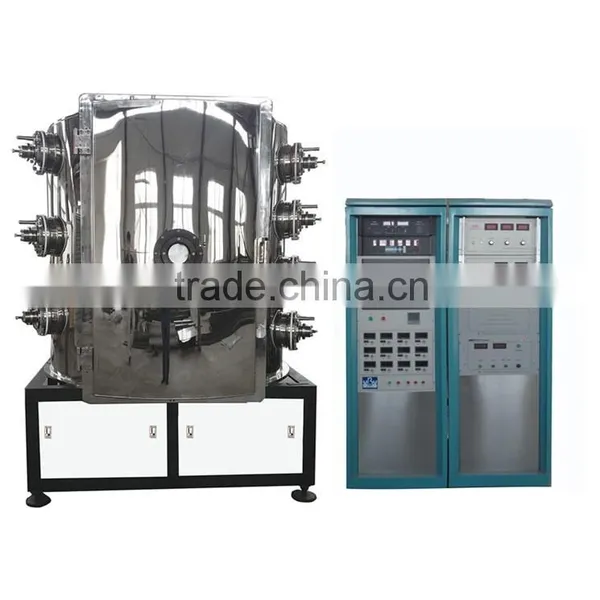

1. Vacuum multi-arc ion coating machine is a high-tech environmental friendly product for metal, jewellery, glass and ceramic products surface coating.
2.After coating by this machine can improve the workpieces’ hardness, wear resistance, corrosion resistance etc..
3.The machine itself has many advantages such as quick pumping speed, stable vacuum environment, large load capacity and uniform coating film.
4.Application industry including the watch industry (strap, case, dial), glass ceramics industry (glass tableware, ceramic crafts), hardware industry (sanitary ware, door knobs, locks), architecture industry (stainless steel plate, stair railings, columns), precision mold industry (standard punch mold, forming mold), tools industry (drill bits, carbide cutters, broaches, shaving heads), automotive industry (piston, piston rings, alloy wheels) as well as pens and glasses etc..
It can coat TiN, TiCN, CrN, TiALN, TiNbu, TiCrN, ZrN, and various kinds of diamonds film (DLC).
5.The film makes the product’s surface much more beautiful and wearable
Finished products effect :
| Model | LZ-1000 | LZ-1200 | LZ-1300 | LZ-2000 | LZ-2000 | LZ-2000 |
| Vacuum Chamber Size(mm) | ø1000×H1100mm | ø1200×H1300m | ø1300×H150000mm | ø2000×H2100mm | ø2000×H3500mm | ø2000×H4000mm |
| Application | Hardware industry, sanitary appliance industry, decoration industry, household appliances industry | |||||
| Faucet, stair handrail, household appliances, LOGO signs, stainless steel frame, stainless steel parts and plate, etc... | ||||||
| Coating Film Type | Ti-Gold, Rose Gold, Champagne Gold, Japanese Gold, Bright Silver, Rainbow, Jewelry Blue, Rose Red, Black, etc. | |||||

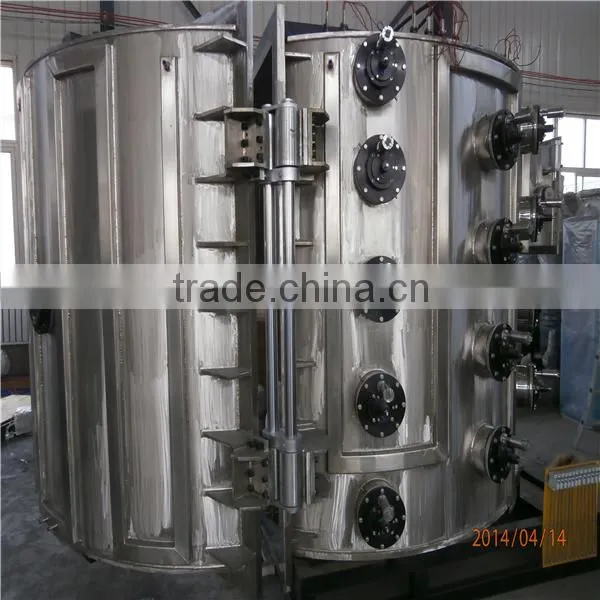

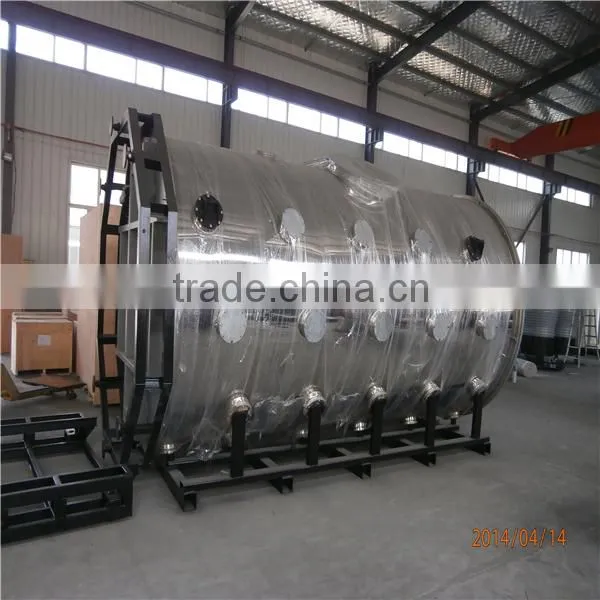

| Vacuum Chamber | Vertical door, hanging or horizontal cart structure, equip with pumping system and water cooling system | |||||
| Vacuum System | Sustaining Pump + Mechanical Pump + Roots Pump + Diffusion Pump or Molecule Pump(specific model according to customers' requirements) |
|||||
| Vacuum Measurement System | 1 set pirani, 1 set cold cathode, 1 set diaphragm gauge | |||||
| Supply Type | DC power, MF power, pulse power(bias power, arc power) | |||||
| Ultimate Pressure | Non-loading cold state 1.0- 6.0×10-4Pa | |||||
| Arc Source | 8-10 set | 8-12 set | 12-16 set | 18-26 set | 22-28 set | 22-36 set |
| 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | 200A-300A | |
| Bias Power Supply | 40KW/1 set | 40KW/1 set | 40KW/1 set | 50KW/1 set | 50KW/1 set | 60KW/1 set |
| Magnetron Power Supply | 1-2 set | 1-2 set | 2-3 set | 2-3 set | 2-3 set | 2-3set |
| Rotation | Multi-axis planetary with frequency control(can be controlled and adjusted) | |||||
| Baking Temperature | Normal temperature - 450℃ can be controlled and adjusted(PID temperature control) | |||||
| Gas | 3 or 4 ways working gas flow control and display system matched with auto gas adding system | |||||
| Ar, N2, O2, C2H2,etc. | ||||||
| Cooling Method | Water cooling circulation, equip with industrial cooling tower or industrial water chiller(refrigerating machine) or cryogenic system.(customers provide) |
|||||
| Controlling Method | Manual, half-auto, auto, touch screen operation, PLC or computer controlled | |||||
| Supply Index | Air Pressure 0.5-0.8MPa, Water Temperature≤25℃,Water Pressure≥0.2MPa | |||||
| Warning | Alarming system will work when hydropenia, over-voltage, circuit break such abnormal situation happens and carry out related protect solution and electric interlock. |
|||||
| Total Power | 60~80KW | 60~90KW | 90~120KW | 165~185KW | 185~200KW | 200KW |
| Output Frequency | Voltage 380V,Frequency 50Hz(equip as customers' national electricity standard) | |||||
| Occupation Space | 15~50m² | 15~50m² | 25~55m² | 25~55m² | 35~55m² | 35~55m² |
| Remark | Design and produce special machine according to customers' require, can add magnetron sputtering target,MF twins target,etc. | |||||
Packaging & Shipping

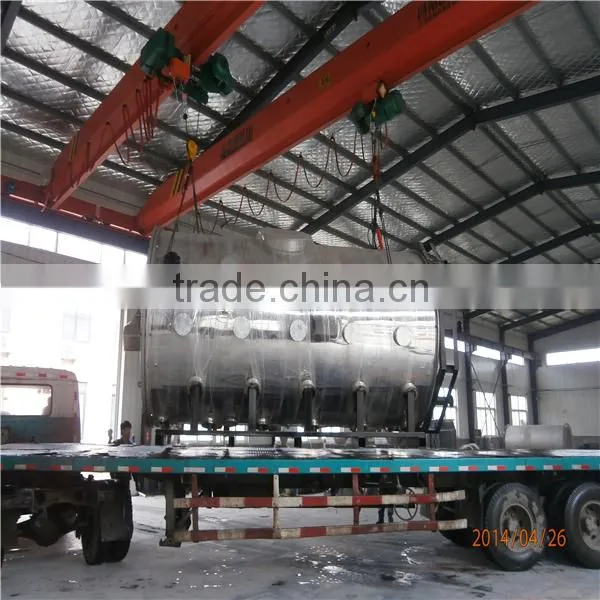

High quality strong Plywood cases packaging and transportation by sea.
