Evaporators/ Aluminum Evaporate / Plastic Coating / Vacuum Evaporation Equipment / Plasma Coating Machine
US$ 45,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Coating Production Line
Substrate:
Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastics Coating by Used/new Evaporation Coating MachineUS$ 20,000 - 50,000MOQ: 1 Set -
Vacuum Evaporation Plant / Acrylic Sheet Coated Mirror Machine / Used Vacuum Coating Machine / Second Hand Coating MachineUS$ 40,000 - 45,000MOQ: 1 Set
-
Copper Bronze Antique Copper Coating Machine / Copper Coating Line / Yellow Copper Evaporation Machine / Metal Film CoatingUS$ 45,000 - 50,000MOQ: 1 Set
-
Metal Coating Machinery / Plastic Coating Machinery / Aluminum Coating Machinery / Copper Coating Machinery / Evaporation CoatUS$ 45,000 - 50,000MOQ: 1 Set
-
Evaporate Machine / Vacuum Evaporate / Aluminum Evaporation / Metal Evaporation / Vacuum Machine / Vacuum Coating MachineUS$ 45,000 - 50,000MOQ: 1 Set
Condition
New
Type
Coating Production Line
Substrate
Steel
Coating
Vacuum Coating
Place of Origin
Shandong, China
Brand Name
UBU
Model Number
ZF series
Voltage
380V, 50Hz. Or according to your local voltage
Power(W)
30-50kw
Dimension(L*W*H)
customized
Weight
2-3T
Certification
CE, AS
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Commodity Name
Vacuum evaporation coating machine
Product Description
Vacuum evaporation coating machine is mainly used in coating plastics and ceramics products with metal surface film (aluminum, chrome, stainless steel and other metals), colorful film and imitation gold film etc., then can obtain bright, beautiful and inexpensive plastic and ceramic surface metalization products. In addition, it is widely used in lamps, furniture, toys, bottle caps, female shoes heel, car mirrors, crafts, jewelry, watches, cell phones, DVD, MP3, PDA outer covering, cosmetic shell and Christmas gifts etc. industries. Machinable substrate include ABS, PS, PP, PC, PVC, nylon, metal, glass, ceramics and TPU materials.
| Type | ZF-1000 | ZF-1200 | ZF-1400 | ZF-1600 | ZF-1800 | ZF-2000 |
| Vacuum chamber size | Φ1000×H1200 | Φ1200×H1500 | Φ1400×H1600 | Φ1600×H1800 | Φ1800×H2000 | Φ2000×H2200 |
| Power supply | Evaporation power supply | |||||
| Vacuum chamber material | SUS304 superior stainless steel or superior carbon steel | |||||
| Vacuum chamber structure | Vertical single/double door, rear vacuum acquisition system. | |||||
| Ultimate vacuum | 8.0×10-4Pa, leak rate1h≤0.6Pa |
|||||
| Pumping speed | From 1 atm to 6.7×10-3Pa take 8~15min (room temperature, clean and unload) | |||||
| Evaporation power | 10KW | 15KW | 20KW | 20KW | 25KW | 35KW |
| Total power | 80KW | 100KW | 110KW | 120KW | 140KW | 160KW |
| Vacuum system | Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted by requested) | |||||
| Pressure Measurement | Automatic digital compound vacuum gauge | |||||
| Inlet system | Automatic flow controller | |||||
| Shelves rotation system | Stepless frequency control | |||||
| Cooling system | Water-cooling system. Cooling water tower, industrial cooling water machine or deep water cooling system is needed to purchase separately ( or supplied by user) . | |||||
| Control mode | Manual or PLC + touch screen, can achieve automatic, manual and semi-automatic control | |||||
| Alarm and protection | Water pressure alarm, air pressure alarm, over current protection, execution on related protective measures and electrical interlock systems. | |||||
| Other technical data | Water pressure≥0.2MPa, water temperature≤25℃, air pressure 0.5-0.8MPa | |||||
| Remarks |
Specific size can be designed by user’s requested. Magnetron sputtering target can be equipped. Customizable vacuum chamber size range: Φ500-3000mm, H: 500-3000mm. |
|||||

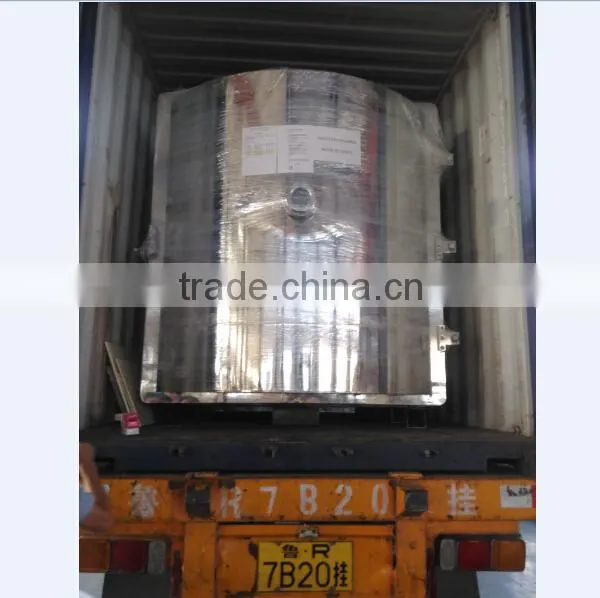

Packaging & Shipping

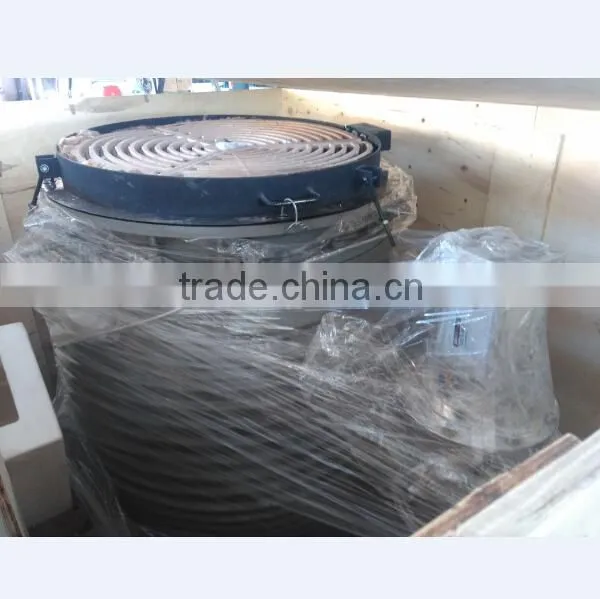

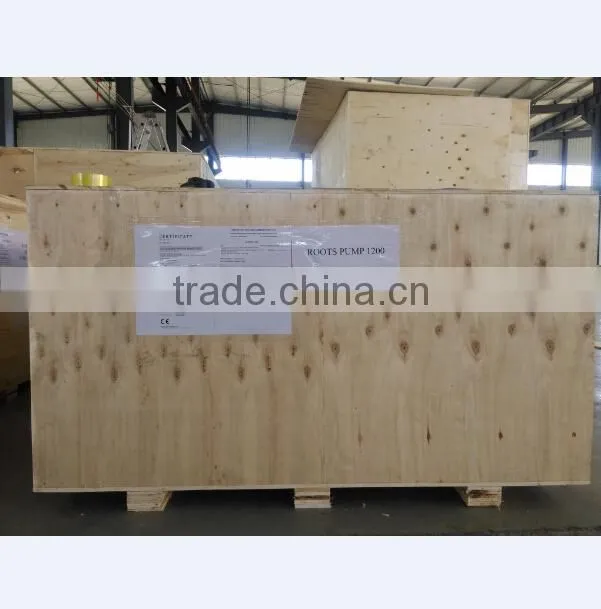

Wooden cases
Warranty
12 months after the machine reach to customer site.
Commodity Pictures
Contact
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2009
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
