Home > Products > Customized slip rings > Through Hole Slip Ring Bore Size 38.1mm(1.5'') 2-56

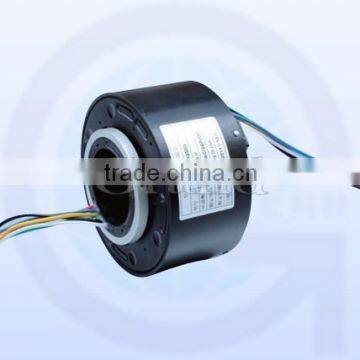

Through Hole Slip Ring Bore Size 38.1mm(1.5'') 2-56
- 500 Unit / Units per Month
- Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Fiber Optical Slip Ring Combination
-
Electrical and RF combination slip ring
-
Electrical and Pneumatic hydraulics hybrid combination slip ring
-
High Current Series specialized slip ring
-
Double deck slip ring design marine and medical equipment alternator slip ring
-
Double deck slip ring design marine and medical equipment electric swivel slip ring
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Grand, Grand | |
| Model Number | Big Bore Series |
Product Description
Through Hole Slip Ring Bore Size 38.1mm(1.5'') 2-56
Customized Slip Ring
We strive to meet the needs of our customers. If an assembly from our standard line does not fit your requirements, ourR&D team will work with you to design a slip ring to meet your exact demands.
Technology data
| Capsule Slip Ring) Series | ||||||
| Mastering the key technique of design and manufacture,holding independence the intellectual property | ||||||
| Suffice the un-limit revolving video and the digital signals transmission of 360 degree completely | ||||||
| The integrated produce standard may meet the demand of client | ||||||
| Longstanding using life | ||||||
| Can be customised for Customer need the produce | ||||||
| Electrical Data: | ||||||
| Voltage: | 240VDC-240VAC | |||||
| Continous Curent(amps): | 2A/ring | |||||
| Lead size: | AWG28 Colour coded,FPE insulated lead wires | |||||
| Standard lead lenghts: | 250mm(other lenghts on request) | |||||
| High pot: | 500VAC60Hz | |||||
| Insulation Resistance: | 200MΩ/500VDC | |||||
| number of circuits | 6circuits | |||||
| Mechanical data : | ||||||
| Operate Speed: | 250rpm | |||||
| Temperature range: | -20-80 | |||||
| Contact material surface: | Gold-gold | |||||
| The stainless steel bearing: | The little ball double density seals bearing | |||||
Grand customized slip rings would reach below special requirements:
Current capabilities from nanoamps up to 1,000Amps
Voltage capabilities from microvolts up to 3KV
High speed up to 5,000 rpm
High temperature up to 400°C
Low temperature up to -60°C(separate slip rings up to -150°C)
Long life up to 200,000,000cycles 200million
Sealing up to IP67@1Mpa .
Digital data transfer up to 600 Mbits/s
Big bore size up to 1,000mm
Multi-way up to 500 ways
Combine with electrical, signal, gas and liquid or fiber optical transmission.
Application
| CCTV pan/tilt cammeras and pedestals | ||||||
| Robots and downhole inspection equipment | ||||||
| Test and measuring equipment | ||||||
| Manufactruing and process control equipment | ||||||
| Computer peripherals | ||||||
| Display equipment Medical equipment |
Pack in carton or wooden case
BY DHL, FedEx, UPS or TNT.......
We strive to meet the needs of our customers. If an assembly from above does not fit your requirements, our R&D team will work with you to design a slip ring to meet your exact demands.
Two years quality guarantee.
Please provide us below information, we will provide the transmission solution according to your demands:
No. of Circuit (Power & Signal)
Signal details if transfer signal
Rated Current & Voltage per circuit
Working Speed
Working Temperature
Operating Environment
The way of Connecting
Dimension if have limitation
Protection Level
Application
