Original Manufacturer 58mm Thermal Printer With RS232 and RJ45 Port--HFE629
US$ 1 - 45.29
MOQ: 100 Sets
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Dot-matrix
Style:
Black And White
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Barcode Reader Module Could Embedded in the Equipment-----Gc002US$ 1 - 100MOQ: 1 Set -
High Quality Oem 2d Barcode Reader Module With Low Comsupsion-----Gc002US$ 1 - 100MOQ: 1 Set
-
High Quality Oem 2d Barcode Scanner Module With Low Comsupsion-----Gc002US$ 1 - 100MOQ: 1 Set
-
Lowest Price 58mm Thermal Printer With Serial Interface 90mm/s Thermal Printer for SaleUS$ 1 - 29.9MOQ: 100 Sets
-
Newest!!! Cheap $19/set Receipt Thermal Printer With Cashier Drawer Port to Help You Manage Your BusinessUS$ 1 - 29.9MOQ: 100 Sets
Products Status
Stock
Type
Dot-matrix
Style
Black And White
Use
Barcode Printer
Interface Type
Other, Serial port RS232
Max Paper Size
58mm
Black Print Speed
60mm/s
Color Print Speed
48mm/s
Max. Resolution
8 dots/mm
Brand Name
HAODEXIN
Model Number
HFE-629
Place of Origin
Guangdong, China

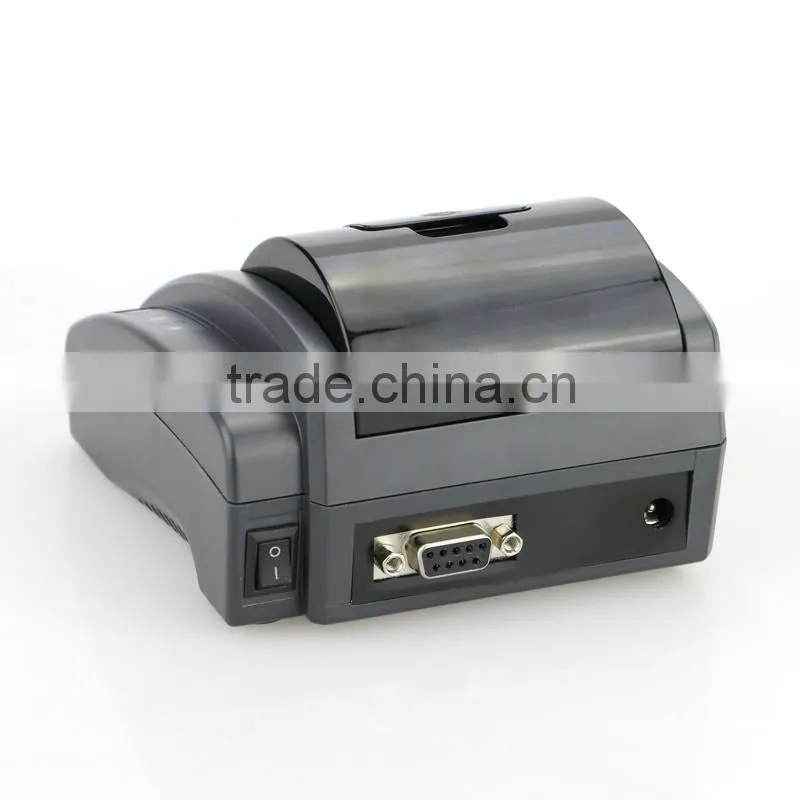

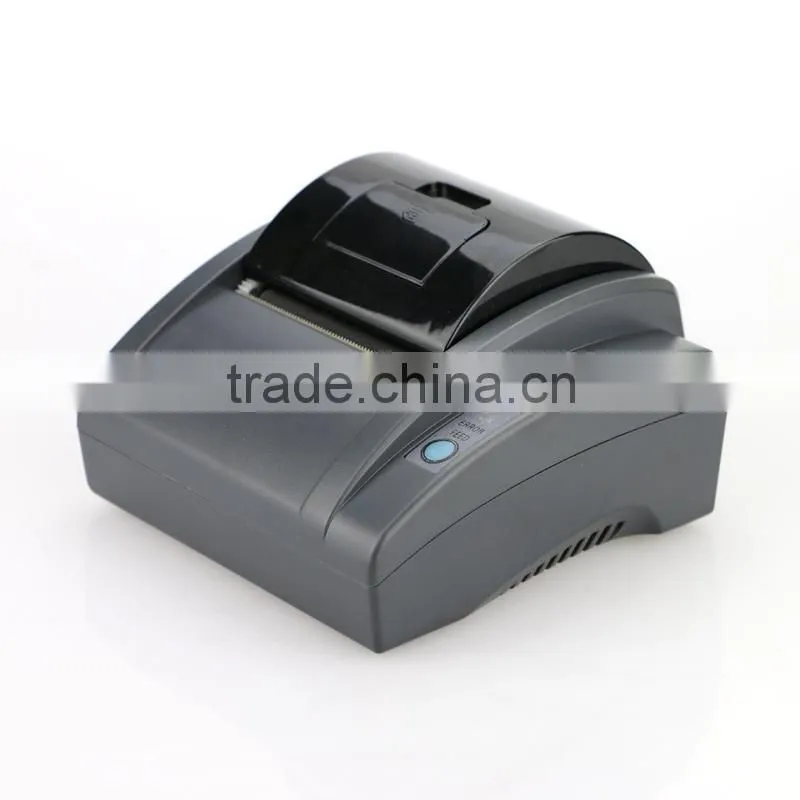

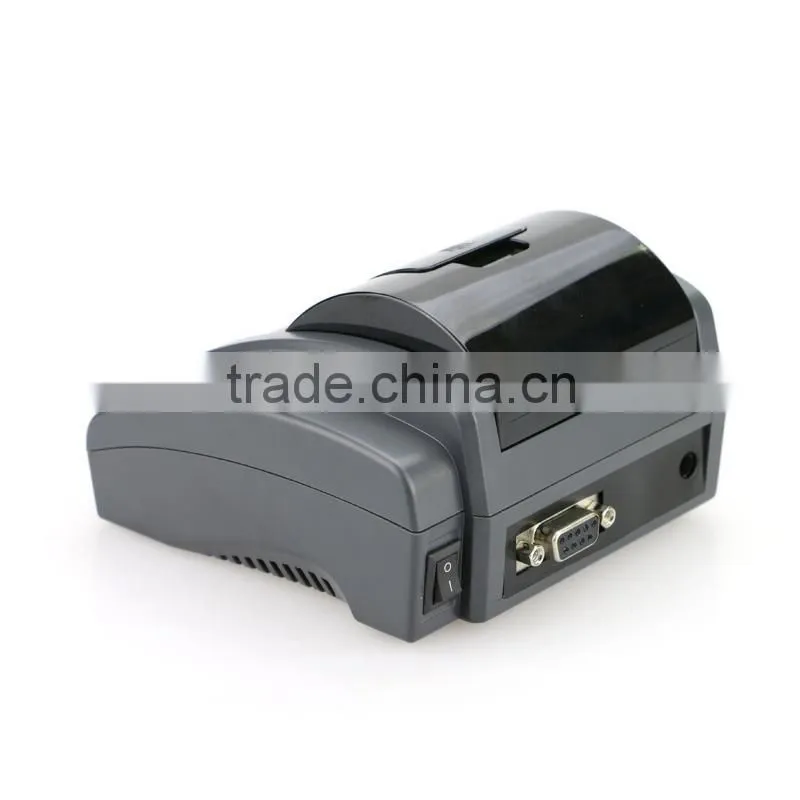

Original manufacturer 58mm thermal printer with RS232 and RJ45 port--HFE629
l Application
- Medical equipment
- Fire protection warning
- Measuring equipment
- Power equipment
- Electric weighing instrument
- Bill&Ticket printing
- Invoice printing
l Brief advantage
1.Ultra small&Ultra thin.
2.Totally enclosed compact design.
3.The appearance design is fashion and pragmatic.
4.Could be easily embedded into the customer’s system device.
5.Built-in the original import print head,low voltage,low power design.
Product Description
| Printing performance | Printing Method | Thermal line printing |
| Dots per line | 384 dots/line | |
| Resolution | 8dots/mm | |
| Effective print width | 48mm | |
| Printing speed | 60mm/s(Max) | |
| Feed width | 0.125mm | |
|
Character/Chinese character/picture/ barcode |
Character per line | 32/line |
| Chinese Character per line | 24 dot matrix:16,16 dots matrix:12(enlarge 1 time) | |
| Standard ASCII code dot matrix | 24 dots matrix:12*24,16 dots matrix:8*16 | |
| Standard ASCII size(W*Hmm) | 24 dots matrix:1.5*3, 16 dot matrix:2*4 | |
| Printing Character | international standard 2312-80 simplifide style font library | |
| Chinese Character dot matrix | 24*24,16*16,12*12 dot matrix | |
| Chinese Character size | 24dots matrix:3*3,16 dot matrix:4*4(enlarge 1 times) | |
| Graph/Code | support | |
| Detection mode | Paper out testing | Yes |
| Overheating test&protection | Yes | |

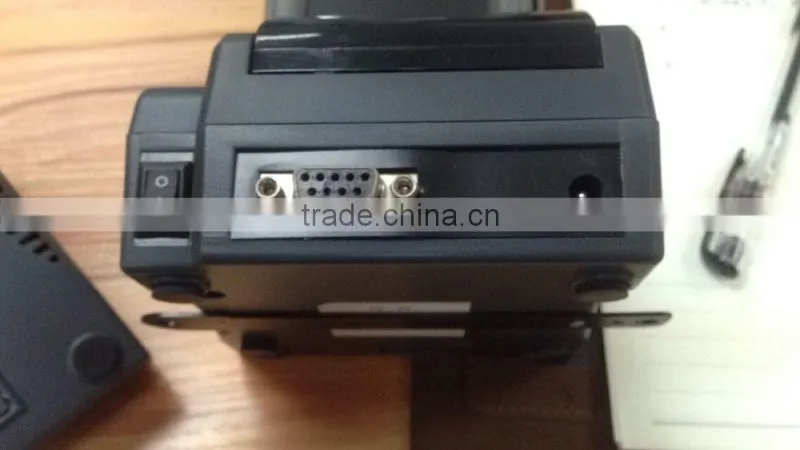

| Control system | Out interface | Serial port RS232 Baud rate:9600bps |
| Bumper | 64K | |
| Printing command | ESC/P printing command,IBM/EPSON ESP/compatible | |
| Printing drive | WIN2000/NT/XP/WIN7/WINCE serial port | |
| Power supply | Operation voltage | DC9V-39V |
| Average current | 1A~1.5A | |
| Peak point current | 2A~3A | |
| MCBF | Printer head life | 100 millions pause/50Km printing length |
| Printing Paper | Paper type | common thermal paper |
| Printing paper width | 58mm | |
| Paper thickness | 65+/-5mm | |
| Scroll size | 50mm | |

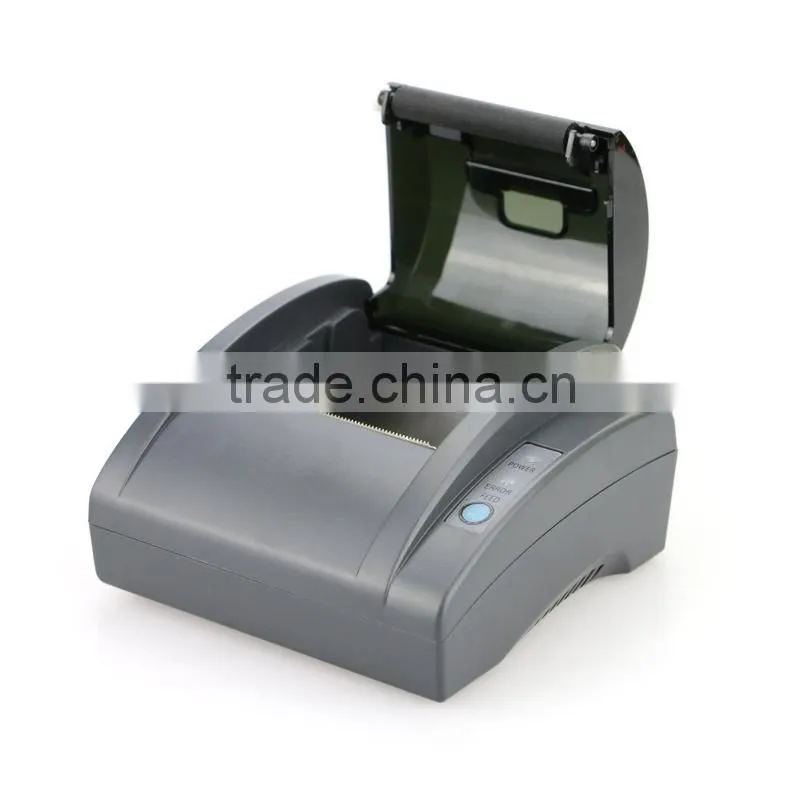

| Paper installation method | Easy to load paper,flip cover for opening | |
| Cutting paper method | Tear(Tooth shape untying) | |
| Physical property | Operating temperature | 0~55 degree |
| Storage temperature | -25- 75 degree | |
| Operating humdity(%RH) | 10~90RH% | |
| Weight(gross weight) | 280g(include paper) | |
| Net weight | 230g(without paper) | |
| Size | 108mm*103mm*68mm compact design) |
Packaging
Packaging dimension:208*178*78mm
Weight:1.6kg
Shipping
Ship our products via DHL,EMS,UPS,TNT,FedEx(door to door)
Normally,it will take 3-7 working days for us to ship the goods to the destination,some remote place will need 1-3 days more
Our Service
1.All the inquiry will be replied in 8 hours
2.Provide 2 years warranty
3.Provide technical support during its life time
4.Choose the most suitable shipment way for you
5.Replace the broken parts with new parts in the next order
6.Track the order until you receive the goods

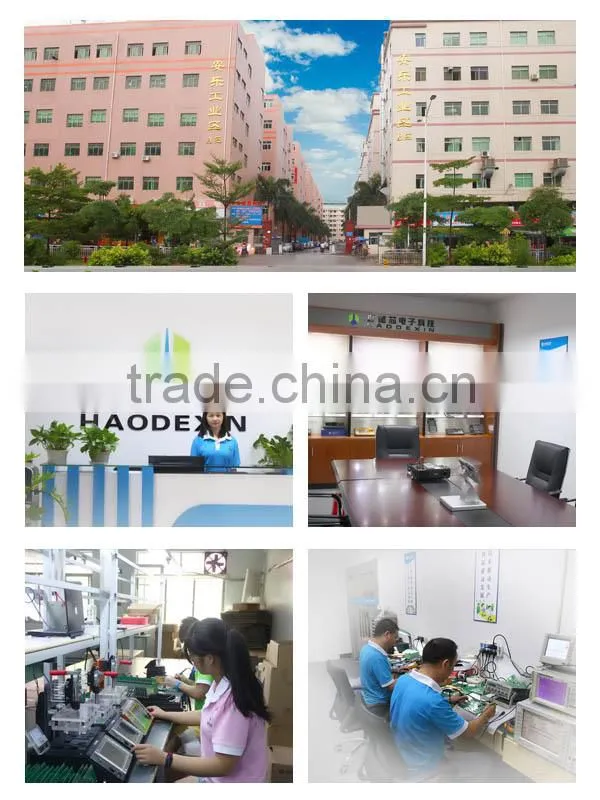

Company information
