Specifications
High quality oem 2d barcode scanner moduleCompact size,easy to embedded into PDA equipment.
Support GM,QR,PDF417,DM,1D code

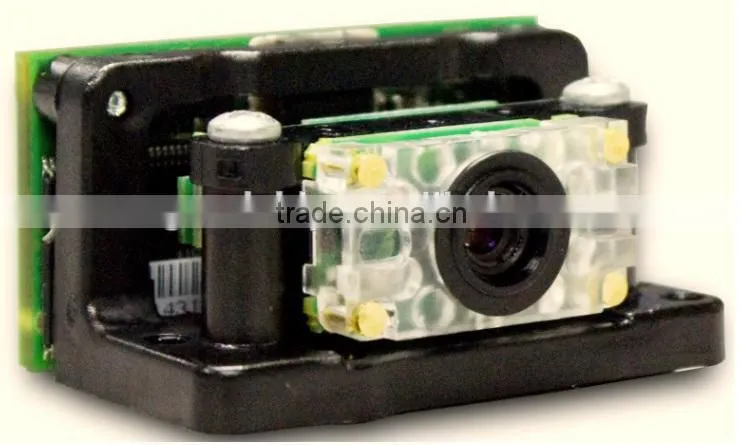

High quality oem 2d barcode scanner module with low comsupsion-----Gc002
Gc002 adopt the latest technical grade COMS image sensor technology,compact design,can read all kinds of mainline Linear bar codes and two-dimensional bar codes,As a embedded module,it can be integrated into equipment include Bar code.
2.Advertang
1. Compact size,easy to embedded into PDA equipmen
2. Low power consumption
3. Adopt technical grade image sensor technology,without moving components
4. Support GM,QR,PDF417,DM two-dimensional code and mainline linear code
l Specification
Focus |
15CM |
||||
|
10mil one dimensional |
13.33mil GM code |
13.33mil PDF 417 code |
15mil DM |
20mil QR code |
Nearest |
5.0CM |
4.3CM |
4.3CM |
4.2CM |
4.0CM |
Fastest |
18.2CM |
20.4CM |
20.4CM |
21.8CM |
25.4CM |
Recognition Mode |
752*480 CMOS Sensor |
||||
Recognition frame rate |
Fastest 60fps |
||||
Recognition precision |
≥3mi |
||||
Lighting LED |
Visible LED(630nm±10nm) |
||||
Indication LED |
Visible LED(560nm±10nm) Or Laser LED(650nm±10nm) |
||||
Recognition depth of focus |
45mm~250mm |
||||
Rotation Recognition |
360° |
||||
Recognition viewing angle |
36° |
||||
Environment illuminance |
0~10.000LUX(sunlight) |
||||
Communication port |
RS232 |
||||
l Symbologies
Two-dimensional code |
PDF417,QR Code,Data Matrix,GM Code |
Linear Bar Code |
Code 128,Code 39,China Post 25,ISBN,Code 93 |
l Electrical Feature
Voltage |
3.3V-5.5V |
Max current |
380mA |
Working current |
270~300mA |
Standby current |
110~130mA |
Dimension(H*W*L) |
25.4mm*38.5mm*19.5mm |
Weight |
30g |
l Working Environment
Working Temperature |
-5℃~+45℃ |
Storage Temperature |
-40℃~+60℃ |
Working humidity |
5%~95%(Without sticky) |
Payment:
1.Paypal:for sample
2.the china's bank:if you need pay to the company's account,add 17% taxes
3.Western Union
4.T/T
5.L/C:big orders,reach the certain amout,and after the risk evaluation
Shipping:
1.We have strong cooperation with DHL,TNT.UPS,FEDEX,EMS,China Airport,and all kinds of the special railway line.
2.Also you can choose your own shipping forwarder
All the inquiry will be replied within 8 hours
Will provide 24 months warranty to our customers
Provide technical support for all our products during its life time
Choose the most suitable shipment way for our customers
Track the order until you receive the goods
Factory advantage:
1.Founded in 2008,Located in ShenZhen,professional supplier that provides complete programs for the unity involves 2D Barcode recognitional terminal,3G wireless smart terminal,wireless financial terminal.
2.More than 500 contract customers(including the china mobile,china telecom,and china unicom,WoWo group,Galsxy Linkage,Giant groud of network.
3.More than 10 production Line
4.More than 30 engineer who with rich experience.
