Specifications
gsm fixed wireless terminal1.Infrared remote
2.1D/2Dcode scanner
3.handheld android data collector
4.wifi,3g,gps,gprs,BT

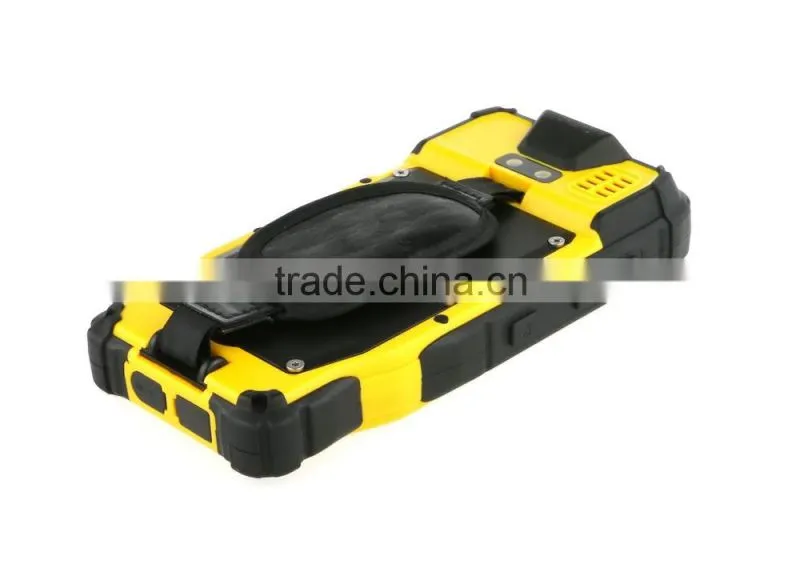

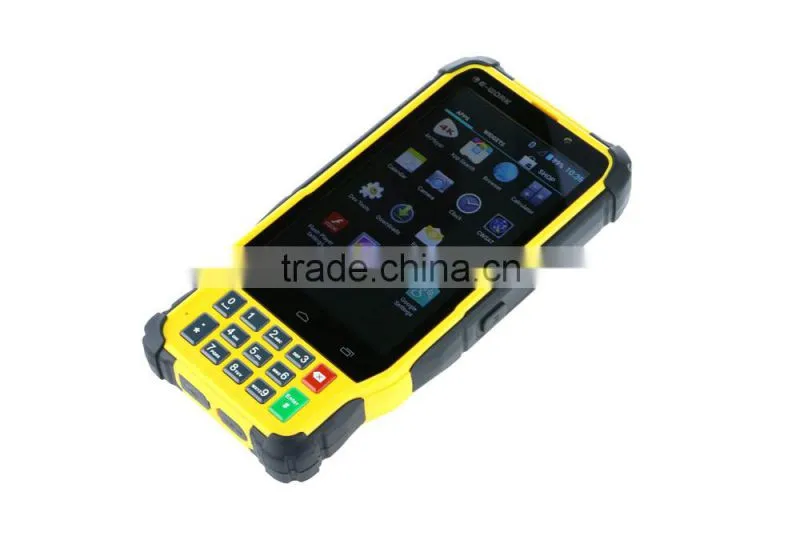

Handheld industrial-grade gsm 3g fixed wireless terminal PDA
1.Basci feactures
Industrial level Android pos terminal EDA-GC033
1)Plastic Case,10 times expensive than others
2)Dispaly Screen,5 times expensive than others
3)Touch screen,5 times expensive than others
4)Battery:5 times expensive than others
5)Unbreakable,can not be hit any way,waterproof,anti-explosion,dustproof,anti-power
6)Even if you drop if off from 10th floor to the ground,it will not broke
2.Specification
| Processor | Allwinder A31S,cortex A7,four core,1.2 GHZ |
| Operation system | Android 4.2 or above |
| Finger recognization | Capacity sensor to recognize |
| Infrared remote | With 38KHZ signal can control the output and input,Data communication reach 10 meters,with laser remote locate,support DL/T645 |
| Optical system | ROHM,BH1721FVC,Ambient light sensor,auto adjust the screen intensity |
| HD video support,hardware decoding scheme | H.263,H.264,MPEG-1/2/4MP/HP up to 1080@40Mbps@30fps |
| Video support | RM/RMVB,DAT,MPG,VOB,MP4,AVI/MK,TS,FLV,WMV,MOV |
| Music decoding | PRO/RA/AC3 |
| Music player | MP3/AAC/AAC+/EAAC+/WMA/WMA |
| Memory DDR | DDR 4/8 GB,EMMC compatible |
| NAND FLASH | DDR3 32bit,1GB/2GB,256MB/512MB*4 |
| TF Flash | Maximum 32GB |
| LCD | 5 inch,480*800 resolution,all angle IPS,capacitive touch screen,5 points touch,OCF |
| NFC | Model:RNS101,NXP PN544 chip,Support ECMA340 ect |
| Laser Barcode scan module(optional) | Code 39,Code 128,Codebar,EAN-8,EAN-13,ITF |
| GC002 Barcode scan module(optional) | Data Matric,Quick Response code,PDF 417 and all mainstream 2D code,Code 39,Code 128,Codebar,EAN-8,EAN-13,ITF |
| Camera | Front camera:200W pixel,the rear camera 500W pixel AF,with flash of light |
| The original buzzer | Touch tone,confirmation tone,Failure tone,Location of alarm tone |
| 3G | WCDMA/HSDPA/GSM/GPRS/EDGE |
| GPS Module | LOCOSYS,Support GPS/BEIDOU/GNSS/QZSS,can output two mixed data simultaneously |
| WIFI Module | M500,MTK MT6620,802.11 b/g/n |
| Bluetooth | M500,BT 2.1+EDR,3.0HS,4.0LE |
| Interface | 1 mini 5pin / USB 2.0 OTG / TF Socket(Max 32GB) / SIM 6 feet foil lift cover type |
| Antenna | High-effective internal FPC antenna |
| Active buzzer | Key tone, confirmation tone, tone failure, low battery alarm sounds |
| Weight | 0.8Kg |
| Power adapter | Embed 5000mAh/3.7V rechargeable Li-ion battery. |
| Working Environment | Working temperature:-10℃ ~ 50℃,Storage temperature:-40℃ ~ 80℃ |
| Humidity and Drop Standard | 95% Without sticky,1.2M six sides drop on the cement floor |
| Size | 158*88*13mm |
| Package | Standard industrial package |
| Static electricity protection | 12KV |
| Drop standard | 15 M six sides drop on the cement floor |

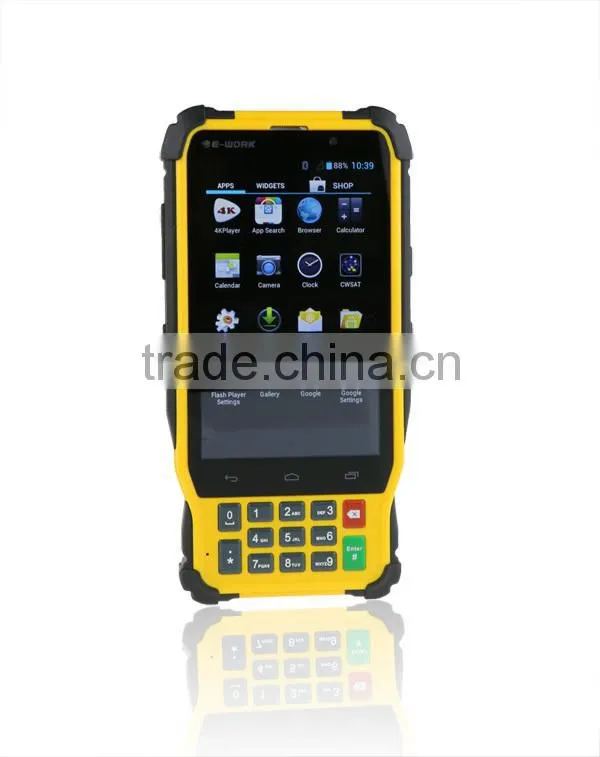

3. 5" Rugged Display Screen

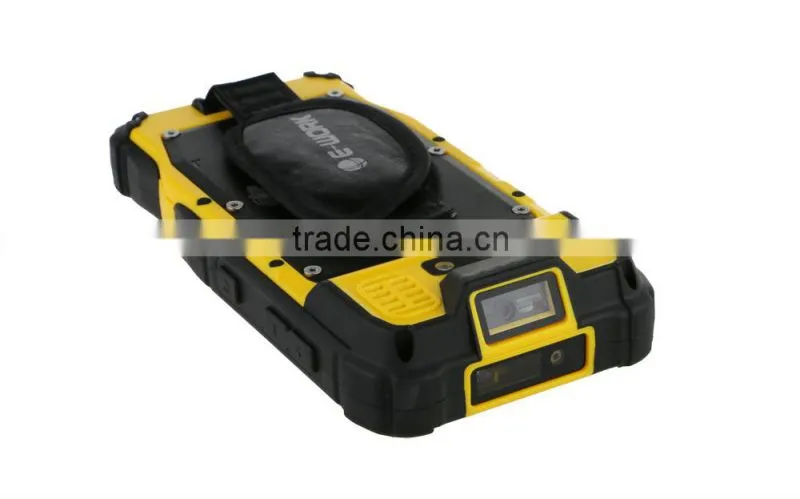

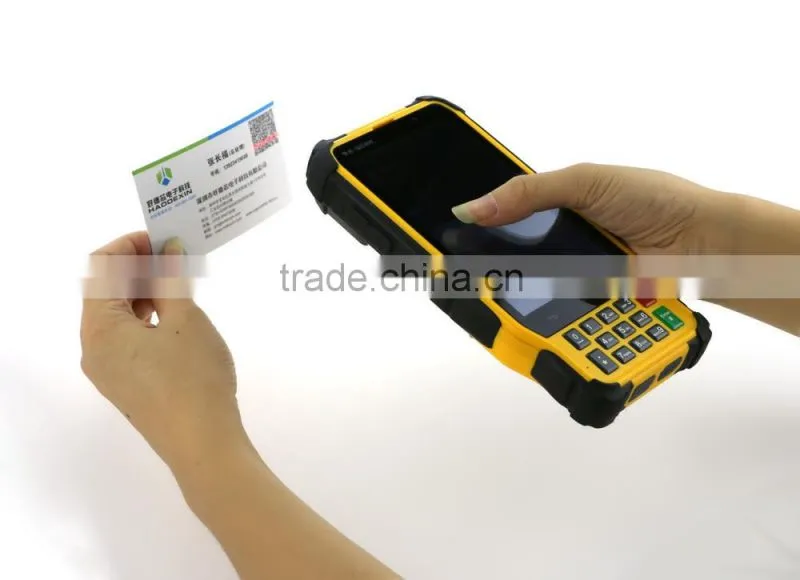

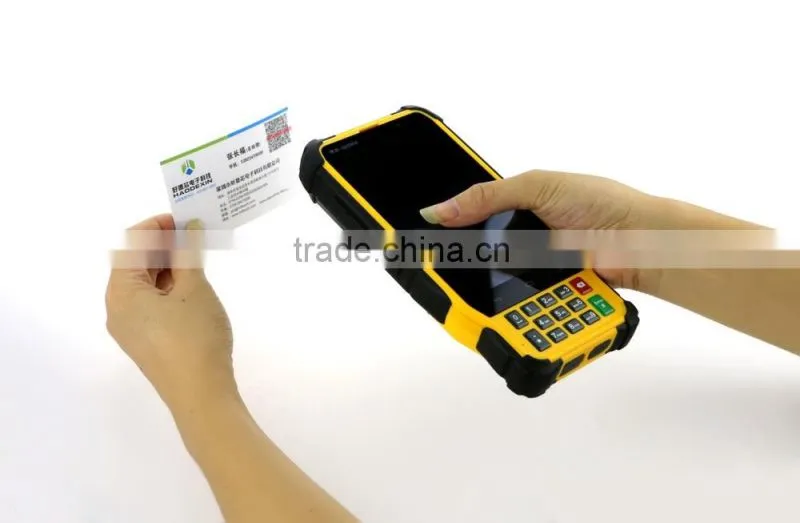

4.Laser barcode scanner and CMOS 1D/2D scanner
5.Handheld design for your consideration

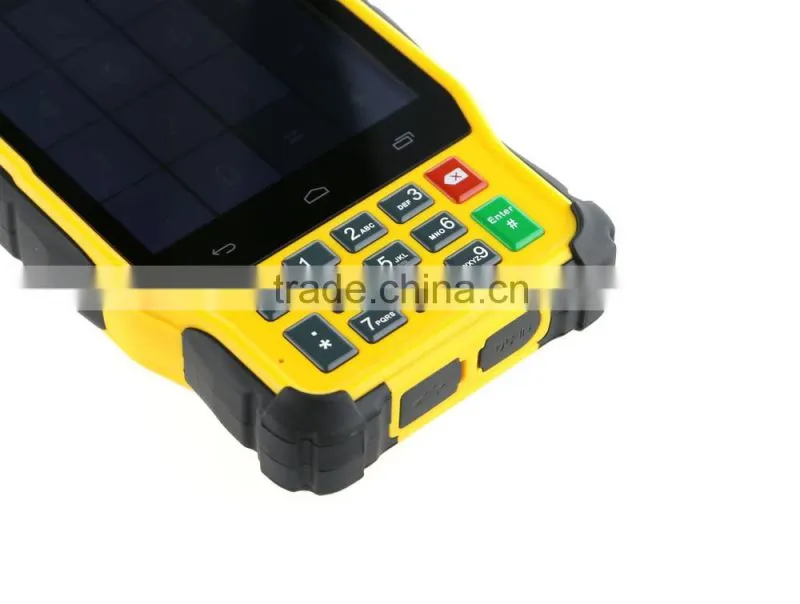

6.A number of Pinpad

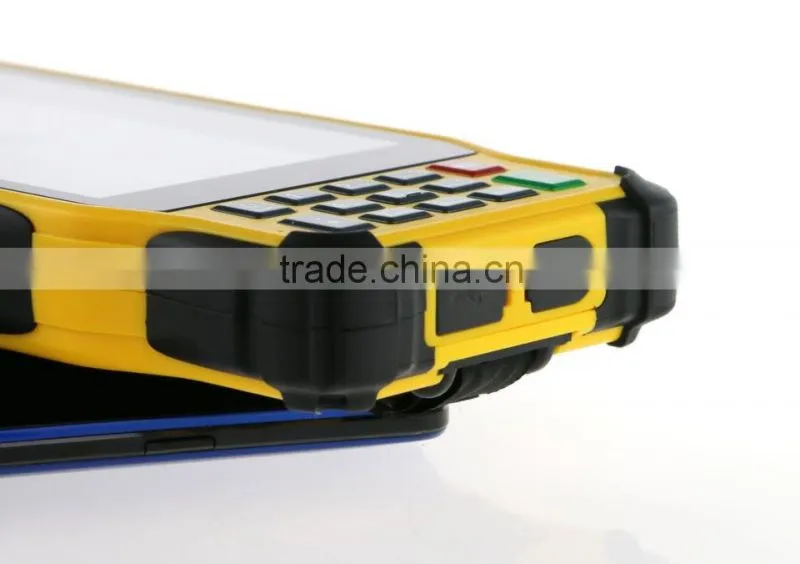

7.MINI PIN,USB Interface
Package:
Outer skin |
All industrial standard stuff |
Standard industry package |
White box+paper holder+cartoon+specification+warranty card |
Dimension |
158*88*13mm |
Weight |
0.8Kg |
Power adapter |
Embed 5000mAh/3.7V rechargeable Li-ion battery. |
Payment:
1.We can accept T/T and Western Union and Money Oder,the best way is direct online payment,you can choose yourself.If you want other payment terms please let us know before when you oder.
2.Full payment must be made within 7 days after placing your oder,or the oder will be invalid or canceled by the system.
3.Make sure that you have completed all the detailed information like cantact person,address,post code and telephone number when filling in your buyer's information.
Shipping:
Note:DHL/Fedex express usually takes about 3-5 working days to the destination.And it is about 5-8 work days by EMS or TNT.Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 to ship to worldwide.
1.We will send the goods within 3 business days after the full payment has been confirmed.If the payment is not availible,your oder will be closed automatically.
2.The buyer are responsible for any insurance problems and damage which caused by shipping service such accidents,delays or other issues.Besides the buyer should to be responsible for any tax and/or duty charged by their country.And the goods will be marked as "GIFT" or "SIMPLE" for your easy customs clearance and less charge.(If you want to declare the goods as other item name,or specify an value for custom,please inform us when making the oder
1.Any inquiry will be responsed within 8 hours.
2.Many functions are optional depend on you application.
3.Provide tech support for your secondary development
4.OEM/ODM service are availale
5.Samples are available
Our Strengh:
1.More than 8 years experience in wireless pos terminal
2.More than 30 professional engineer in our R&D

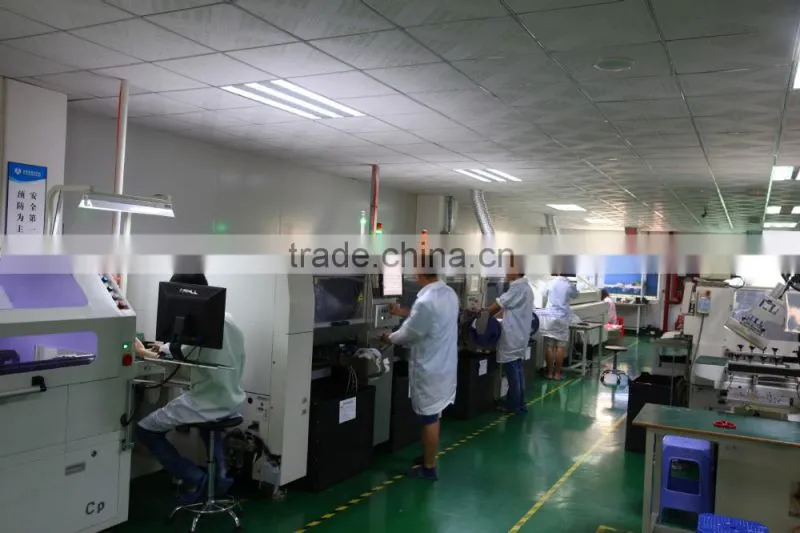

3.More than 3000 square meter factory,4 production line with more than 200 workers
4.China telecom,China Unicom,China Mobile,Alibaba,Jin Dong,Wan DA are all our clients.
5.Haagen-Dazs,Sony,Pakistan Ufone operator all purchase from us.
6.The most innovative technology to ensure our best quality and competitive price.
7.Provide technology support for your secondary development after sale.
Q1. How to check the software version
A: Turn on the device, it will show the software version number on the screen during startup.
Q2 Can not Turn On
A: Check the power adapter, or try to change another workable power adapter. Check the battery, or try to change another normal battery. Remove the battery, and only connect the power adapter. Or only use battery, and do not connect power adapter to test it. Then check the Power Supply Circuit and switch on/off the circuit according the test result. If the circuit has no problem, and it still can not turn on, please try to discharge.
Q3 Can not detect the SIM CARD
A: Please check whether the SIM card is installed well. Install the SIM CARD again. Change another SIM card Scrape the surface of the metal spring in the SIM CARD slot with knife. Check whether all the weld point of the SIM CARD slot is welded well or not.. If not, please weld it again. Replace the part of the SIM CARD slot.
Q4 Can not detect wireless signal
A: Please check whether it has GSM wireless signal in this place. If it has no GSM wireless signal or the signal is very weak, please try to test the terminal in another place with good GSM wireless signal. Otherwise, please open the shell of the device, and check if the antenna is connected well.
Q5 Print unconventionality
A: If it can’t print, or has other print problem, please check the problem device according to following steps:
(1). Open the shell of the POS.
(2). Clean the printer header with ethanol.
(3). Check the connector cable
(4). Disconnect the cable, and clean the connector of the cable
(5). Reinstall, and test it again.
Q6 Not feed paper
A: The POS does not feed paper during printing. But it can print out the receipt if you pull out the paper while printing.
(1). Check whether the paper installed well or not.
(2). Check the wheel of the roller Check the wheel. If the gear wheel becomes bad or broken, please replace the roller.
(3). Check the wheel of the print header Check the wheel. Is there anything block the wheel running? If yes, please clean it. If the gear wheel becomes bad or broken, please replace print header.
(4). Test print without paper Do not install paper, blot out the light sensor for pretending it from installing paper. Then try to print, check whether the wheel can run or not. If the wheel does not run, try to replace print PCB board, or try to replace the print head.
