Specifications
pos1.5 inch LCD display screen
2.RFID/IC/MSR card reader
3.3G/WIFI/Bluetooth/GPRS/Thermal Printer
4.call ID detection

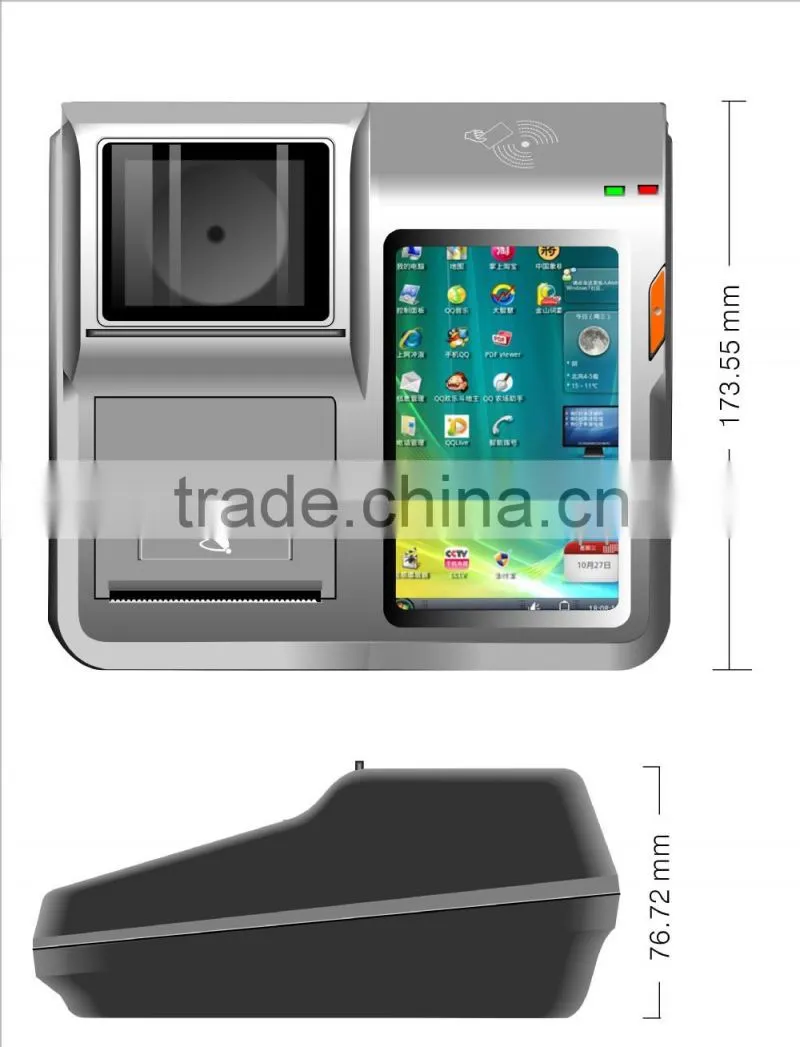

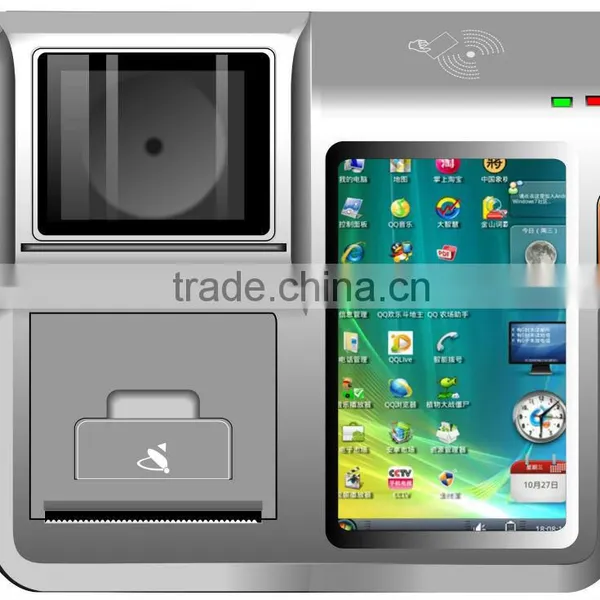

Microsoft Win CE 3g wifi touch screen pos terminal GC005
1.Widely used in these applications
1. Registration: Biometric Verification of SIMs/Vistors Registration/Voting
2. Prepaid Airtime: Electoronic prepaid card/PIN-LESS Top-up/Calling card
3. Bill payment: Electricity/Water/Gas/DTH/TV Recharges/Internet/Broadband/Insurance/Charity
4. E-ticketing: Railway/Ait/Bus/Movie
5. Money Transfer: Deposit/Withdrawal/Remittance
6. Loyalty Program: Loyalty card/Rewards card/Points card/Advantage card/Club card
7. Lottery: Lotto game/Bingo game/Casino game/
8. O2O Shipping
2.Specification
| Processor | 667MHZ(SUMSANG ARM11 S3C6410 |
| Operation system | Microsoft Windows CE 6.0 R3 |
| 2D barcode reader | Data Matrix,Quick Response Code,PDF417,GM |
| Memory DDR | DDR 128MB(64MB*2) |
| Nand Flash | SLC 256MB |
| Image sensor | 640*480 resolution (gray scale)CMOS camera 1300 000 pixel,fixed foicus,range 55*45MM |
| LCD Screen | Colorful 5 inch.Resolution 480*272 WQVGA.4 line touch glass resistive type electronic screen |
| Interface | USB1.0/2.0 Host and Client*2 / SD Socket(Max 32GB)*1 / Mini USB OTG*1 |
| Caller ID detection | Maxium support 4 way call detection,compatible with FSK/DTMF |
| Wifi Module | executive standard----IEEE802.11b/g/n Bluetooth(option) |
| High-Speed thermal printer | Paper width:57MM,print speed:Highest 5CM/s |
| Back up battery | Chargeable Polymer Battery 7.4V 1000mAh,hyper pressure with lower power protection |
| RFID Card Reader(optional) | Frequency:13.56Mhz Mirafe card read/writ module,meet with ISO14443A standard can support Mifare1 S50,Mifare1 S70,Mifare light,Mifare ultra light,Mifare pro,ISO 10536,ISO7816 standard |
| MSR(optional) | Comply with relevant international card specification ISO-7811/13,support 1/2/3 magnetic track two-way swipe |
| IC Card Reader(optional) | read-write Class A/B and C(5V/3V/1.8V) Card in compliance with ISO-7816.To,T1 Protocol,in line with the EMV L1/L2 Specificationcan |
| GPRS | 4 frequency,850/9001800/1900 MHZ |
| 3G Module(optional) | 5 frequency WCDMA HSDPA/EDGE/GPRS 850/900/1800/1900/2100 MHZ,compatible with MW100 |
| Back up battery | Chargeable Polymer Battery 7.4V 1000mAh,hyper pressure with lower power protection |
| Antenna | Specialized high-effective rubber antenna |
| Power Adapter | Input 100-240V dual power output,DC 9V 2.6A |
| Out skin | ABS stuff,deep gray |
| Size | 207*178*78MM |
| Weight | 1.5KG |
| Environment | Working temperature:-10℃ ~ 50℃,Storage temperature:-40℃ ~ 80℃ |
| Static electricity protection | 12KV |
| Humidity and Drop Standard | 95% Without sticky,1.5M six sides drop on the cement floor |
| Package | Standard industrial package |
3.
Package
Outer skin |
ABS material dark gray |
Standard industry package |
White box+paper holder+cartoon+specification+warranty card |
Dimension |
208*178*78mm |
Weight |
1.6Kg |
Power adapter |
3C:input 100-240V dual power output DC9V 4Ah 3C certification |
Antenna |
Dedicated high gain rubber antenna |
Payment
1.We can accept T/T and Western Union and Money Oder,the best way is direct online payment,you can choose yourself.If you want other payment terms please let us know before when you oder.
2.Full payment must be made within 7 days after placing your oder,or the oder will be invalid or canceled by the system.
3.Make sure that you have completed all the detailed information like cantact person,address,post code and telephone number when filling in your buyer's information
Shipping
1.We will send the goods within 3 business days after the full payment has been confirmed.If the payment is not availible,your oder will be closed automatically.
2.The buyer are responsible for any insurance problems and damage which caused by shipping service such accidents,delays or other issues.Besides the buyer should to be responsible for any tax and/or duty charged by their country.And the goods will be marked as "GIFT" or "SIMPLE" for your easy customs clearance and less charge.(If you want to declare the goods as other item name,or specify an value for custom,please inform us when making the oder
1.Any inquiry will be responsed within 8 hours.
2.Many functions are optional depend on you application.
3.Provide tech support for your secondary development
4.OEM/ODM service are availale
5.Samples are available
Our Strengh
1.More than 8 years experience in wireless pos terminal
2.More than 30 professional engineer in our R&D

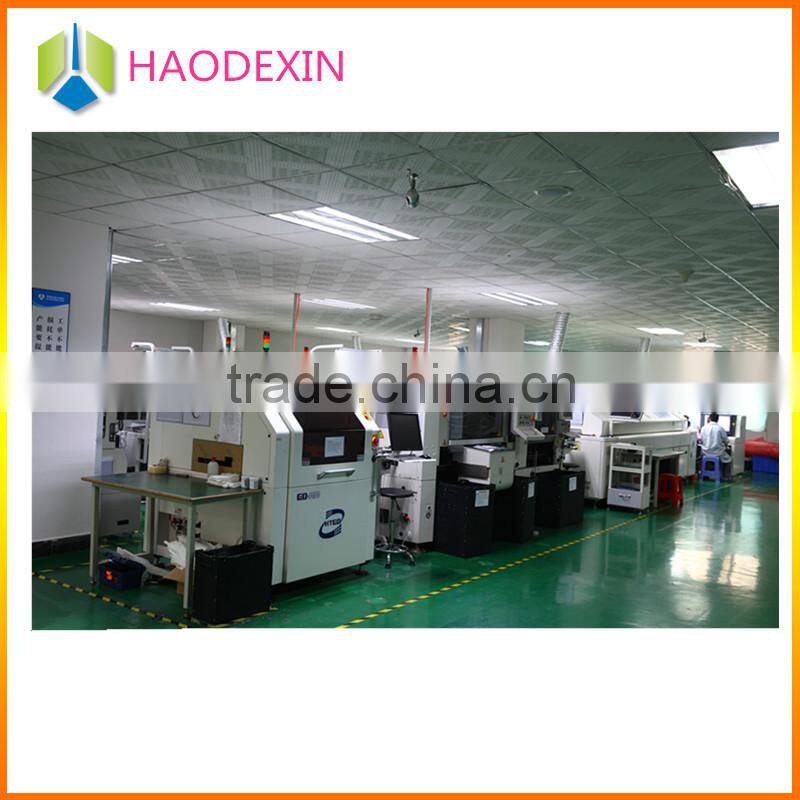

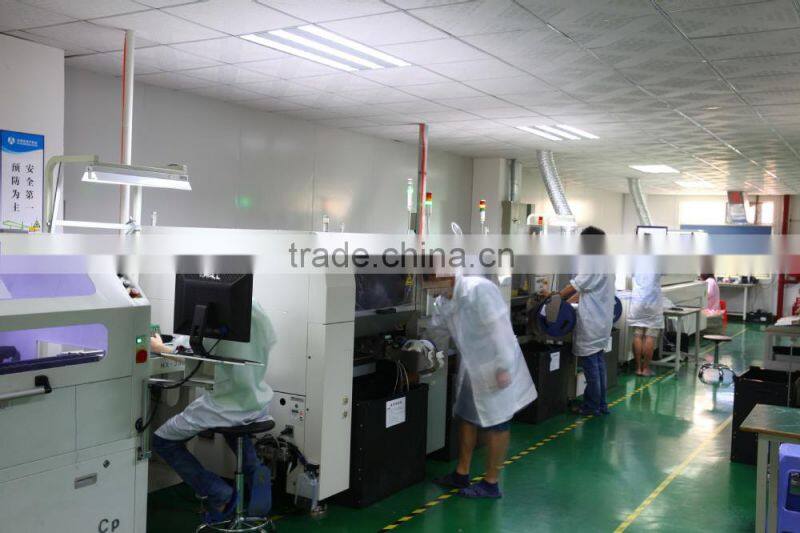

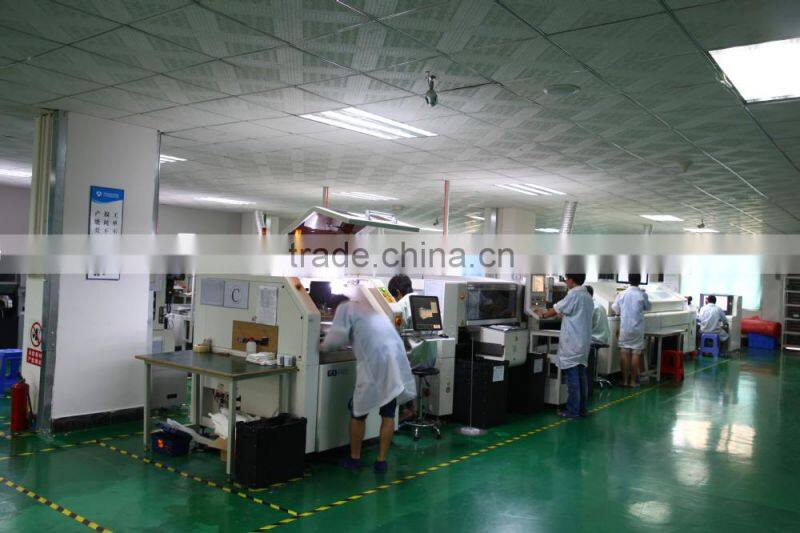

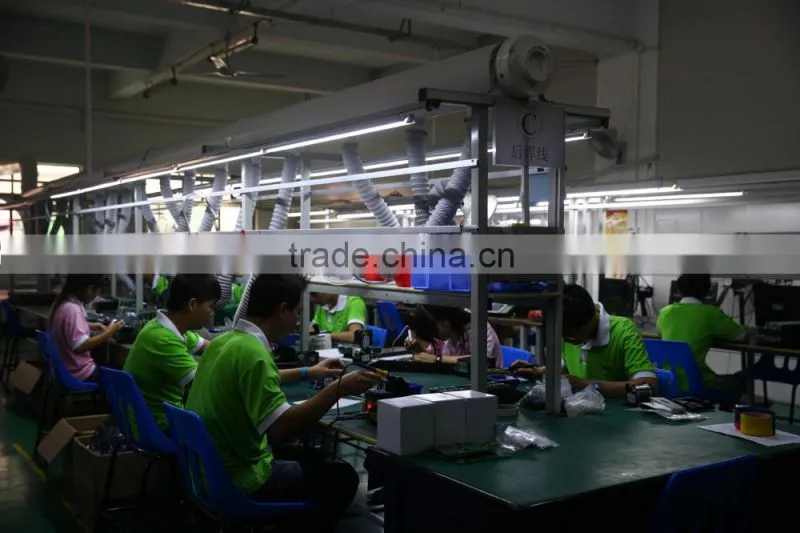

3.More than 3000 square meter factory,4 production line with more than 200 workers
4.China telecom,China Unicom,China Mobile,Alibaba,Jin Dong,Wan DA are all our clients.
5.Haagen-Dazs,Sony,Pakistan Ufone operator all purchase from us.
6.The most innovative technology to ensure our best quality and competitive price.
7.Provide technology support for your secondary development after sale.
