FOXGOLDEN best price P10 outdoor waterproof HD led screen for advertising

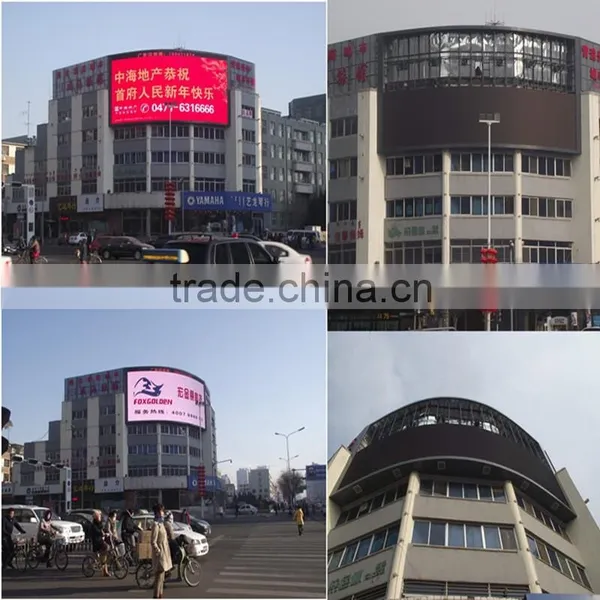

Outdoor led display project:
Installation:
Outdoor Screen:
Advantage:
1.----Long Time
Lamp:EPISTAR, 5 years warranty, Working Time:15 years.
2.---Save-energy:
IC: MBI5124, Working voltage: 3.3V, Save 35%, Waterproof: ip65.
Well-known brand power supply , saving energy and high efficiency.
P10 adopt Meanwell power supply, conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply conversion ratio is under 80%, and high heat dissipation, not stable, low cost.

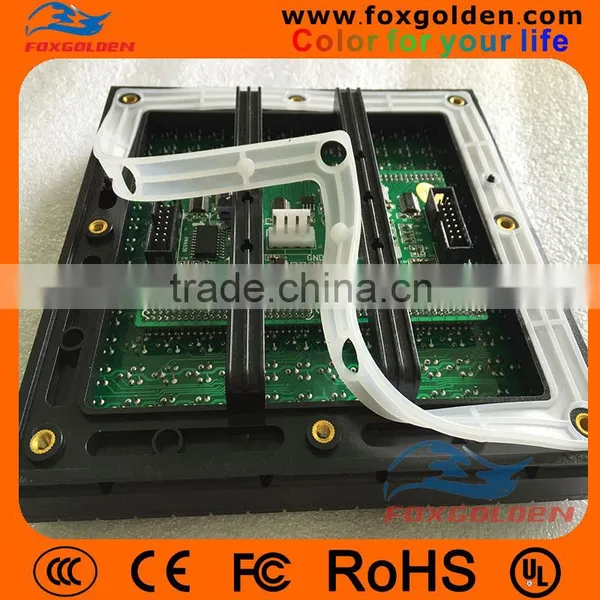

Unique guide rain trough design
same time improving cabinet strength,prevents cabinet damage during transportation.

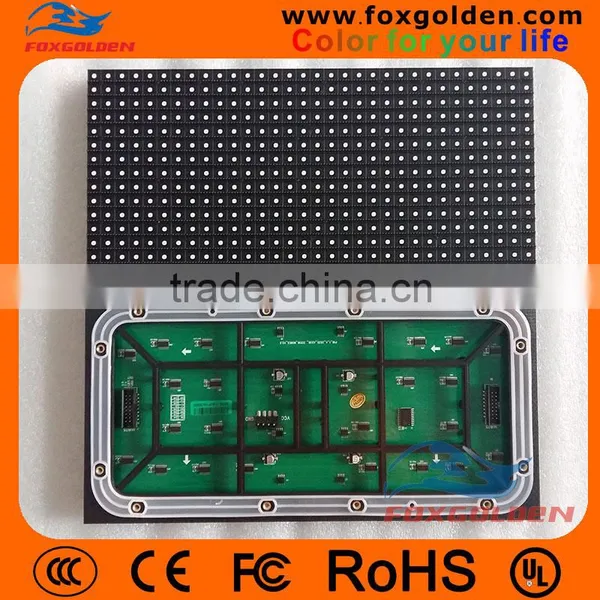

Waterproof P10 outdoor advertising LED display module
Technical Specification
| Outdoor P10 DIP Full Color LED Display Screen | ||
| No. | Item | P10 |
| 1 | Pixel pitch | 10mm |
| 2 | Module size | 160mm*160mm |
| 3 | Module resolution(dots) | 16*16 |
| 4 | Pixel configuration | 1R1G1B |
| 5 | Pixel density | 10000dots/m² |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | ≥10m |
| 11 | Horizontal view angle | 120° |
| 12 | Maximum power consumption | <650W/m² |
| 13 | Brightness | ≥8000cd/m² |
| 14 | Gray scale | 16 bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization&Asynchronization |
| 17 | Driving method | 1/4 scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥1920Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP 65 |
| 22 | Working temperature | -35°C~65°C |
| 23 | MTBF | >10,000 hours |
| 24 | Life span | >100,000 hours |
Contact us: Andy Zhu - Project Manager Skype: andy.zhu888 Wechat: 799109751
WhatsApp: 0086 18123621087, please Feel free to contact with me!!!
On Oct 10thfd, 2015, FOXGOLDEN begin to went into capital market and step into official listed company, stock code: 666153.
Thanks for 12-year customer support on FOXGOLDEN always.
Thanks for 12-year meterial supplier support on FOXGOLDEN always.
Thanks for 12-year FOXGOLDEN family constant effort and hard work.
We have 12-year production experience, We have 12-year design experience of offering solution, installation, and after-sales service, etc. According to different environment conditions, too cold temperature till -40℃ or too hot temperature till +55℃, we carefully choose different suitable materials and make the best offer for every customer. It differs in cables, LED lamps, plastic masks, waterproof materials, IC, etc. Faced with a variery of requirements, we offer flexible diverse solutions. We offer 24-hour all- direction online service.
As said by Jack Ma, the president of Alibaba group, it is the time of 3 wins. The meaning of FOXGOLDEN official website is WIN-WIN-WIN. WIN FOR CUSTOMERS; WIN FOR SUPPLIERS; WIN FOR FAMILIES. COM: COMING.
So means win-win-win, FOXGOLDEN has been coming to do it.
We are a young team, whose average age is 26.6 years old. Thanks, ercourage, and effort always accompany us. Looking back to yesterday. We live Today, and will move towards better promising Tomorrow.
Payment terms: |
35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: |
-Standard Export Carton with fully Polyfoam or Pearl Wool (Carton-box) -Flight case; -Anti-shaking wooden case |
Shipping: |
LED module: 2 to 5 working days upon receiving deposit payment LED display: 3 to 8 working days upon receiving deposit payment |
After-Sales-Service: |
-Lifetime with professional engineer support. problem |
Contact us: Andy Zhu - Project Manager Skype: andy.zhu888 Wechat: 799109751
WhatsApp: 0086 18123621087, please Feel free to contact with me!!!
1. Guarantee
(1) We guarantee all our led display screen, led modules, parts for 2 - 5 full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide led display CAD drawing on how to fix up the led display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
7. our factory can provide products :
(1) led display, led screen, led module,
led billboard, led board, led sign, led panel, led video wall, led tv wall,
(2) outdoor and indoor .
(3) full color, Double color and single color .
(4) Double sided and single side .
Contact us: Andy Zhu - Project Manager Skype: andy.zhu888 Wechat: 799109751
WhatsApp: 0086 18123621087, please Feel free to contact with me!!!
Contact us:
Andy Zhu -- Project Manager
Skype: andy.zhu888
Wechat: 799109751
QQ: 2486518788
WhatsApp: 0086 18123621087
Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!
