Express China Xxx Video P3/P3.75/P4/P4.75/P5/P6/P7.62/P8/P10/P12/P16,led tv Display Panel

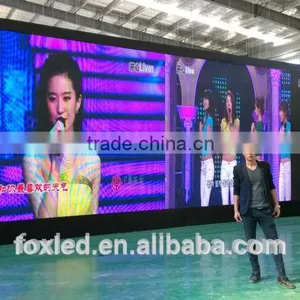

Express China Xxx Video P3/P3.75/P4/P4.75/P5/P6/P7.62/P8/P10/P12/P16,led tv Display Panel thumbnail-1
Express China Xxx Video P3/P3.75/P4/P4.75/P5/P6/P7.62/P8/P10/P12/P16,led tv Display Panel photo-1
US$ 550 - 900 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
FOXGOLDEN
Model Number:
FOX OUTDIP-P10-066
Contact Supplier Request Quote Chat Now
Foxgolden Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name FOXGOLDEN
Model Number FOX OUTDIP-P10-066
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, P10mm



P10 outdoor dip led display board technical parameter :



Pixel pitch

MM

10

Panel size

MM

L160XH160X34

Physical density

/M2

10000

Pixel configuration

R/G/B

1,1,1

Driving method



Constant current 1/4scan

LED Encapsulation

DIP

346

Display resolution

DOTS

16X16=256dots

Module weight

KG

0.45

Module port



HUB75

Module working voltage

VDC

5

Module consumption

W

21

Option distance

M

10-110

Every square metre module

PCS

39

Viewing angle

Deg.

H110 V50

Maximum power

W/ M2

1000

Driving device



5024

Frame Frequency

HZ/S

≥60

Refresh frequency

HZ/S

≥400

Equilibrium brightness

CD/ M2

≥7500

Working environment temperature

0C

-30~60

Working environment humidity

RH

10%~90%

Display working voltage

VAC

AC46~54HZ,220V±15%/110V±15%

Colour temperature



6500K-9500K

Gray scale/color



≥16.7M color

Input signal



RF S-Video RGB etc

Control system



PCTV nonlinearity card+DVI display card+Linsn control system

Mean free error time

HOURS

>5000

Life

HOURS

100000

Lamp failure frequency



<0.0001

Antijam



IEC801

Safety



GB4793

Resist the electricity



1500V last 1min No breakdown

Steel box weight

KG/ M2

55(standard steel box)

Earth leakage current

mA



IP rating



IP65front/IP54 back

Steel box size

mm

L960X H800x150(customized any size)



P10 Outdoor DIP Full Color led display board Characteristic:

1. In order yo ensure that image and texts are clear, vivid and consistent, all the chips for the entire RGB LED screens for

   outdoor  screens  within 100 square meters are at the same grade such as the same  brightness( ± 10%) and the same

   wavelength( ± 2.5nm).



2. In order to ensure screen background can become matt, completely absorb LED reflective light and eliminate shadow

    and ghosting,  we adopt imported glue to varnish module surface, the glue thickness for each module is not more than

   0.1mm, so the color is consistent and uniform.



3. To ensure product reliablity and long life, we strongly suggest select the best chips for all outdoor display ,like Nichia ,

  Cree, Epistar, Opto brand, to get reliability.



4. Module design. Arbitrary combine of sizes, convenient to assembly, exquisite box.



5. Easy to maintain and achieve single-pixel and single-lamp maintenance.



6. High quality at competitive prices.



7. Wide applied in stadiums, advertisement, banks, securities exchange, station, shopping malls, postal offices, schools,

    monitoring ,restaurants, entertainment, enterprises etc





LED Display Screen Product :

















Company vision:



Certificates:







Application and Project:







Trade terms :

1. Payment: T/T , 35% deposits before production, 65% balance to be paid before

   dleiverying (Western Union or Moneygram are welcomed)

2. Production lead time: 7-30 days in accordance with your demand.

3. Sample can be delivered whthin 3days

4. Shipping freight are quoted under your requests

5. Shipping port: Shenzhen, Mainland China

6. Discounts are offered based on order quantities
