rgb LED video P10 outdoor led display for advertising display screen
- 500 Square Meter / Square Meters per Month
- Shenzhen
- Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Foxgolden | Model Number: | P10 stage |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | 10mm | Screen Dimension: | any size |
Product Description
rgb LED video P10 outdoor led display for advertising display screen
Parameters | Value | Parameters | Value |
Model | P10 | Refresh Rate | ≥600HZ |
Pixel pitch | 10mm | Blind spot Rate | ≤0.01% |
Module Size(W*H) | 160*160mm | Gray scale per color | 65536 |
Module Resolution(W×H) | 16*16dots | IP Grade(Front/Rear) | IP65/IP65 |
Pixel Density | 10000dot/sqm. | Power consumption(max/avg) | 650 / 200W/sqm. |
Brightness | ≥6500nits | Input voltage(AC) | 110~240v |
Viewing angle(H/V) | 120° /120° | Operating temperature | -20°C~+50°C |
Best Viewing Distance | 10-50m | Operating humidity | 10%~90% |
Outdoor led display project:
Specification:
Model | FOX-P4(DIP) | FOX-P6 | FOX-P8 (SMD) | FOX-P10 | |
Module | Pixel Pitch (mm) | 4 | 6 | 8 | 10 |
LED Lamp Model | DIP 246 | DIP 246 | SMD 3535 | DIP 246 | |
Model Size (mm) | 256*128 | 192*192 | 32*16 (W*H) | 16*16 (W*H) | |
Model Pixel (dot) | 64*32 | 32*32 | 256*128*25 | 160*160mm | |
PCB Board Type | Separate Design | ||||
Driving Mode | Constant current | ||||
Scaning | 1/16 | 1/4 | 1/4 | 1/4 | |
HUB Board | HUB75 | HUB08/HUB75 | HUB75 | HUB75 | |
Cabinet | Standard Cabinet Size (mm) | 512*512*120 | 960*960*120 | 1024*1024*120 | 960*960*120 |
Cabinet Pixel | 128*128 | 160*160 | 128*128 | 96*96 | |
Cabinet Module Number | 4*8 | 5*5 | 4*8 | 6*6 | |
Power Supply Specification | 5V 40A/5V 60A/5V 100A | ||||
IP Grade | IP65-67 | ||||
Display | Pixel Density (dot/m2) | 62500 | 27777 | 15625 | 10000 |
Brightness (cd/m2) | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | ≥7000 cd/m2 | |
Max Consumption | 1000 | 1200 | 1000 | 1000 | |
Average Consumption | 500 | 600 | 480 | 480 | |
Best Viewing Distance (m) | 4-150 | 6-150 | 8-150 | 10-150 | |
The Horizontal and Vertical Perspective | 120/100 | ||||
System Specification | Drive IC Model | MBI5124 | |||
Control Mode | Synchronization or Asynchronization | ||||
Max Refresh Rate | 2800 | ||||
Max Gray Level | 8192 (13bit) - 65536 (16bit) | ||||
Repetition Frequency (HZ/s) | 60 | ||||
Brightness Adjustment | 256 Grade | ||||
Signal Input (with video processor) | HDMI, DVI, VGA, RF, S-Video, RGB, RGBH, YUV, YC&Conposition, etc | ||||
Communication Way | Net cable/SMF(signle mode fiber)/MMF(multi mode fiber) | ||||
Communication Distance (m) | 100/500/1000 | ||||
Operation Parameter | Working Voltage | AC110V/220V±10% 50HZ | |||
Working Temperature | -20~+80 | ||||
MTBF (MON) | 38 Months | ||||
Life Span Time (Y) | 11 Years |

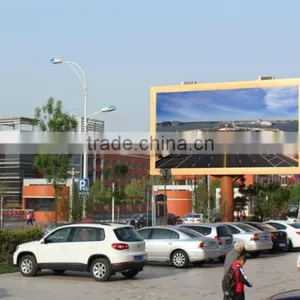

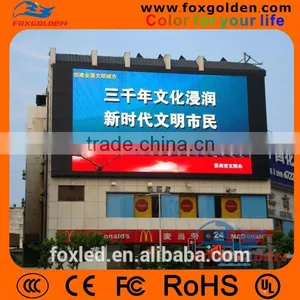

Application of Outdoor led display :
Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
After-Sales-Service: | -Lifetime with professional engineer support for free. problem |
