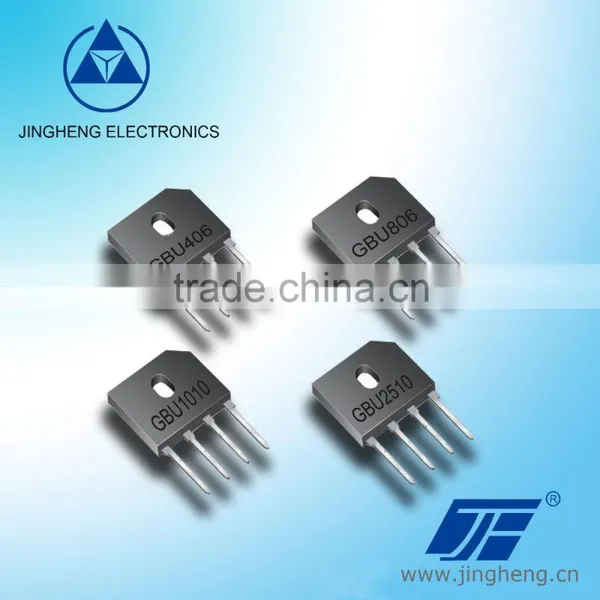

GBU401 Thru GBU410 4A Bridge Rectifier With GBU Package

GBU401 Thru GBU410 4A Bridge Rectifier With GBU Package thumbnail-1
GBU401 Thru GBU410 4A Bridge Rectifier With GBU Package photo-1
US$ 0.3 - 0.4 MOQ: 3000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JF
Model Number:
GBU401 THRU GBU410
Contact Supplier Request Quote Chat Now
Jinan Jingheng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JF
Model Number GBU401 THRU GBU410
Type Rectifier Diode
Package Type Through Hole



                                                      GBU401 THRU GBU410



                                                                                 BRIDGE RECTIFIER



                                                                                 Reverse Voltage: 100 to 1000 Volts Forward Current: 4 .0 Amps



FEATURES



Plastic package has Underwriters Laboratory Flammability Classification 94V-0



Glass passivated chip junction High current capability



Low  forward  voltage  drop



High temperature soldering guaranteed:260°C/10 seconds at terminals Component in accordance to RoHS 2011 /65 /EU



MECHANICAL DATA



Case: GBU molded plastic body



Terminals: Plated leads solderable per MIL-STD-750,method 2026 Mounting Position: Any

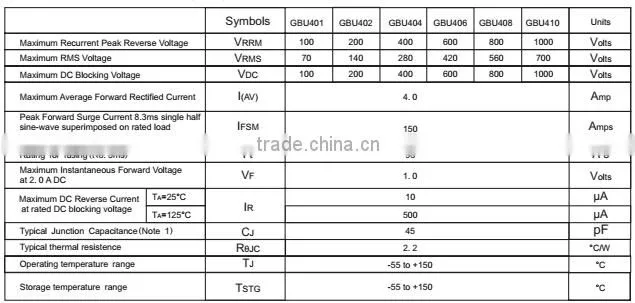

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating at 25°C ambient temperature unless otherwise specified. Single phase ,half wave , 60HZ,resistive or inductive load. For capacitive load,derate current by 20%.)



GBU401 thru GBU410 4A bridge rectifier with GBU package
NOTE:1.Measured at 1MH Z and applied reverse voltage of 4.0 Volts.
