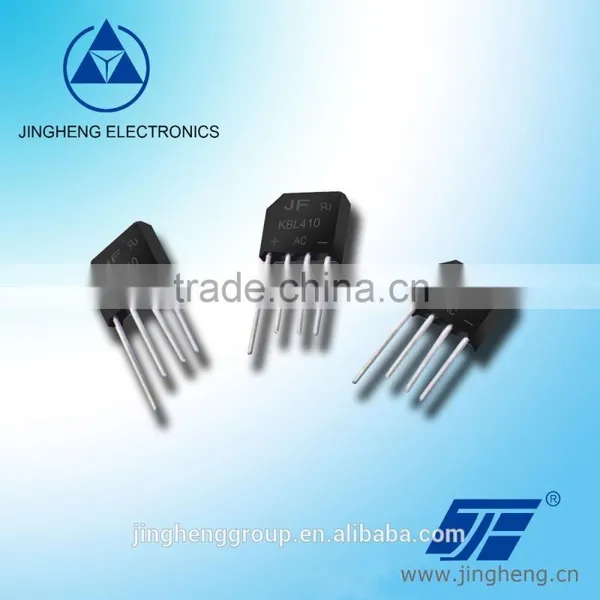

KBL401 THRU KBL410
BRIDGE RECTIFIER
Reverse Voltage: 100 to 1000 Volts Forward Current: 4 .0 Amps
FEATURES
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Glass passivated chip junction Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260°C/10 seconds at terminals Component in accordance to RoHS 2011 /65 /EU
MECHANICAL DATA
Case: KBL molded plastic body
Terminals: Plated leads solderable per MIL-STD-750,method 2026 Mounting Position: Any

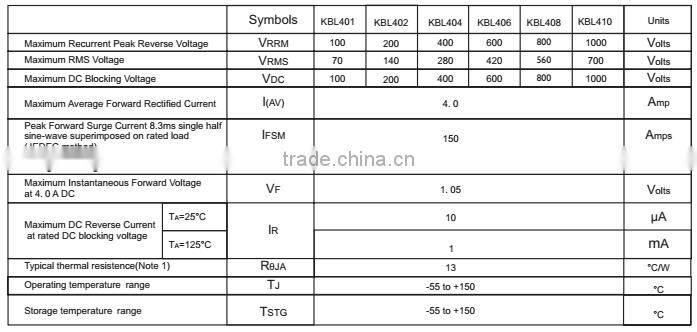

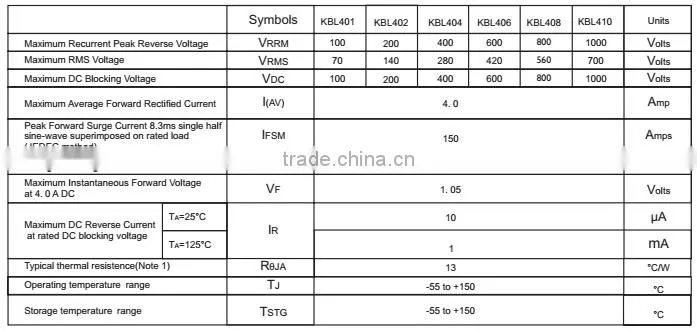

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating at 25°C ambient temperature unless otherwise specified. Single phase ,half wave , 60HZ,resistive or inductive load. For capacitive load,derate current by 20%.)
Note: 1. Thermal resistance junction to ambient with units mounted on 3.0×3.0×0.11" thick aluminum plate
