Help CenterSOOME Automatic Feeder Type Thin Blade Slitter Scorer
Related Products
-
SMBD-QDD Series Blades Scorers Both Move by Electric Thin Blade Slitter ScorerUS$ 3,000 - 8,000MOQ: 1 Set -
SMDX-DP Semi-auto Stitching Machine Single PieceUS$ 8,000 - 40,000MOQ: 1 Set
-
Semi-automatic Stitching Machine Carton Nailing MachineUS$ 8,000 - 40,000MOQ: 1 Set
-
SMBD-QDD Series Slitter Scorer Blade and Scorer All Move by Electric AutomaticUS$ 3,000 - 8,000MOQ: 1 Set
-
SMBD-ZDSL Series Offline Automatic Thin Blade Slitter Scorer , Blade Move by ElectricUS$ 4,700 - 4,700MOQ: 1 Set

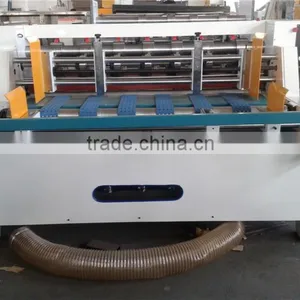

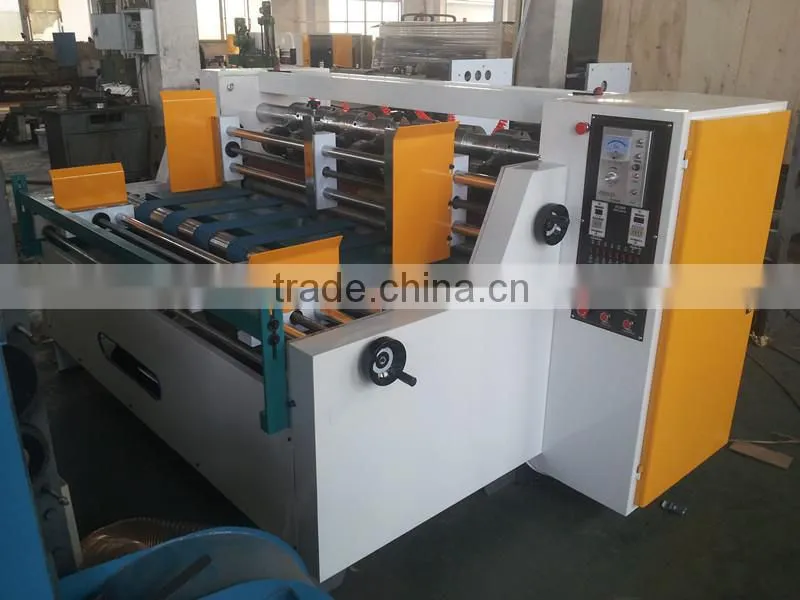

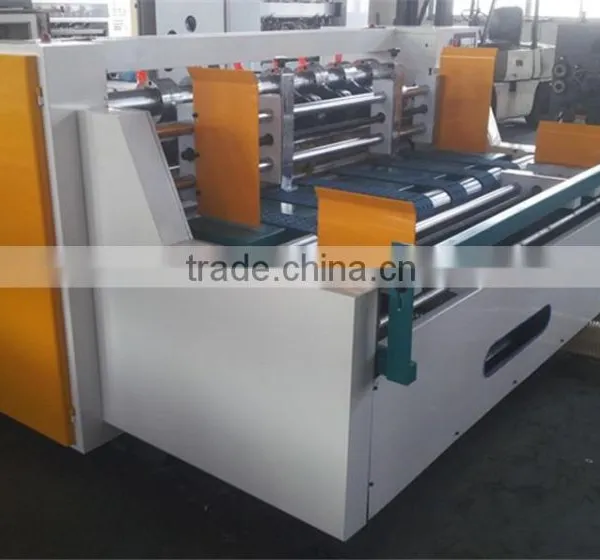

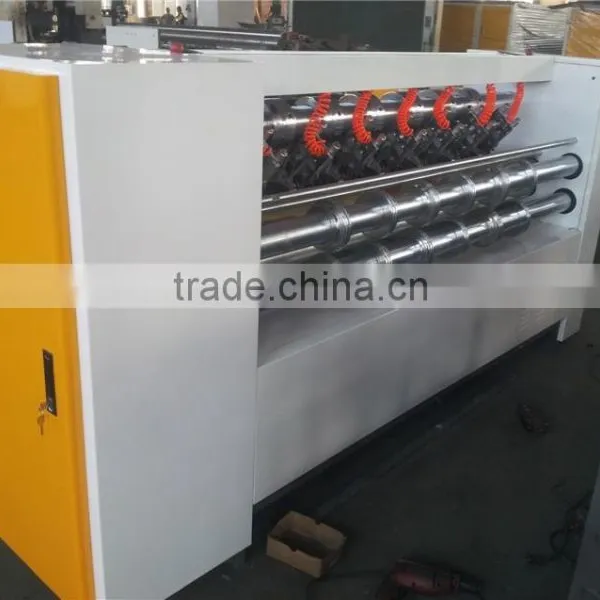

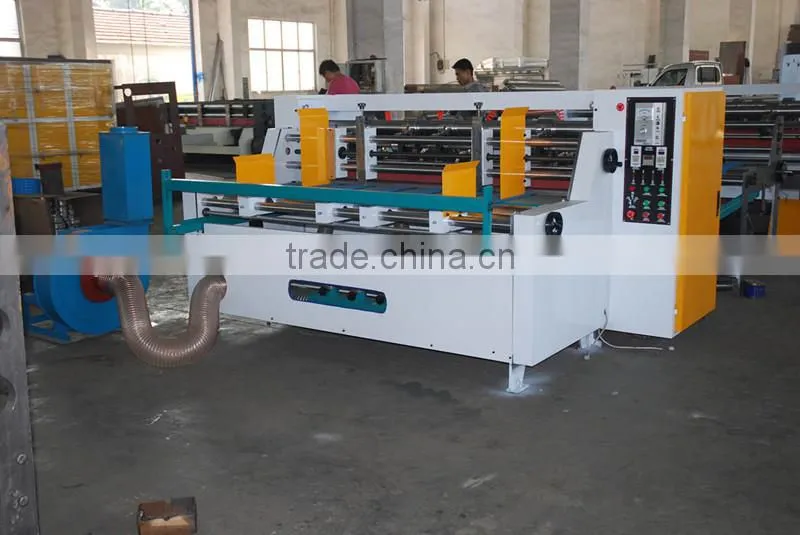

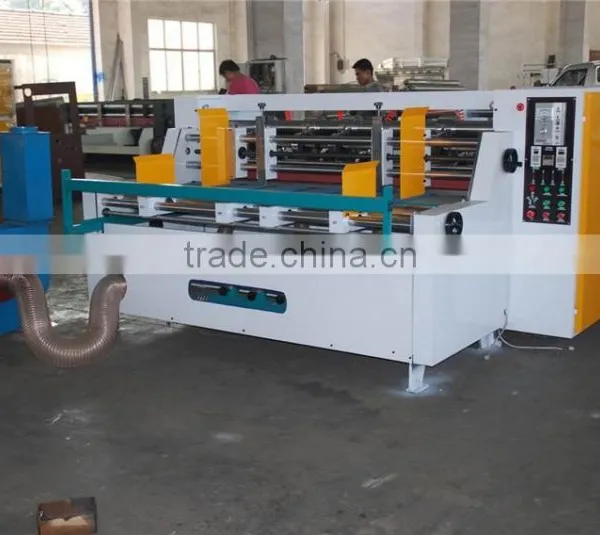

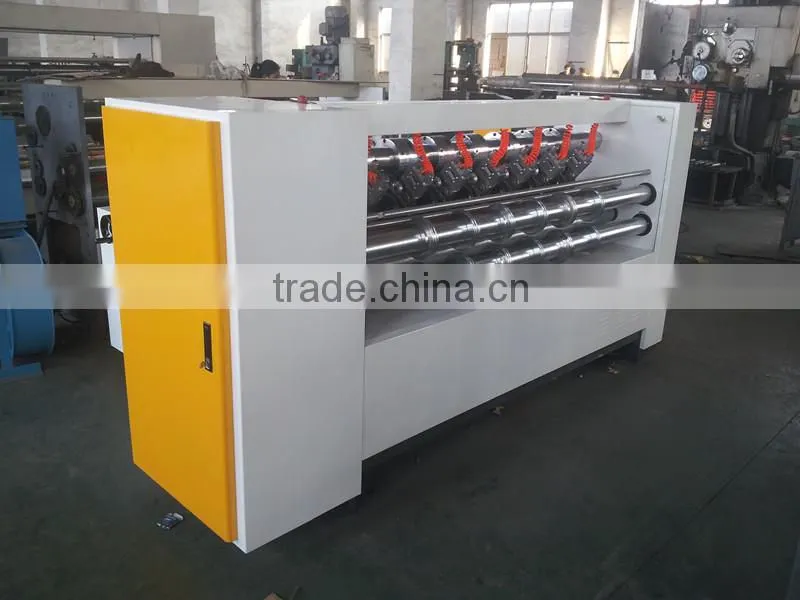

SMBD-ZDSL series Thin blade slitter scorer with automatic paper feeder
1. Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining.
2. Slitting part: adopt high quality tungsten steel blade, sharp and long working life, slice tidier, non-pressing and non-burr.
3. Scoring part: adopt 5 points scoring, scoring distance in-phase adjustment, blazonry and easy to bend the carton sheet.
4. Grinding part: adopt automatic and manual pneumatic grinding. It can grind while working, which can improve working efficiency.
5. Electrical blade distances adjustment, pneumatic locking. (Optional)
6. Can set the qty. of paperboard, automatic stop the feeding after finishing.

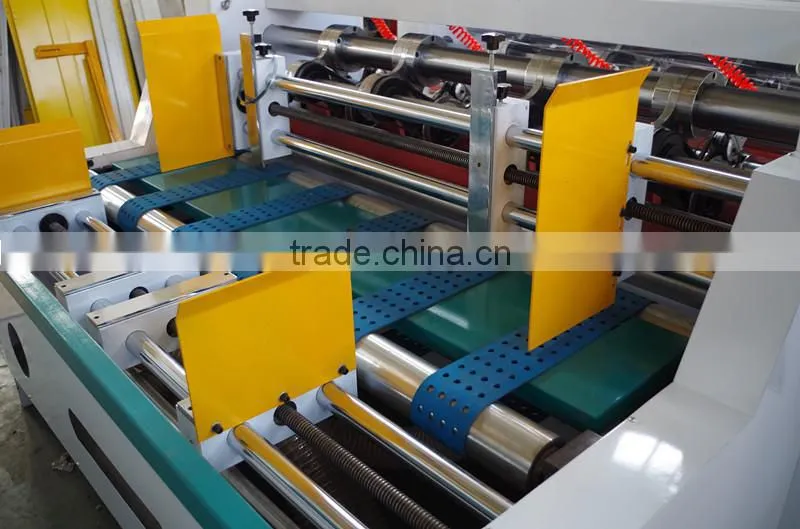

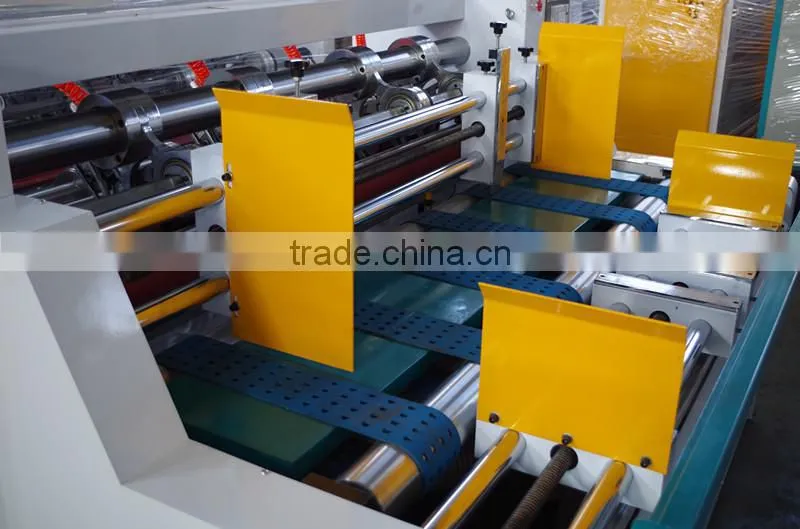

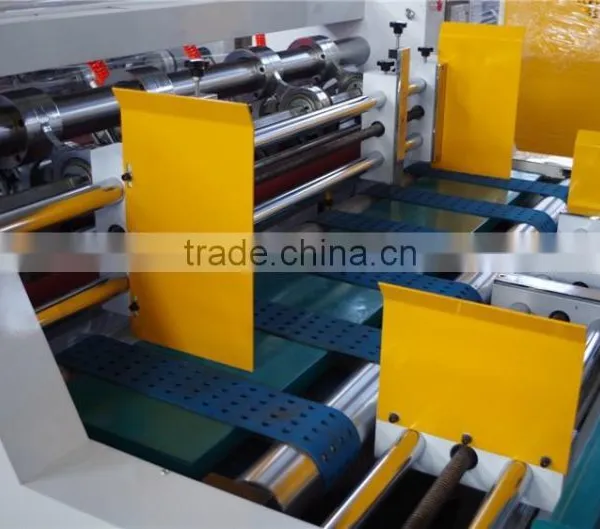

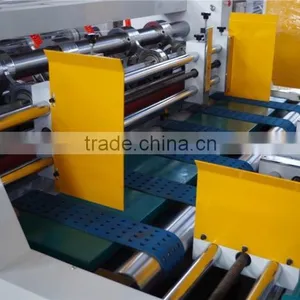

Auto suction paper feeding, assured the safety of workers and decreased the working load.
Suitable to a large scale paperboard machining.
Main Technical Parameter:
Type |
SMBD-ZDSL-2000 |
SMBD-ZDSL-2200 |
SMBD-ZDSL-2500 |
SMBD-ZDSL-3000 |
effective width |
1800mm |
2000mm |
2300mm |
2800mm |
min. slitting length |
260mm |
260mm |
260mm |
260mm |
min. slitting width |
120mm |
120mm |
120mm |
120mm |
min. Scorer width |
30mm |
30mm |
30mm |
30mm |
machine dimension |
2640*1740*1360 mm |
2840*1740*1360 mm |
3140*1740*1360 mm | 3640*1740*1360 mm |
total power |
4kw |
4kw |
5kw |
7.5kw |
speed |
130m/min |
120m/min |
100m/min |
80m/min |
1. Q: Are you a manufacturer or trading company?
A: We SOOME is a manufacturer of carton machinery which has nearly 20 years production experience.
2. Q: Have you ever attended or will attend any exhibition?
A: We ever attended the Canton Fair and Chengdu international corrugated exhibition. And we will attend the SinoCorrugated 2015 in Shanghai from Apr. 14th to 17th, 2015.
Welcome to visit our booth: N5 D94
3. Q: Can we visit your factory?
A: Yes, you are welcomed to visit our factory at any time!
