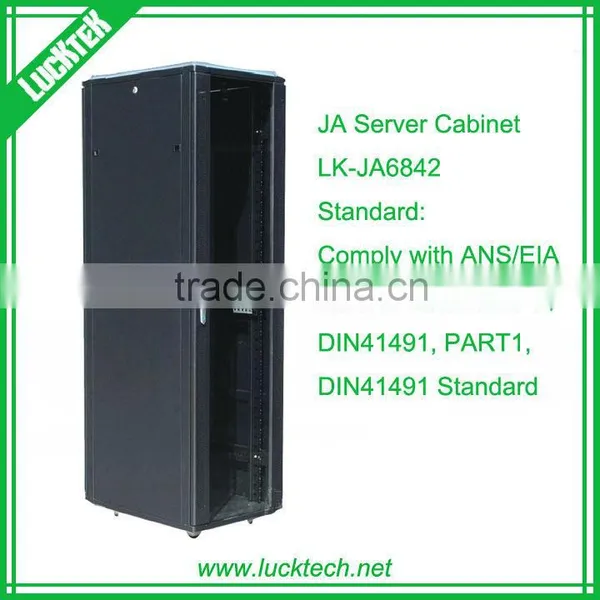

Network Cabinet 42U JA Server Cabinet
Specifications
-Quality Approved-Competitive price
-Promote Delivery time
JA Server Cabinet
Feature:
Exquisite design with precise craftsmanship;
Aluminum profiled frame, light weight and easy to transfer;
Tempered glass front door with over 180 turning degree;
High-density peforated rear door enable equipment ventilation and reliable operation with ventilation rate above 50%;
Removable side panel, easy to install and maintain (lock optional);
Connected by four-corner to ensure the strength and stability;
Adjustable feet and castors are available at the same time;
Adjustable cable entry with dust-proof on the top cover and bottom panel;
Advanced moon-shaped locks;
Efficient baying kit of cabinet, Earthing kit;

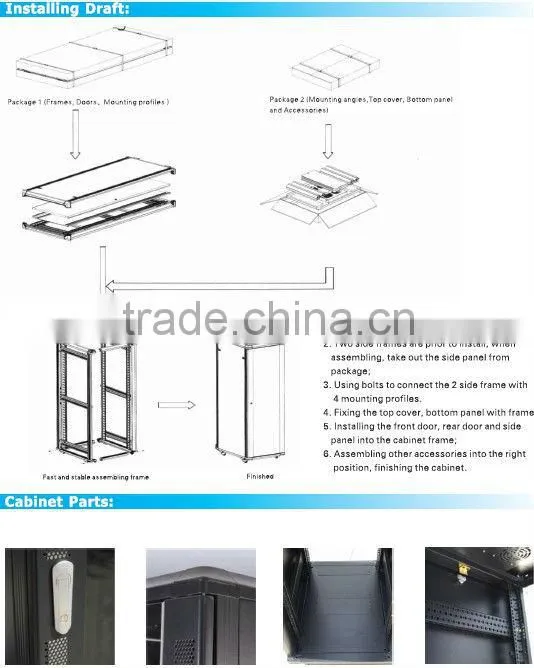

Supplied as a flat packing, which is about 2/5 of the assembled volume, easy to shipping and assemble;
Optional Accessorie for common using;
Standard:
Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491 Standard

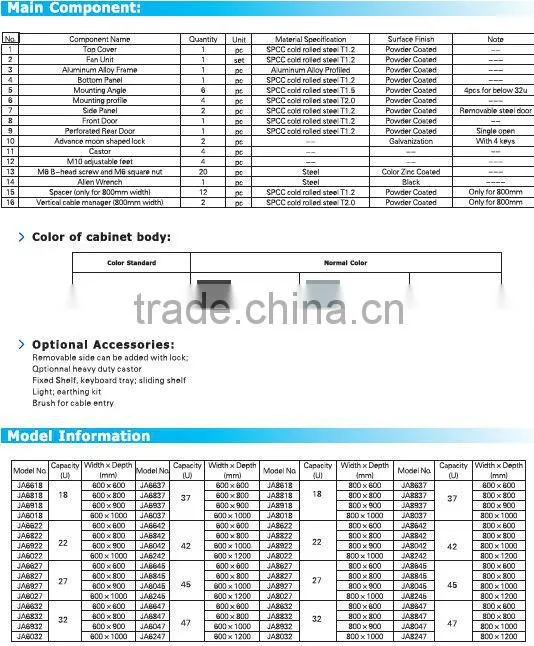

Material:
Frame: Aluminum
Others: SPCC quality cold rolled steel
Thickness: Mounting profile: 2.0mm, mounting angle: 1.5mm; others: 1.2mm
Loading Capacity:
Static loading: 800kg
Degree of protection:
IP20
Surface Finish:
Degreaseing, Pickling, Phosphating, Powder Coated
Details:
Certifications:
Factory Show:
