Home > Products > Network Cabinet & Accessories > 19" JS-C 37U Standard Vertical Server Network Rack Cabinet

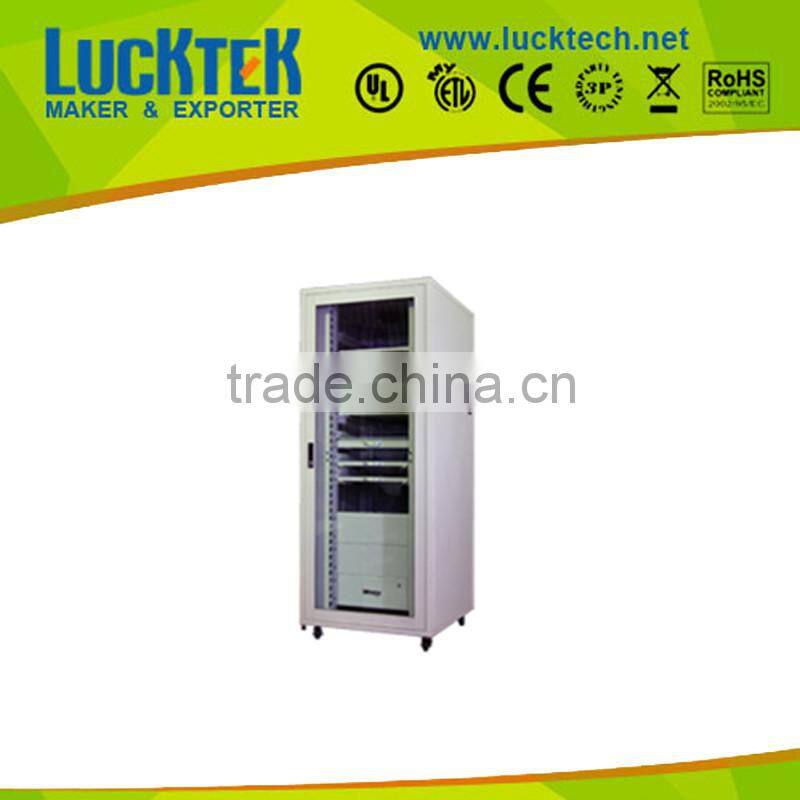

19" JS-C 37U Standard Vertical Server Network Rack Cabinet
- NINGBO / SHANGHAI
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Products Status | Stock | Cabinet Standard | 19'' | |
| Material | SPCC qualty cold rolled steel | Size | 18U 22U 27U 32U 37U 45U 47U... | |
| Place of Origin | Zhejiang, China | Brand Name | LUCKTEK / OEM | |
| Model Number | LK-JS8247 |
Product Description
Specifications
Network Cabinet1:High quality
2:competitive price
3:Nice apperence and design
JS Series Cabinet
Specifications:
| Item No.: | LK-JS6637 ; LK-JS6837 ; LK-JS6937 ; LK-JS6037 |
| Material: | Frame: Aluminum Others: SPCC quality cold rolled steel Thickness: Mounting profile: 2.0mm; mounting angle: 1.5mm; other: 1.2mm |
Loading Capacity: | Static loading: 800kg |
Standard: | Comply with ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491 Standard |
Degree of protection: | IP20 |
Surface finish: | Degreaseing, Pickling, Phosphating, Powder Coated |
Feature:
| 1. Exquisite design with precise craftsmanship; 2. Aluminum profiled frame, light weight and easy to transfer; Acrylic front door with over 180 turning degree; 3. High-density perforated rear door enable quipment ventilation and reliable operation with ventilation rate above 50% Removable side panel, easy to install and maintain(lock optional) 4. Connected by four-corner to ensure the strength and stability 5. Adjustable feet and castors sre available at the same time 6. Adjustable cable entry with dust-proof on the top cover and bottom panel 7. Advanced moon-shaped locks 8. Efficient baying kit of cabinet, Earthing kit 9. Supplied as a flat packing, which is about 2/5 of the assembled volume, easy to shipping and assemble 10. Optional Accessories for common using |

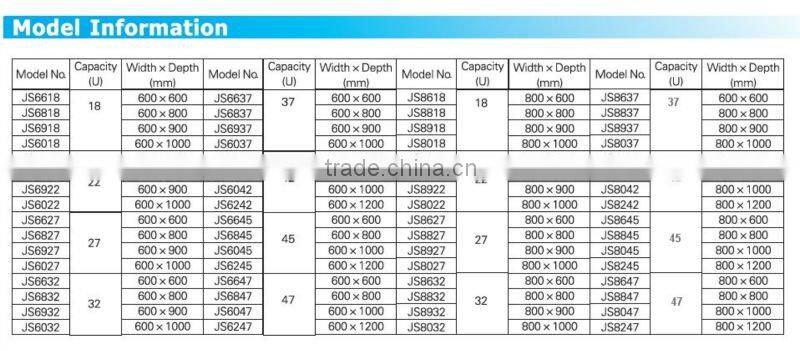

Model Information:
HONGKONG exhibition:

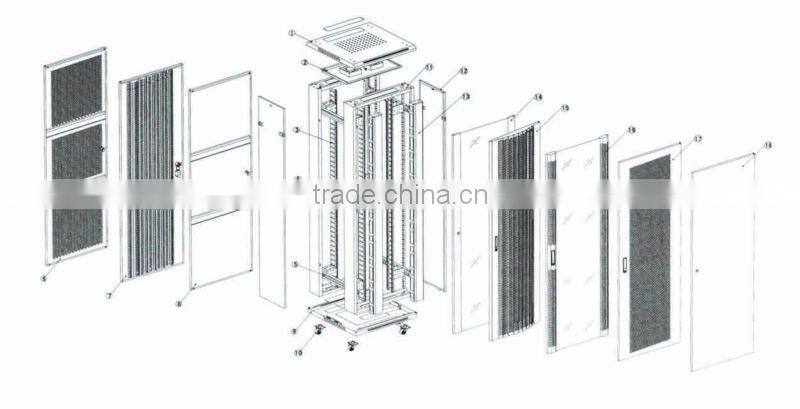

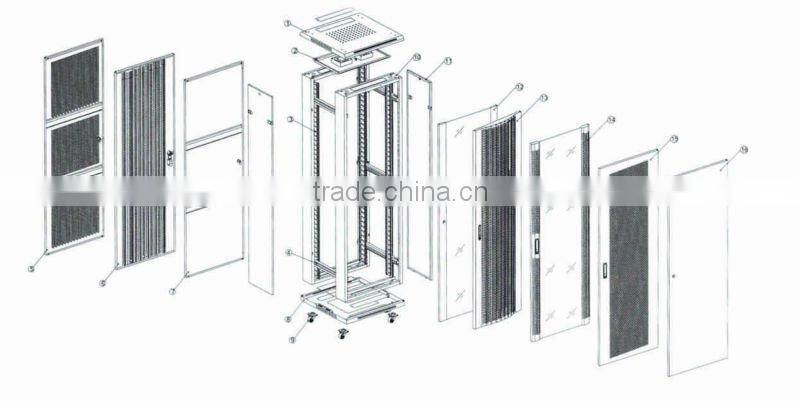

Main Structure (800mm Width):
JS seris server cabinet include NA/NB/NC/ND/NE, which have the same structure:
1.steel rear door; r (for 800mm width); 3.fan tray;
4.mounting profile 5.blanking panel; 6.mounting angle; 7.bottom; 8.castor; 9.cable entry plate ; 11.side panel; 12.frame;
13.vertical cable management; 14.front door; 15.fixed shelf; 16.feet

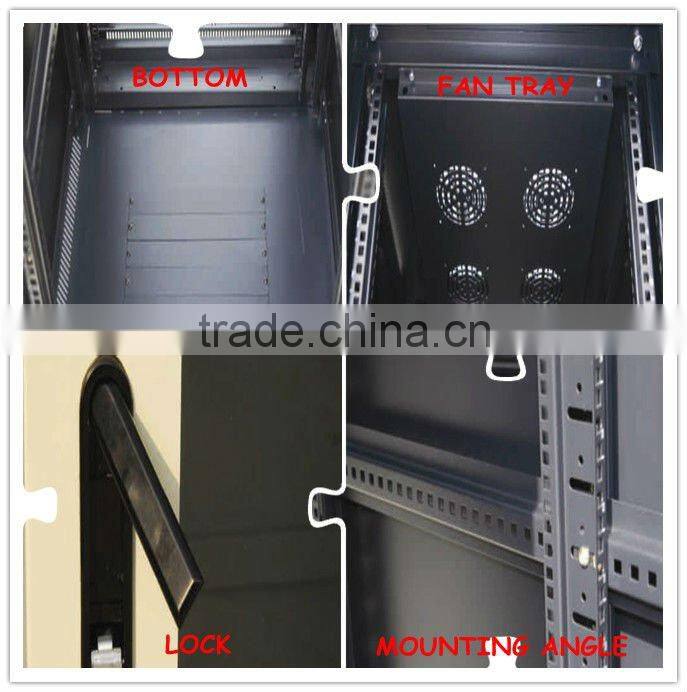

Main parts:

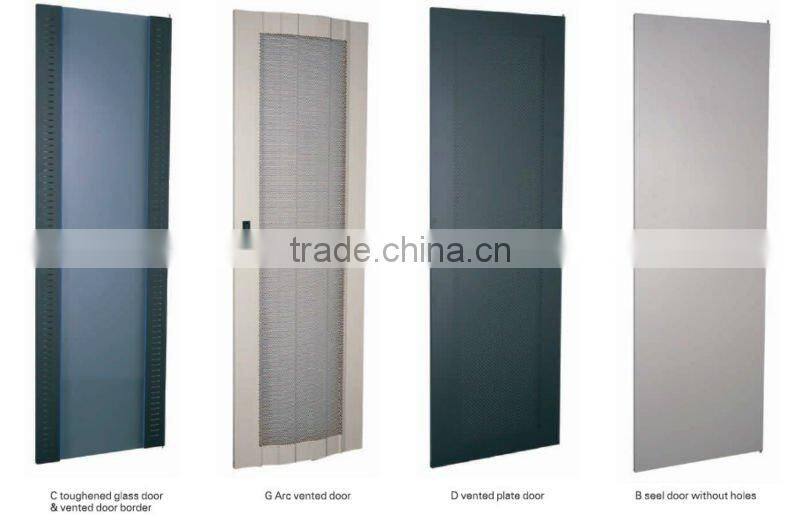

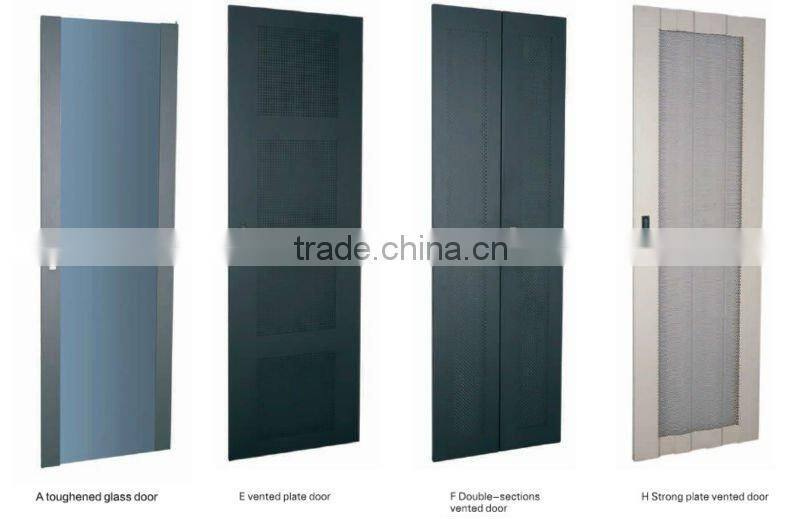

Door type:

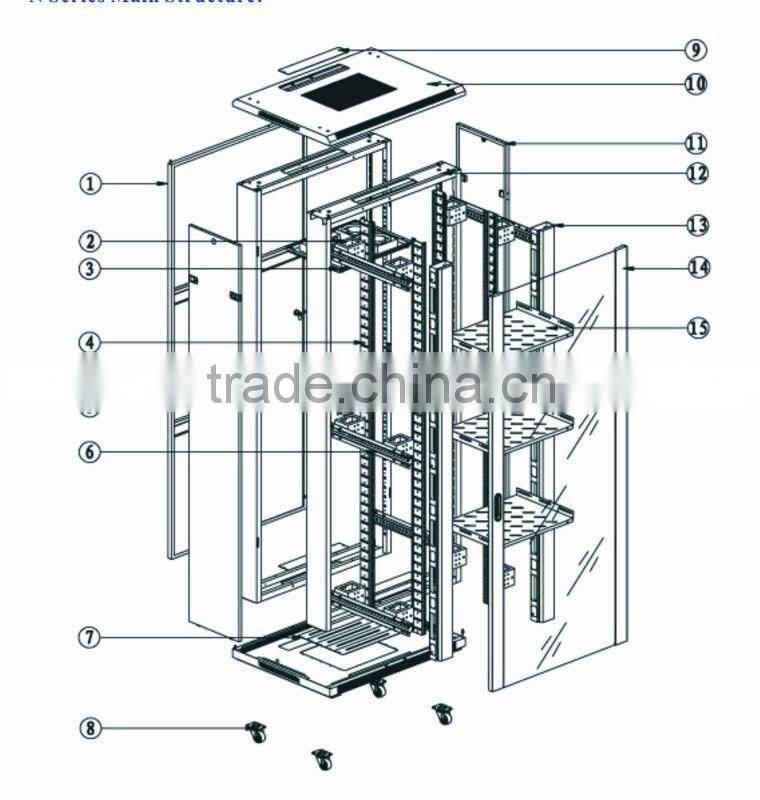

Main structure(800mm width):

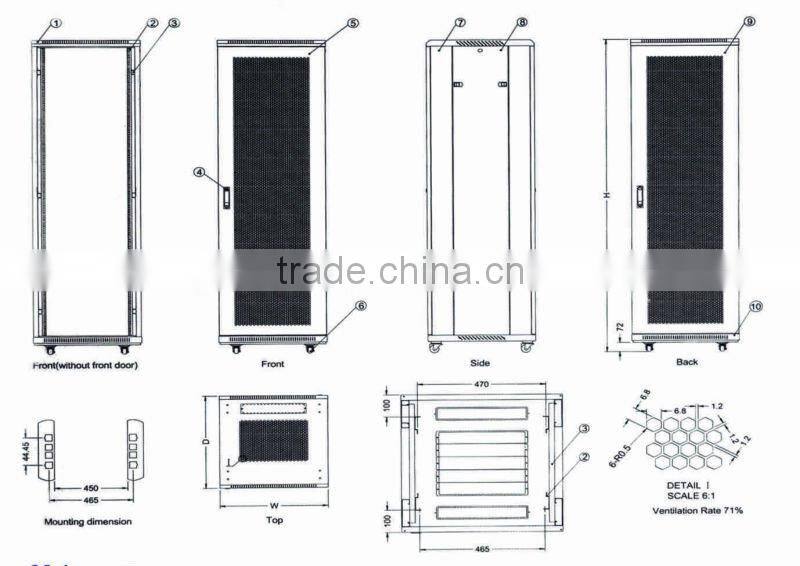

Main structure(600mm width):

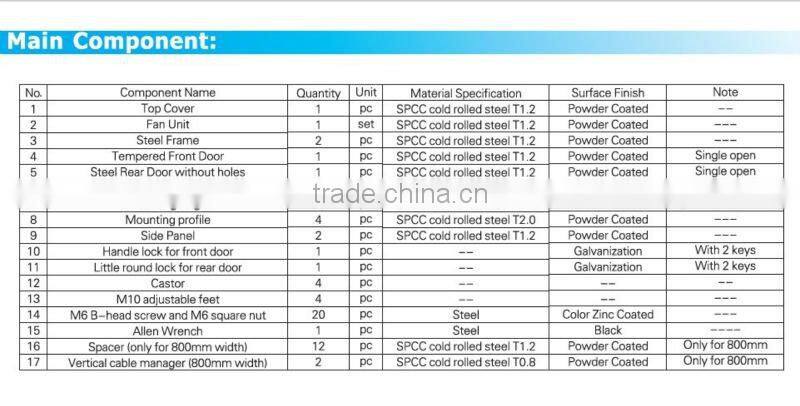

Main Component:

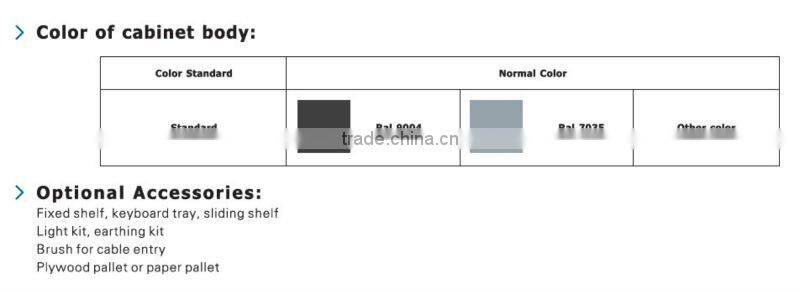

Color:
