Flanged pipe

Specifications

1. Lost foam casting
2. ISO2531, BS EN545, BS EN598, BS4772
3. Ductile iron
4. ISO 9001 2008 BV Product Conformity

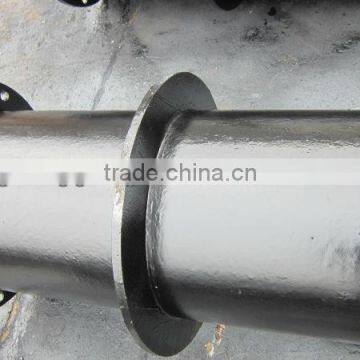

Product name: Ductile iron flanged  pipe



  Detailed information

1. Material    Ductile iron

2. Technique Lost foam casting technology (It is the most advanced technology in this field, so the quality of our products is much better than those using traditional casting.)

3. Standards   ISO2531 / BS EN545 / BS EN598 / BS4772

4. Certificate  ISO 9001 2008 and BV Product Conformity

5. Size     DN80-DN1600

6.

Internal linings

No internal linings

Portland cement/ high alumina cement/ sulphate resisting portland cement/ resistance hydrochloric cement lining in accordance with ISO 4179

Zinc coating plus bitumen painting

Epoxy coating

Fusion bonded epoxy coating

Others



External coatings

No external coatings

Zinc coating plus bitumen painting according ISO 8179

Metallic zinc with finishing layer

Epoxy coating

Fusion bonded epoxy coating

Others



7. Thickness of wall K9 for ductile iron pipes

K12 without branch / K14 with branch for ductile iron fittings

8. Flange drilled     PN10/ PN16/ PN25 according to BS4504

9. Socket joint     T type ( push-on type) / K type ( MJ type)
