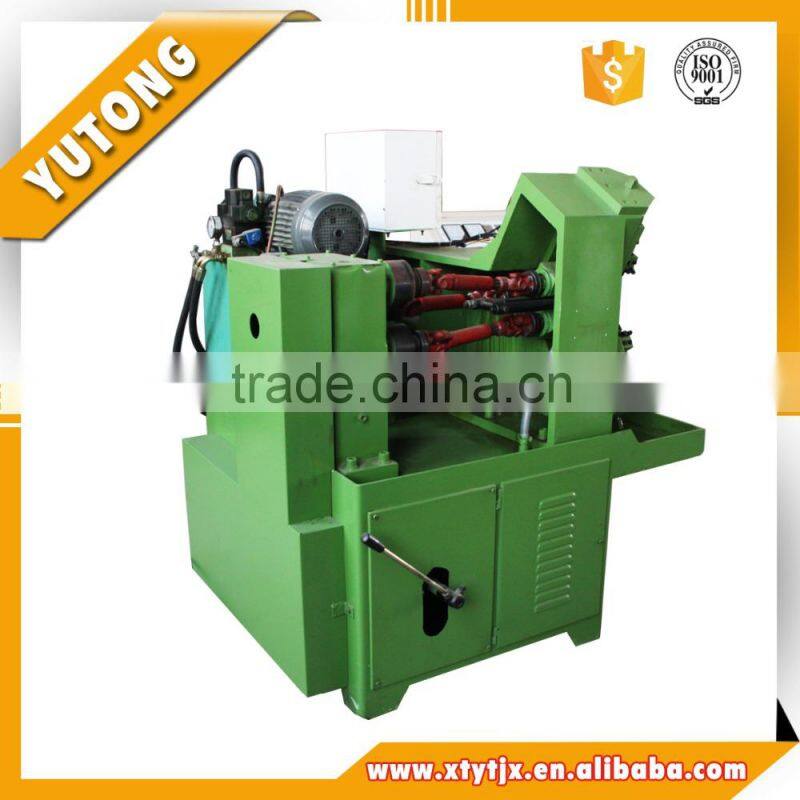

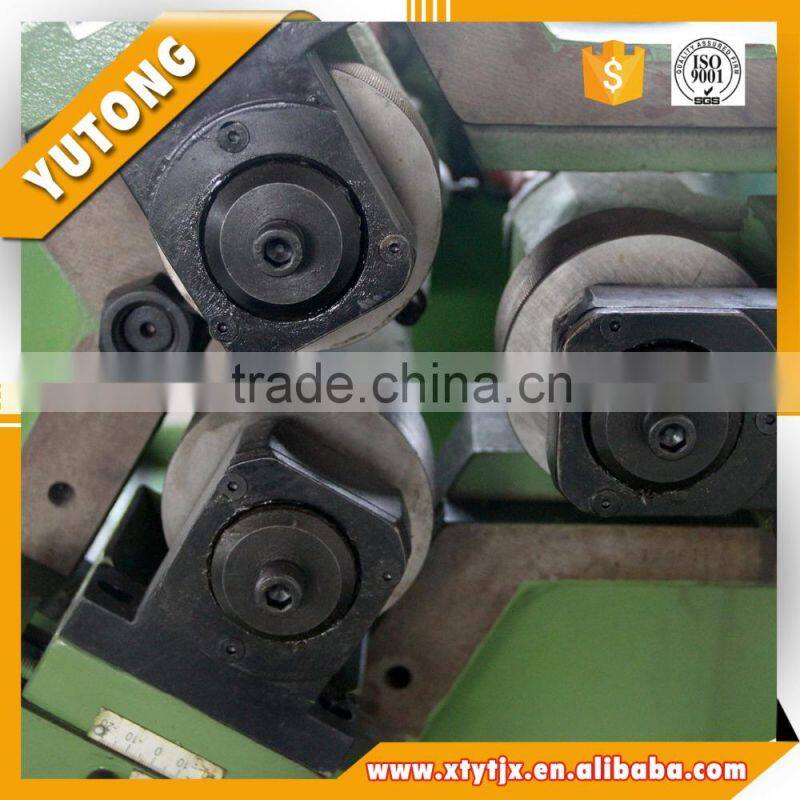

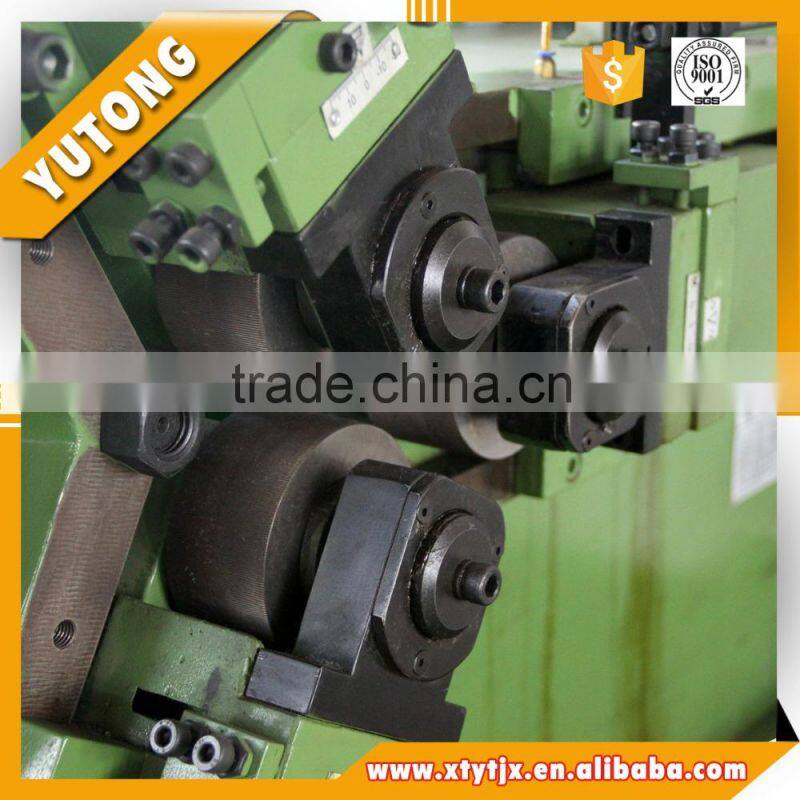

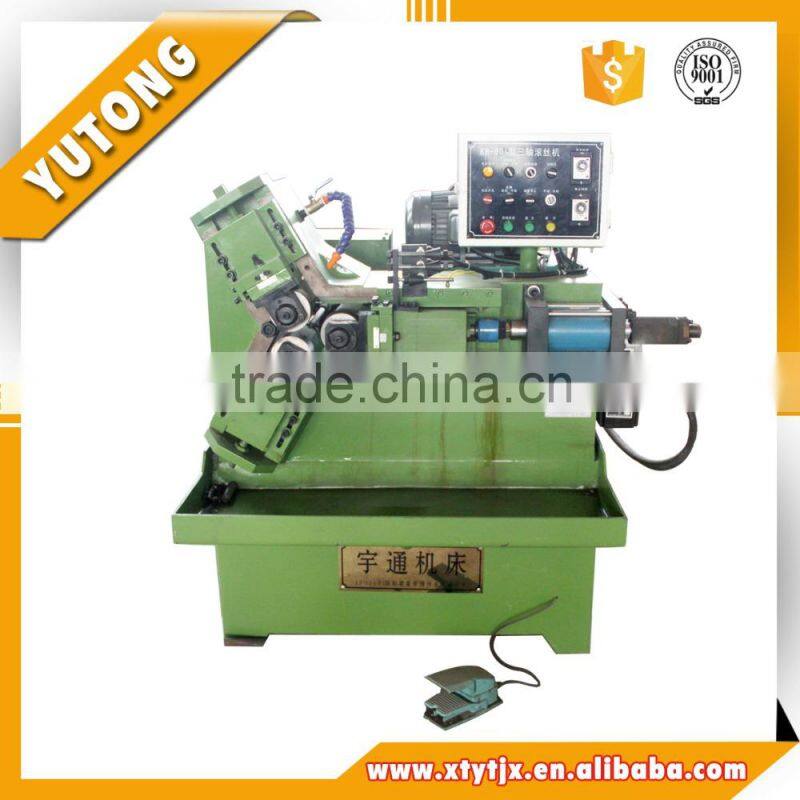

hydraulic tube thread rolling machine used pipe threading machine
Product Description
Designed for tube type workpieces, with triangular supports, so that can ensure the workpieces roundness, concentricity and squareness; fixation and rolling dual purpose. The spindle is controlled by frequency converter, the rolling speed can be adjusted; Adopt hydraulic circuit control, so the feed is smoothly and easily to operation. Driving gear grinds after heating treatment with lower noise and high wear resistance; Suitable for the industries like connector, bicycle, auto fittings and oil tube joint and so on.
Parameters of thread rolling machine:
Rolling screw outer diameter |
Φ9-40mm |
The roller axis travel distance |
90-55mm |
Pitch range |
0.5P-2.5P |
Amount of rolled |
4-25 |
Rolling length |
Fixed / roller (length unlimited) |
Roller Power |
2HP(1.5kw) |
Wheel revolutions |
350.600r.p.m |
Oil pressure Power |
2HP(1.5kw) |
Roller diameter |
Φ78mm(Φ90mm) |
Dimensions |
1300*1100*1500mm |
Axis tilt angle |
Φ35mm |
Total mass |
600kg |
Spindle center distance |
20,40mm |
Tilting angle of roller |
±3° |
Packaging&Shipping
Our Services
Installation and training:
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
