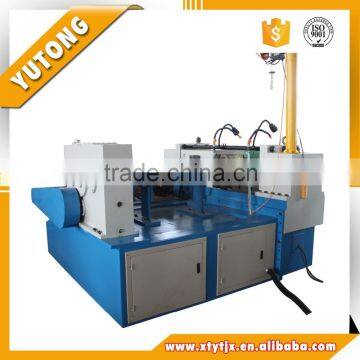

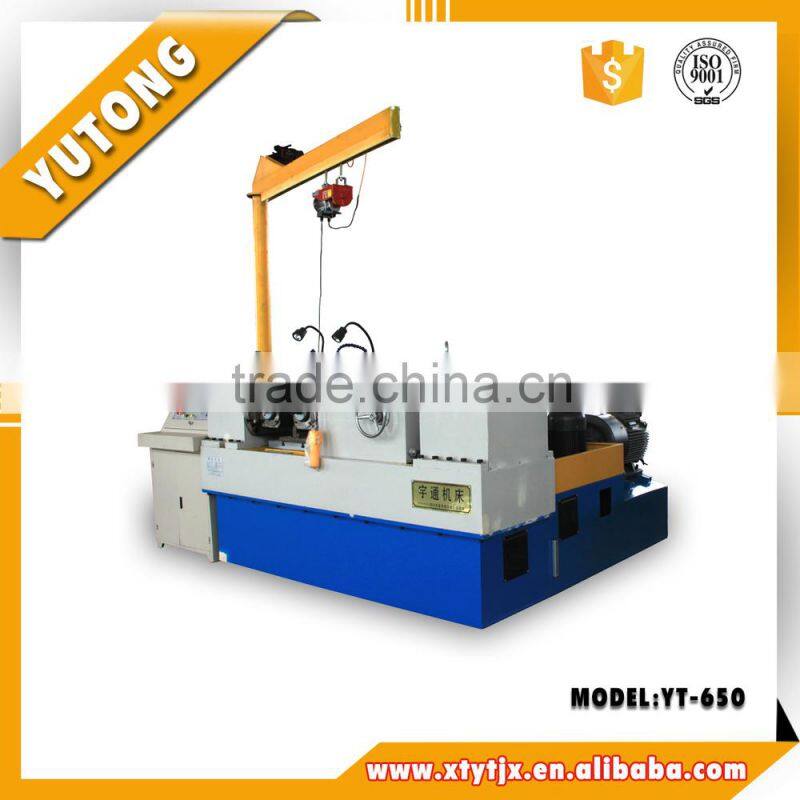

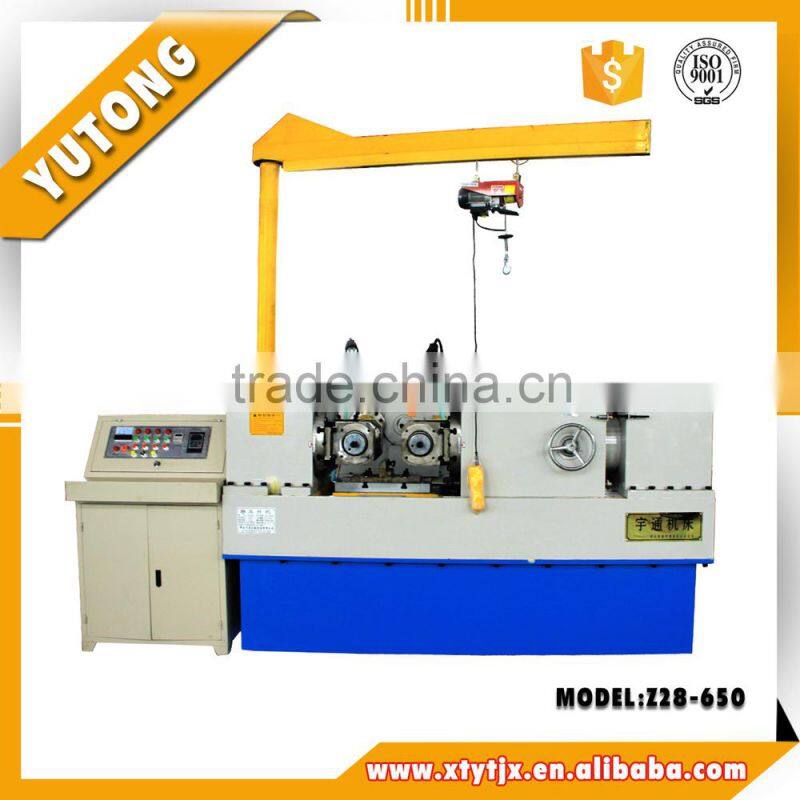

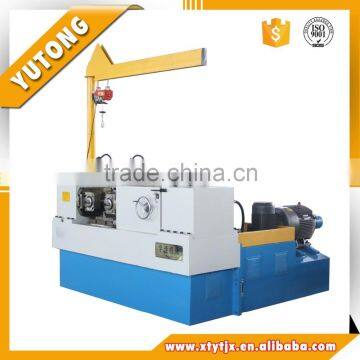

Automatic screwing machine nut bolt making machine steel rod threading machine
Product Description

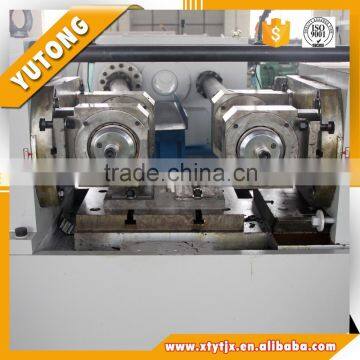

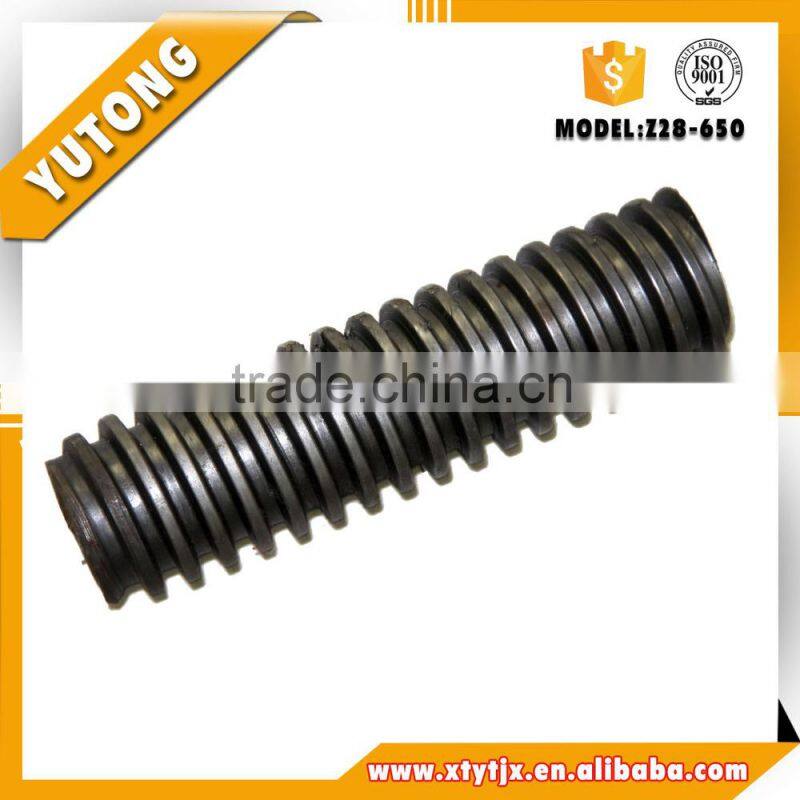

This machine has solid structure, sophisticated manufacturing, strong power advantages. It’s mainly used for rolling various large T-type screw thread, rage of module threads and high strength standard workpieces. It’s adapting to the rolling material, such as the extension rate is greater than 10% and the tensile strength is less than 100N/mm2 of various carbon steel, alloy steel and non-ferrous metals.
Parameters of thread rolling machine:
Max roll pressure |
650KN |
Spindle speed |
16,26,38,55,90(r/min) |
Max rolling diameter |
Φ120mm |
Active Power |
22kw |
Max diameter of rollers |
Φ290mm |

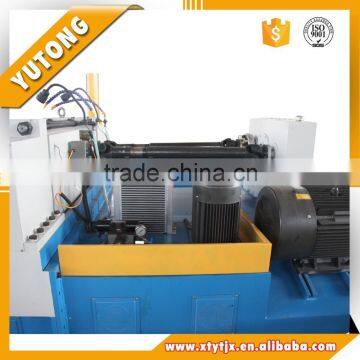

Hydraulic Power |
7.5kw |
Aperture of rollers |
Φ100mm |
Cooling Power |
125w |
Max thickness of rollers |
200mm |
Dimensions |
2300*2450*2700mm |
Axis tilt angle |
±15° |
Total mass |
6100kg±50kg |
Spindle center distance |
300-410mm |
|
Packaging&Shipping
Our Services
Installation and training:
1.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
2.Without visiting, we will send you user manual and video to teach you to install and operate.
3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

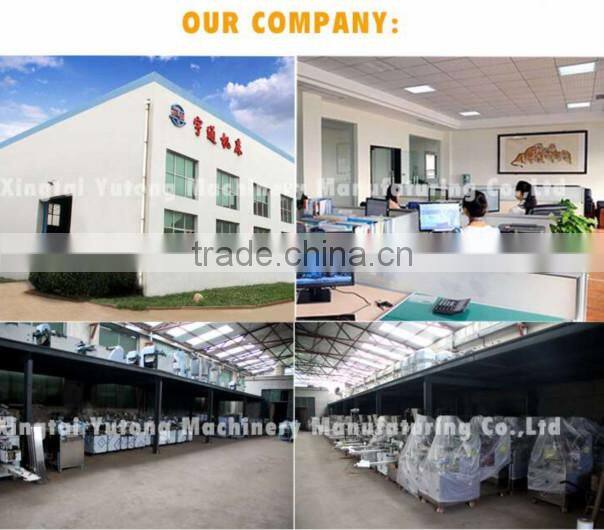

Company Information
