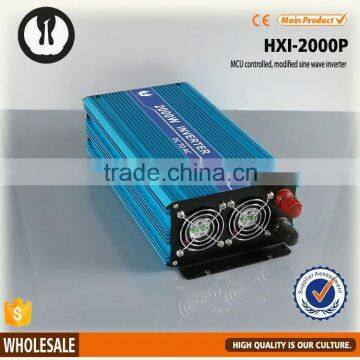

solar power off grid power pcb power inverter 2200w 12v 220v,6 years production experience
Model |
HXI-2K01-P1 |
HXI-2K02-P1 |
HXI-2K04-P1 |
HXI-2K01-P2 |
HXI-2K02-P2 |
HXI-2K04-P2 |
Nominal Input Voltage |
13.2VDC |
26.4VDC |
52.6VDC |
13.2VDC |
26.4VDC |
52.6VDC |
AC Voltage Range |
120±5VAC |
230±10VAC |
||||
No Load Current |
≤0.5A |
≤0.3A |
≤0.25A |
≤0.5A |
≤0.3A |
≤0.25A |
AC Output Frequency |
60±0.5Hz or 50±0.5Hz |
|||||
Continuous Output Power |
2000W |
|||||
Peak Output Power |
4000W |
|||||
Output Voltage Waveform |
Pure Sine Wave |
|||||
Total Harmonic Distortion |
≤3% |
|||||
USB Output Voltage |
NO or Customized |
|||||
USB Output Current |
NO or Customized |
|||||
Input Voltage Range |
11-16VDC |
22-32VDC |
44-62VDC |
11-16VDC |
22-32VDC |
44-62VDC |
Low Voltage Cut Off |
10.0±0.3VDC |
20.0±0.5VDC |
40.0±1VDC |
10.0±0.3VDC |
20.0±0.5VDC |
40.0±1VDC |
Low Voltage Restart |
12.0±0.3VDC |
24.0±0.5VDC |
48.0±1VDC |
12.0±0.3VDC |
24.0±0.5VDC |
48.0±1VDC |
Low Voltage Alarm |
10.5±0.3VDC |
21.0±0.5VDC |
42.0±1VDC |
10.5±0.3VDC |
21.0±0.5VDC |
42.0±1VDC |
High Voltage Cut Off |
16.0±0.3VDC |
32.0±0.5VDC |
64.0±1VDC |
16.0±0.3VDC |
32.0±0.5VDC |
64.0±1VDC |
High Voltage Restart |
15.0±0.3VDC |
30.0±0.5VDC |
60.0±1VDC |
15.0±0.3VDC |
30.0±0.5VDC |
60.0±1VDC |
Max Efficiency |
≥92% |
|||||
Overload Protection |
2010—2300W |
|||||
Input Reverse Protection |
By fuse |
|||||
Input Fuse |
40A×6 |
20A×6 |
10A×6 |
40A×6 |
20A×6 |
10A×6 |
Output Short Circuit Protection |
Yes |
|||||
High Temperature Protection |
≤65°C |
|||||
Cooling Way |
Force-air cooling |
|||||

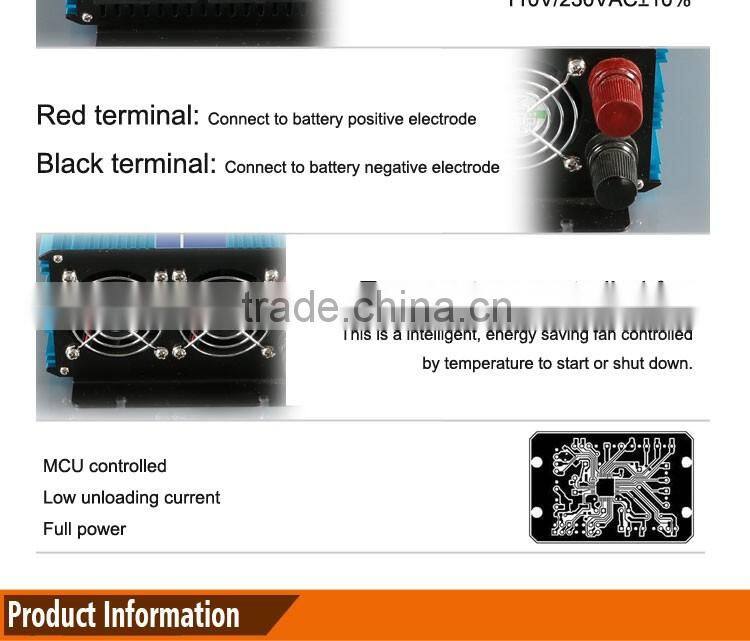

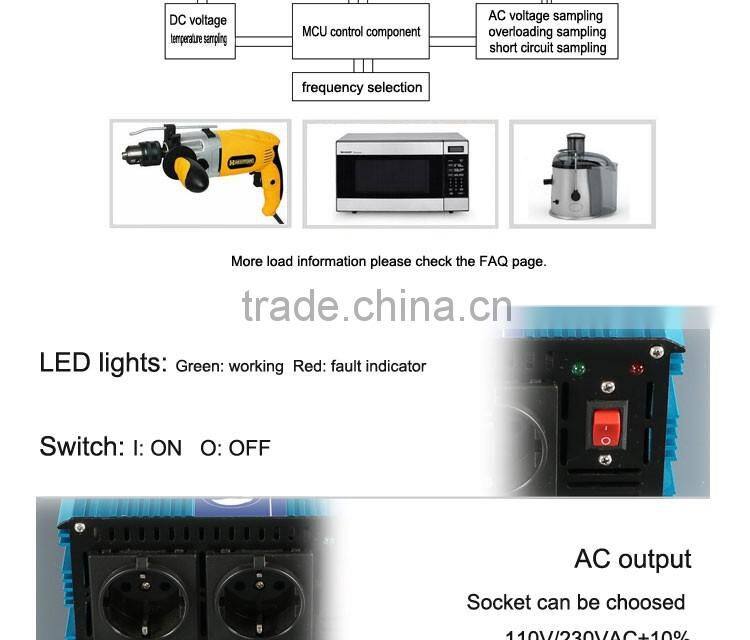

Indicate |
Operating :Green LED |
|||||
Fault :Red LED and Alarm | ||||||
Operating Temperature Range |
-10--40°C |
|||||
Storage Temperature Range |
-20--55°C |
|||||
Operating Relative Humidity |
10---90% |
|||||
Storage Relative Humidity |
5---95% |
|||||
Dimension(L×W×H) |
320*167*92mm |
|||||
Weight(N.W.) |
3400g |
|||||
Out Socket |
A-F |
|||||
Q: How's the delivery time?
A: usually it will take about 15-21 workdays for production.
Q: Could you offer Form A or C/O?
A: It totally not a problem. We can prepare relative documents to forging affairs office or other office to apply for this certificate.
Q: Would you accept to use our logo?
A: If you have good quantity, it absolute no problem to do OEM.
Q: Where is your market?
A: Our products are popular in Egypt, American, and North Africa and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
Q: Does the inverter use directly?
A: No. The inverter is a machine transfer DC voltage to AC voltage. It must connect a power source, like battery and solar panel, then transfer the energy to power the loading products.
>Quality |
RGD less than 2%(Good feedback from our online buyers, agent). |
CE/EMC, ROHS for some items. |
Update our MCU regularly to improve transfer efficiency. |
Pre-sales technical support plan. |
1 year warranty |
|
>Price: |
Update the production cost at irregular intervals to make sure our price is lower 5%-10% than most inverter factories, base on same quality of inverter. |
>Accept ODM: |
Own R&D department: one chief engineer and three maintenance engineers, one structural engineer. |
|
>After-sale service: |
If the goods are broken within 1 year, we will pay the shipment charge to ask you send back or send the free goods to you at next order, as the case may be. |
Unscheduled visit customers and shared new products or marketing information. |
Responding to complaints within 24 hours. |
>Packaging: |
Factory original box, original design on product, orginal package for export carton. |
If need change the label on thebuyer: MOQ 100pcs Free of Charge, base on buyer provide label artwork. |
If need make any silk printing on products: MOQ:1500pcs of each item Free of Charge. |
If need change package quantity in outer carton, or carton material or carton thickness, may cause price increase. |
|
>Delivery time |
Sample: 5-7 days after get your samples request and samples charge. |
Mass production: 15-25 days after order confirmed and get buyer's deposit. |
>Payment terms: |
T/T, 30% deposit in advance, 70% upon shipment. |
