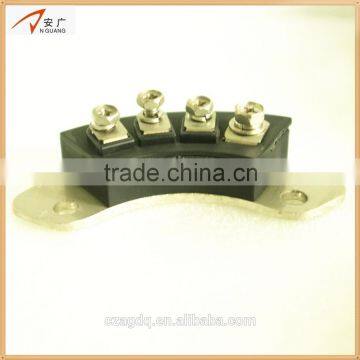

Wholesale China Silicon Power Rectifier Diode

Name: Wholesale China Silicon Power Rectifier Diode
Brand: Anguang
Price: USD $15 - 50 / Piece

FOB Price

USD $15 - $50 / Piece

100 Pieces(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shanghai

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	Anguang	Model Number:	MXG(I)*
Type:	Bridge Rectifier	Application:	Generator	Package Type:	Surface Mount
Peak Repetitive Reverse Voltage:	400V-1800V	Mean On-State Current:	25A-70A

Packaging Details

Depending on the product size, but all ship with standard, secure packaging or customized for Silicon Power Rectifier Diode

Product Description

Silicon Power Rectifier Diode

Product Description

1)ISO9001 & CE

2)10 years professional technical

3)As manufacturer with high quality and low price.

Features

1.High Reliability

2.Low forward voltage drop

3.Space and weight saving

4.Withstand voltage AC 2500v

5.Max junction temperature up to 150°C

6.Simple mounting and easy maintenance
7.Solder joint technology with increased power cycling capability

Applications

Generator Excitation

Specially Designed For Stamford Series Products.

Module Circuit Diagram:

Technical Data

Silicon Power Rectifier Diode

TYPE	IT(AV)	VRRM	ITSM	VTM	IDRM	VISO	RTH
	IF(AV)	VDRM	45℃10ms	VFM	@Tc		RTH
	A	V	A	V	mA	V	℃/W
MXG(Q)*	25	400-1800	350	≤1.3	≤2	2500	0.32
MXY(Q)*	40	400-1800	530	≤1.3	≤2	2500	0.26
MXG(Ⅰ)*	40	400-1800	530	≤1.3	≤2	2500	0.26
MXY(Ⅰ)*	50	400-1800	650	≤1.3	≤2	2500	0.34
MXG(Ⅱ)	40	400-1800	530	≤1.3	≤2	2500	0.26
MXY(Ⅱ)	50	400-1800	650	≤1.3	≤2	2500	0.3
MXG(Ⅲ)	25	400-1800	350	≤1.3	≤2	2500	0.32
MXY(Ⅲ)	40	400-1800	530	≤1.3	≤2	2500	0.26
MXGIV)	50	400-1800	650	≤1.3	≤2	2500	0.3
MXY(IV)	70	400-1800	900	≤1.3	≤3	2500	0.26
MXG(V) MXY(V)	50	400-1800	650	≤1.3	≤2	2500	0.28
	70	400-1800	900	≤1.3	≤3	2500	0.24
	100	400-1800	1300	≤1.3	≤3	2500	0.19
MXG(VI)	40	400-1800	530	≤1.3	≤2	-	0.2
MXY(VI)	50	400-1800	650	≤1.3	≤2		0.29
MXG(VII)	50	400-1800	650	≤1.3	≤2	-	0.21
MXY(VII)	70	400-1800	900	≤1.3	≤3		0.19

Company Profile

Changzhou Anguang Electrical Appliance Co., Ltd.

Established in 2007, we,Changzhou Anguang Electrical Appliance Co., Ltd. are a manufacturer specialized in production of electrical Insulating components,Power Modules and Terminal Blocks with faultless R & D, active sales and perfect after-sales.

We introduced high-tech equipment facilities like vacuum brazing furnace,automatic filling and sealing machines,laser marking to ensure fine quality of our products to meet your different requirements.
Our products are mainly used in the field of welders,generators, UPS,Industrial heating control,AC & DC motor control and Various rectifying power supplying.

With honesty, sincerity,strong technology and good after-sales,we 'll contribute ourselves to your busniess and establish long term mutual banefit with you! Welcome to contact.
