Help CenterTungsten Carbide Wire Drawing Dies
Related Products
Specifications
1. High strength steel2.Good quality, thoughtful services
3. Precise details of proces
Name |

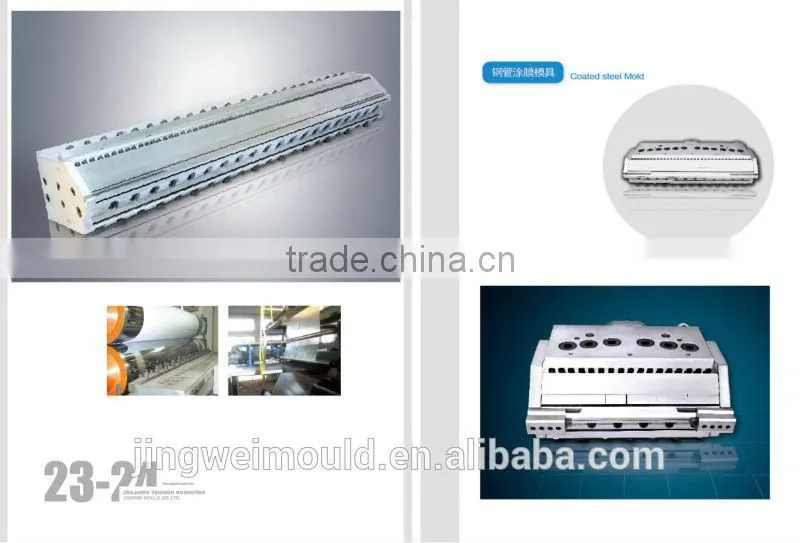

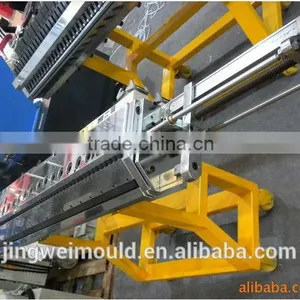

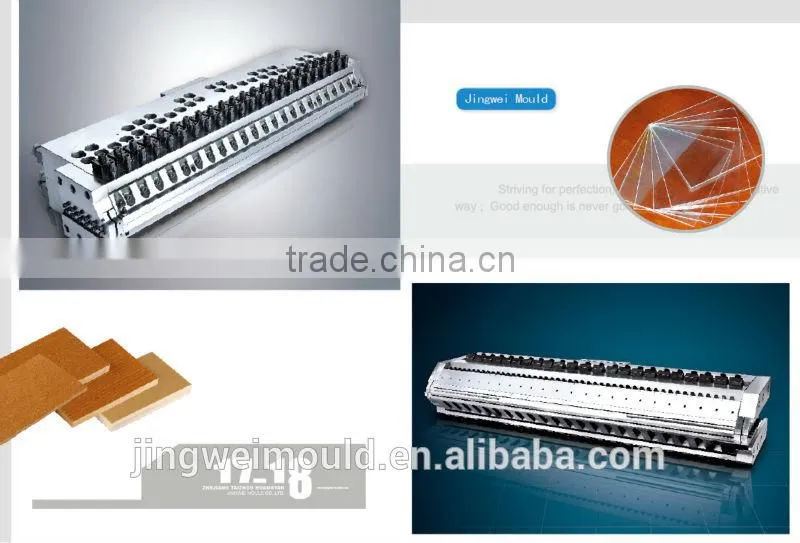

Extrusion coating & laminating die |
Usage for products |
Plastic film CPP / CPE / PP / PE / EVA / LDPE / TPU |
Film thickness |
0.005-0.02mm |
Die width |
300mm-8000mm or per your request |
Die material |
2738 from Germany or P20 |
|
Lips adjustment system (for the upper die lip) |
1.Manual full push flexible fine-turning |
2.Automatic full push flexible fine-turning | |
3.Manual push & pull fine-turning | |
4.Automatic push & pull fine-turning | |
Wide-size adjustment method |
With the reduction of the thick edge, the inner block-type lead screw adjustment device can continuously adjust the die wide-size online to maximize the cost savings. |
Flow channel |
Branch-tube type |
Heat Voltage |
220V or on customer’s request |
Heating way |
Heating bars made of stainless steel from Italy |
Cable connection: |
Close connecting with protection cover |
Screws |
High strength at 12.9 grade |
Polishing |
Lips and surface of flowing: 0.02-0.03(μm),Other surfaces: 0.03-0.04(μm). |
Chrome thickness: |
0.035-0.045mm |
Surface hardness: |
60-70HR |
Feeding type: |
Round or square or special |
Installation |
On costumer’s request |
1. Packaging Detail:
Outside package: Standard export wooden cases;
Inner package: Bubble wrap.
2. Delivery Detail:
Die length< 2000mm : within 30 days, 2000mm<Die length<3000mm, within 45 days.
Our advantage and service
The company wholeheartedly provide you with a full range of technical support and product services with a mature research and development, quality control, sales and service system.
1.Super quality:
1). Scientific Process and meticulous work from beginning to end insure that each set of die is perfect.
2). High quality steel, professional heat treatment, to prolong the maximum service life of dies.
3). Flow designing of dies are scientific and reasonable, reduce the thick edge effectively and make your cost down .
4). Using durable high quality parts: high quality stainless steel heating bar, heating uniformity, stability, high precision.
2. Competitive price, short delivery time
3.Customized products offered
1). Multiple adjustment methods of die lip opening for you to choose, convenient adjustment can save time, save labor costs to improve efficiency
2). Retain a full set of data and provide latingly technical services for you.
4.Before-sale service
We can manufacture the mould as your requirement, you can offer us your own CAD drawings,or we can design the drawings for you.
1.Comprehensive cost control service;
2.Mould designing service;
3.Emergency manufacturing delivery service:;
4.Mold debugging Service;
- 1. After-sale service
1)Timely response ;
2) Quality assurance: meet the actual requirements, three packs of one year of normal production quality.
3) 12months with proper operation by user All of the spare parts to be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.
4)Follow operation manual, normal production, "three guarantees"(for repair, replacement or compensation of faulty products) for one year
5) At the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.
- 2. Profession with good reputation
JWEL Die advantages:
- 1. good quality, continuous improvement of production equipment and processing technology, to enhance the overall performance and quality of the mold.
- 2. good service, warm and attentive service, so that every customer feel Crystal Witt some charm. aftermarket good, sound and efficient after-sales service to solve your worries.
- 3. good reputation, "seven years of casting quality, quality Yu-collar future" in the industry establish a good reputation.
- 4. Good product performance, the same pair of mold can produce products of different sizes and materials, greatly reducing the cost of production
MOQ |
1set |
MOQ Other |
Equipped with spare parts |
FOB Price |
USD 1-10000/SET |
Port |
Ningbo OR Shanghai |
Payment |
T/T |
Supply ability |
1500/sets |
Package |
Wooden case |
Delivery time |
30-35 days |
In the exhibition
We can manufacture the mould as your requirement, you can offer us your own CAD drawings,or we can design the drawings for you.
Comprehensive cost control service;
Mould designing service;
Emergency manufacturing delivery service:;
Mold debugging Service;
Customer production training service;
