2015 Xinyujie Horizontal Air Circulating Fan Motors / Customized Autosmall Compressed Air Motor 5v

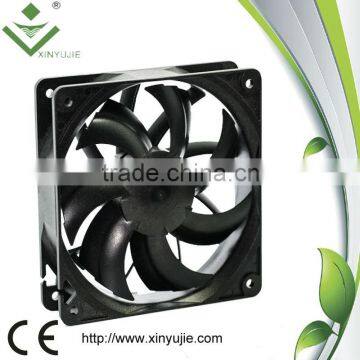

2015 Xinyujie Horizontal Air Circulating Fan Motors / Customized Autosmall Compressed Air Motor 5v photo-1
2015 Xinyujie Horizontal Air Circulating Fan Motors / Customized Autosmall Compressed Air Motor 5v photo-2
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Other
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.
Electric Current Type DC
Mounting Other
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name XINYUJIE
Model Number XYJ05S12032
Voltage 5V
Power 3.6W
Air Volume 78.66CFM
Speed 2000RPM, 2000RPM
Certification CE, CSA, ROHS, UL
After-sales Service Provided No overseas service provided

2015   Xinyujie   horizontal  air circulating fan motors / customized autosmall compressed air motor  5v



Product Description



main parameters:



Model

Rated

Voltage
(VDC)

Start up

Voltage
(VDC)

Current

Amp (A)

Speed
(rpm)

Air flow
(CFM)

Static

Pressure
(Inch-H2O)

Noise

Level
(dB-A)

Weight
(g)

XJ12S12028H

12

6

0.3

2200

91.06

4.87

44

145

XJ12S12028M

12

6

0.23

2000

76.33

3.56

38

145

XJ12S12028L

12

6

0.18

1800

65.6

2.64

34

145

XJ24S12028H

24

12

0.25

2200

91.06

4.87

44

145

XJ24S12028M

24

12

0.2

2000

6.33

3.56

38

145

XJ24S12028L

24

12

0.13

1800

65.6

2.64

34

145

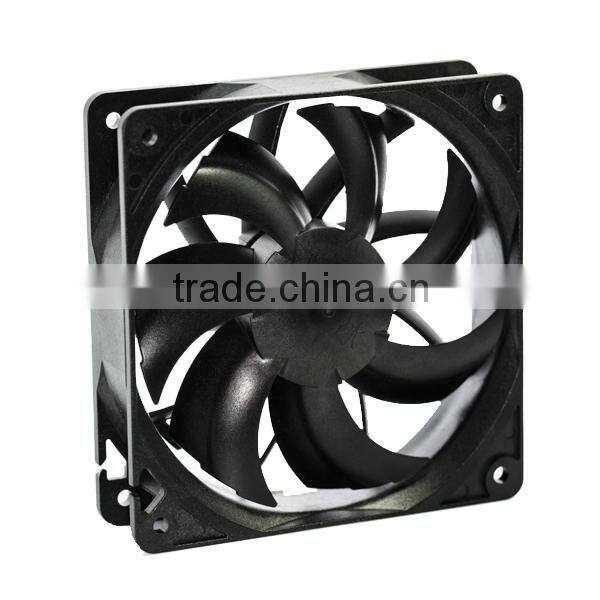

main pictures:




Demension: 120mm*120mm*28mm
2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v



2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v



Optional:

2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v



1. Waterproof IP55 or IP67,you can test the fans in the water,can work in very wet environment. And also you can choose the salt-waterproof craft.



2. Wire leading:2 wire(red wire:positive;black wire:negative)

                             3 wire(red wire:positive;black wire:negative;yellow wire:RD or FG)

                             4 wire(red:positive;black:negative;yellow:FG;green:temperature control)



3. Optional function: auto-restart, temperature control speed, speed detection, stppage alarm, waterfroof etc.

4.

Optional sleeve and ball bearing:



Sleeve bearing:(lower price) Ball bearing:(higher price)
The sleeve was imported from Germany We use the NSK ball which is imported from Japan
Low cost solution High quality, long service life
Stable performance Low noise level
Easy installation Easy installation
                   / Double ball bearing
We warranty 1 year for sleeve bearing fans



We warranty ball bearing fans for 3 years




Noise testing:
2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v



Packaging & Shipping

Delivery time:



1. Samples within 4 days



2. Mass production within 12 days



3. If do the waterproof fan need 1 week more



 Express:2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v



Our Services

Guarantee:

-3 years warranty for ball bearing fans and 1 year warranty for sleeve bearing fans;



-OEM service based on MOQ1000pcs;



-Ordinary material and waterproof material optional;



-Best quality cooling fans produced by ourselves;



-Best service by our sales and engineers;





We have our own produce department and engineer,so all the specification can be customized.



Company Information

Cetificate

2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v

Our workshop

2015 Xinyujie horizontal air circulating fan motors / customized autosmall compressed air motor 5v

Company profile:

-We are an enterprise specialized in developing and producing AC/DC/EC cooling fans.

It is applies to armamentarium, communication device, big server machine, security and protection monitoring, professional power amplifier, indoor air ventilation, instrument and equipment etc.



-We have owned professional R&D department, and we have dozens of patents of utility model and designs.



-We have full series dimension ranging from 25*25*7mm to 172*172*51mm, including sleeve bearing, ball bearing, hydraulic bearing, and the current amp, rated voltage. Speed, air flow can all be customized.



-Our Tenetsothers without I have, people have my superior.
