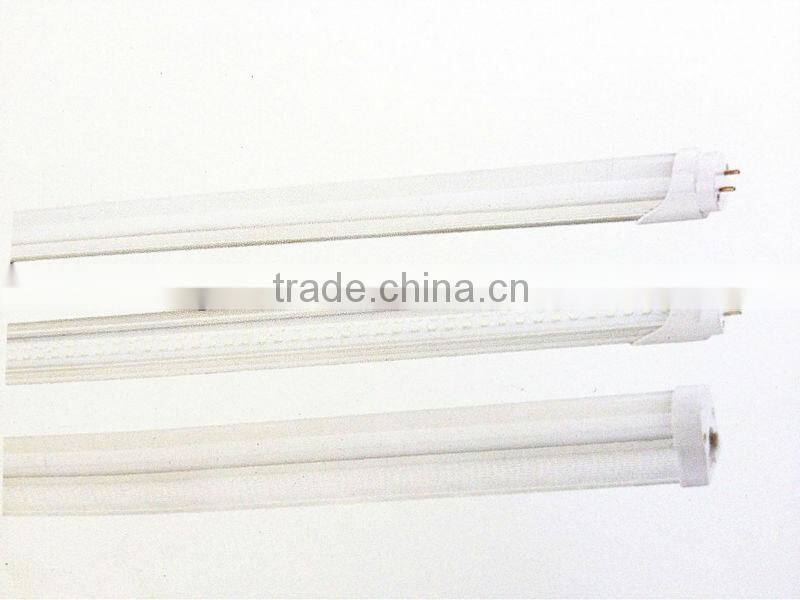

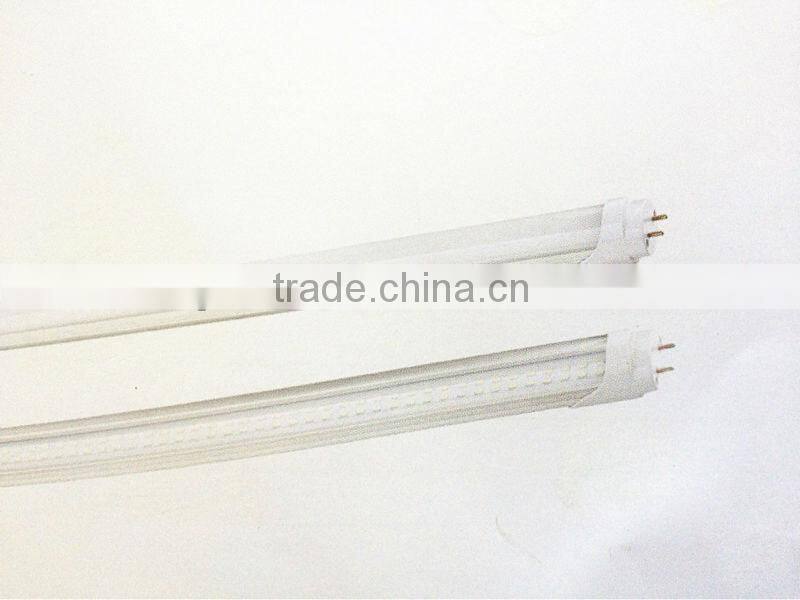

LED FLUORESCENT LAMP T8 SERIES

Specifications

1.Brand Name Edetion
2.P/N ADS-T8-7W
3.Prompt Delivery
4.Accept small order
5.Warranty 3 years

 Specifications:



1. There will be no UV ray and infrared and contains no mercury in LED tube.



2. special heat sink design of LED tube can considerably reduce body temperature so that assure its lifespan over 50000 hours.



3. Integrated design (heat sink is lamp shell) ensure request for heat conduction and elimination of LED and its life.



4. Large heat emission area will keep Ti<50°C (Ta=25°C) when LED working.



5. Creative optical design brings excellent illumination evenness.











Performance:

                         Materials: Aluminum





                                           Lifetime: +50,000hours





                                           Lens beam angle: >120º





                                           Input voltage: AC100-240V





                                           Power Factor: >0.95





                                           Tube Cover: Transparent cover & Milk Cover



T8 Series





Model	Wattage	Voltage	Luminous (lumens)	Efficiency	Color temperature
					Warm white	Nature white	Cool white
ADS-T8-7W	7W	AC100-240V	550±10%	> 80%	2800-3200K	4000-4500K	6000-6500K
ADS-T8-9W	9W	AC100-240V	750±10%	> 80%
ADS-T8-13W	13W	AC100-240V	1050±10%	> 80%
ADS-T8-12W	12W	AC100-240V	950±10%	> 80%
ADS-T8-15W	15W	AC100-240V	1350±10%	> 80%
ADS-T8-18W	18W	AC100-240V	1650±10%	> 80%















T5 Series





Model	Wattage	Voltage	Luminous (lumens)	Efficiency	Color temperature
					Warm white	Nature white	Cool White
ADS-T5-5W	5W	AC100-240V	400±10%	> 80%	2800-3200K	4000-4500K	6000-6500K
ADS-T5-8W	8W	AC100-240V	650±10%	> 80%
ADS-T5-12W	12W	AC100-240V	1050±10%	> 80%
