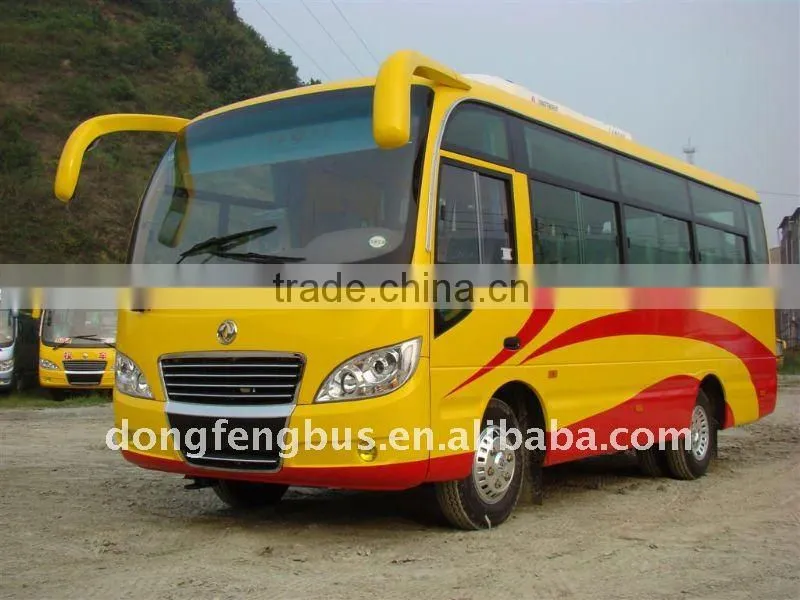

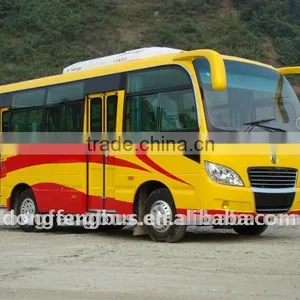

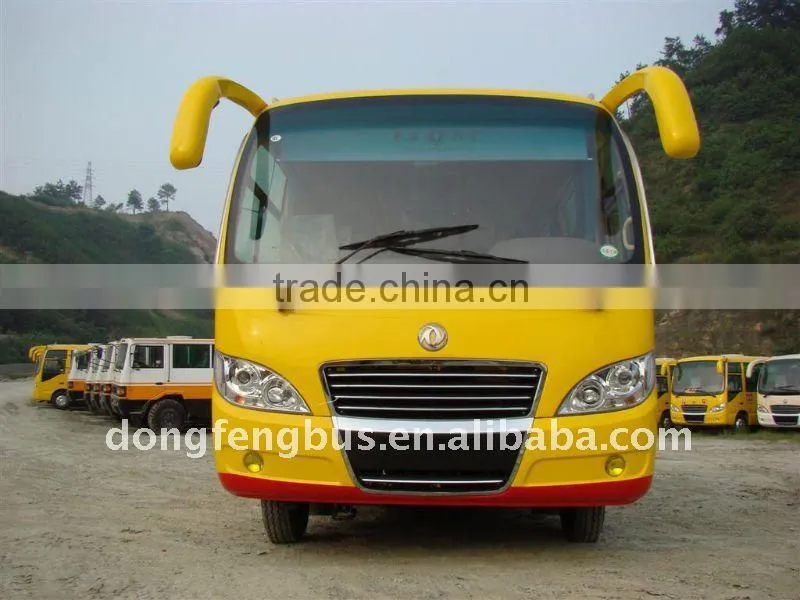

6-7m Dongfeng mini bus

Brand

YUCHAI

Fuel

Diesel

Model

YC4F115-30

Location

Front engined

No. of Cylinders

4

Type

in-line, 4 strokes, water-cooled;

Max.output (kw)

85

Max.Torque (N.m)

300

Displacement (ml)

2982

Emission Standard

Euro III

Dimensions

Overall Length

    6570 mm

Overall Width

2250 mm

Overall Height

2780 mm

Overall Height with AC

2990 mm

Wheelbase

3308 mm

Front Overhang

1160 mm

Rear Overhang

2110 mm

Interior Height

1860 mm

First Step Height

0400 mm

Gross Vehicle Weight

6500 kg

Curb Weight

4420 kg

Max Speed

095 km/h

Seats Capacity

19-32 / 10-24

Luggage Compartment Volume

**

Exterior

Body Type

Semi-integral body construction

Rearview system

Rabbit rearview mirror; manual rearview mirror

Side Window

Upper: glued fixed glass; bottom: sliding sash

Roof hatch

Emergency manual roof hatch x1

Optional: ventilation roof hatch

windscreen

Front : laminated glass; Rear : toughened glass

Defroster

Defroster with changeable power 24V, 130W

Windscreen Wiper

E-controlled bi-direction wiper system

Door

Middle & rear pneumatic folding passenger doors

Optional: driver door

Painting

Domestic Paint

Others

Emergency switch beside passenger door

Optional

High mounted stop lamp

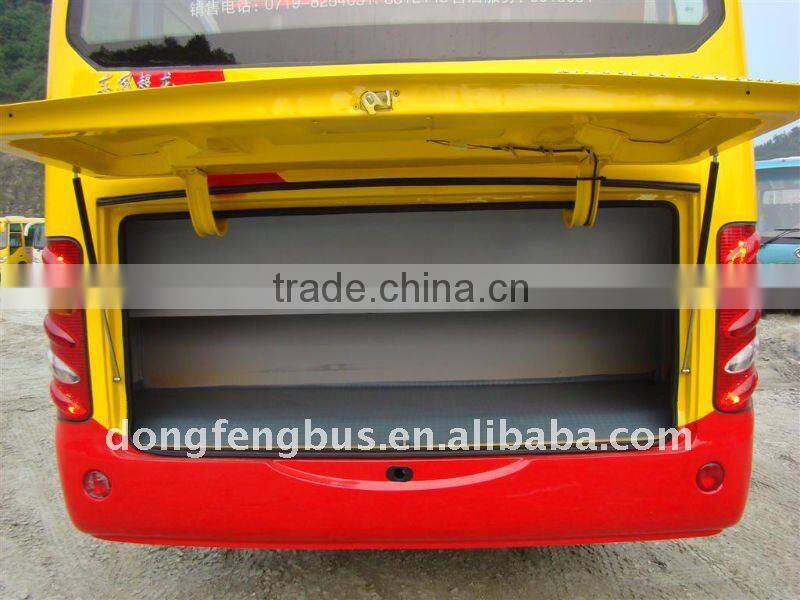

Side luggage compartment

Interior

Interior Trimming

Molding soft grey trimming for ceiling and wall.

Passenger area

Flat floor, PVC covering

Option: high-low floor, iron / aluminum covering

Rack and handrail

Left & right interior handrail with rings

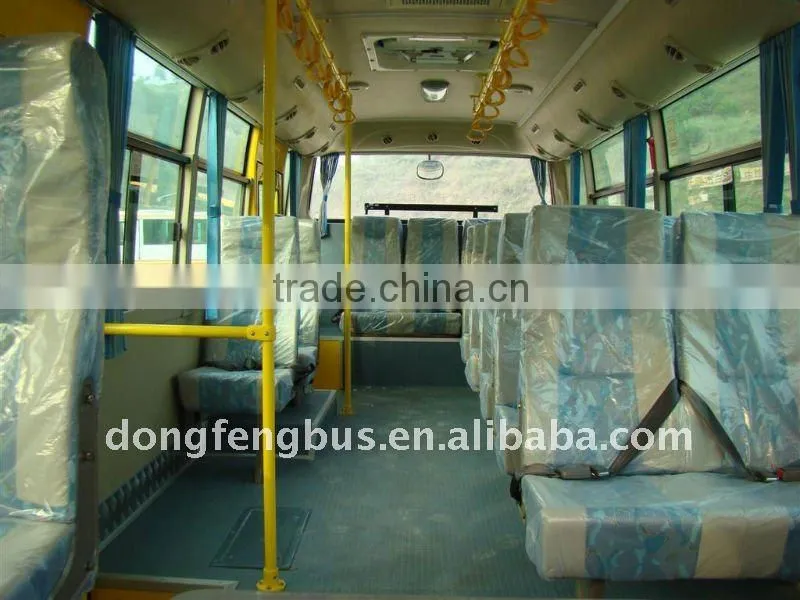

Passenger seats

Common passenger seat with safety belt

Driver seat

High backrest with shock absorption and adjustable

Seat

17 bus seat

Others

Front sun-visor; Foldable side curtain; Air horn

Safety hammer x 2; Fire extinguisher 2kg x1

Optional

Digital road signs board in front & back;

Digital clock with temperature display

7-inch color screen reversing monitoring system

Digital bus-stop announcer ; Remote switch controller

Money collection box; Magnetic card reader;

Bus get off monitoring system;

Water dispenser; Hallway Carpet
