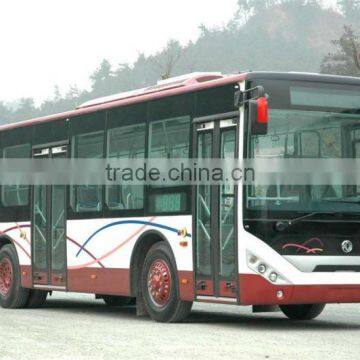

10.5m,20-41,Dongfeng EQ6105CHT city bus

Number

Item

Dongfeng EQ6105CHT

1

Length*width*height(mm)

10490*2500*3020,3200

2

Interior body height(mm)

2280

3

Wheel base(mm)

5000

4

Gross Vehicle Weight(kg)

15000

5

Seat capacity

80/20-41

6

Max speed(km/h)

85

7

Engine model

WP7.210E30,YC6J200-30

8

Max output(kw)

155/147

9

Max torque(N.m)

800(900)/730

10

Position/fuel

Rear/diesel

11

Engine type

Water-cooled,6 cylinders, four strokes,

turbocharger inter-cooling

12

Chassis model

EQ6100H3AC

13

Gear box

QJ805

14

Clutch

Single plate, dry friction, diaphragm spring

15

Front/rear axle

5.5T/10T

16

Suspension

Front 3 rear 4,the shock absorber is DongfengZF

17

Steering

Power steering

18

Brake

Dual circuit power brake with pneumatic

19

Fuel tank

160L

20

Tyre

10.00-20,10.00R20,11R22.5

21

Others

Adjustment arm, air dryer

22

Body structure

Semi-integral

23

Door

Front and middle pneumatic inner-swing door

24

Side window

The last side window and the driver window are push-pull one, the rest is whole sealed.

25

Air condition(optional)

Dongfeng Pai’en top-mounted A/c,32kw,

Bitzer compressor

26

Audio visual system

MP3 player

27

Lamps

New circular lamps both front and rear, inner double LED lamps

28

Seats

City bus seat

29

Optional

Eddy current retarder, vehicle travelling data recorder, monitor for reversing, electronic bus-stop annunciator , money collection box(manual or electric),the side window is whole sealed or whole push-pull, light box type route board both front and rear, LED roll route board
