Specifications

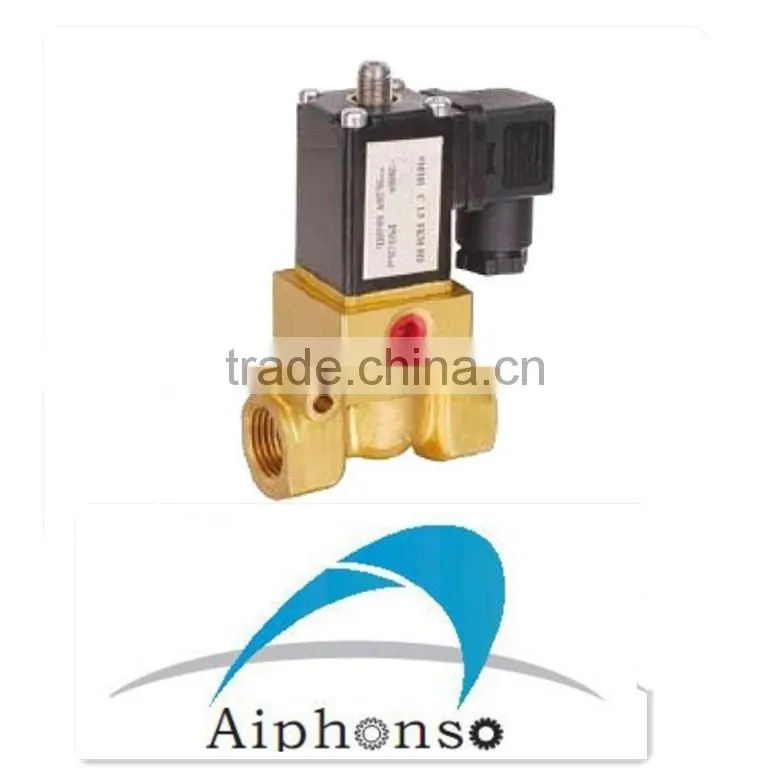

0311 Series 4/2 way Solenoid Valves1, 4/2 way
2, Mainly used in air compressor
Ordering Code
| 0311 | - | 08 | - | M5 | - | AC110V |
| 4/2 Way | Port Size | Middle Port Size | Standard Voltage | |||
| 08:1/4" | Blank:1/8" | DC12V | ||||
| 10:3/8" | M5 | DC24V | ||||
| 15:1/2" | AC24V | |||||
| AC110V 50HZ/60HZ | ||||||
| AC220V 50HZ/60HZ | ||||||
| AC380V 50HZ/60HZ | ||||||
Specification
| Model | 311 |
| Orifice Size | Top:2mm |
| Body:13mm | |
| CV Value | 3.6 |
| Port Size | Top:1/8" |
| Middle:1/8",M5 | |
| Body:1/4",3/8",1/2" | |
| Working Pressure | 0.05~1.2MPa |
| Temperature | -5~85℃ |
| Body Material | Brass |
1. Mainly used in air compressor to control loading,off-loading,pressurizing,decompression,inlet,exhaust automatically.
2. It has the character of high pressure-proof,flexible acting,low demand of media purity because of piston construction and viton seal.
3. It is 4/2 way solenoid valve,one inlet port, two working ports,one exhaust port,It is same with function of one 2/2 way(normally close type) and one 3/2 way solenoid valve.
4. It can reduce the cost of material and manufacturing,also can make the pipe line simple,This valve is with simple construction,small size,good sealing,easy fixing.
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.
