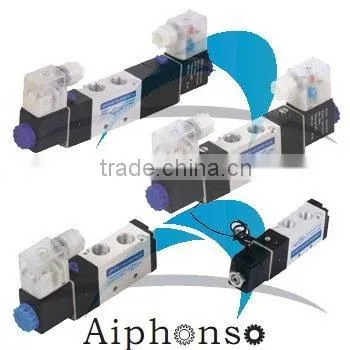

4V 5/3 way valve Solenoid Valve

Specifications

1.Material: Aluminum
2.Working Pressure: 0.2~0.8Mpa
3.Number of coil and position: 5/2 5/3
4.Ambient Temperature: -5~50

4V Series solenoid vavle

Our factory manufactures this vavles with different matierials,looked more beautiful.And it endures rubbing and has a long service life.

specification follows:

1)  Actuate form: Interior pilor

2)Pressure range: 015-0.8MPa

3)Temperature: -5-50^oC

4)Maximum actuate frequency: 5times/s

5)Excitation time: 0.05s

6)Port size: PT1/8", PT1/4", PT3/8", PT1/2"

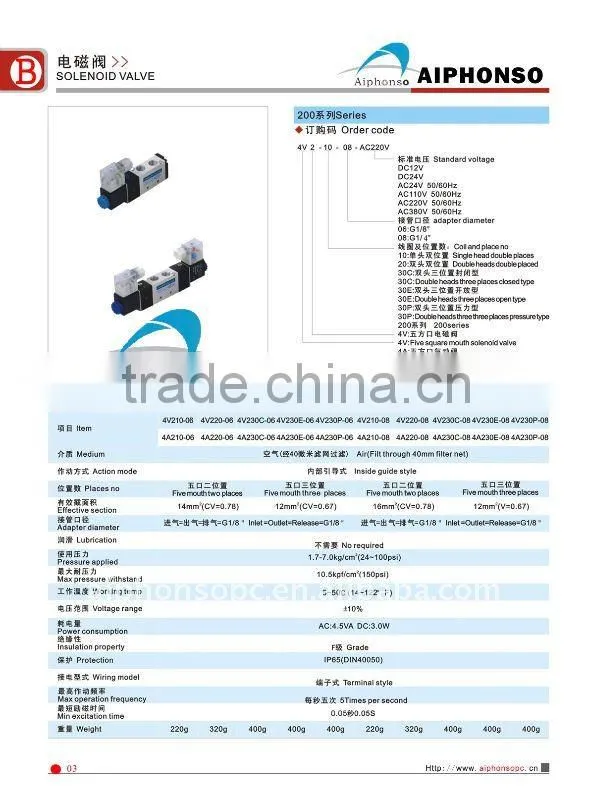

odering code

   4V          -       1    10           -        06     -     AC220V

    ↓                          ↓                      ↓                ↓

Model                     coils                port size     voltage

3v: 3/2 ways       10:single-head

4v:5/2 5/3 ways   20 double-head
