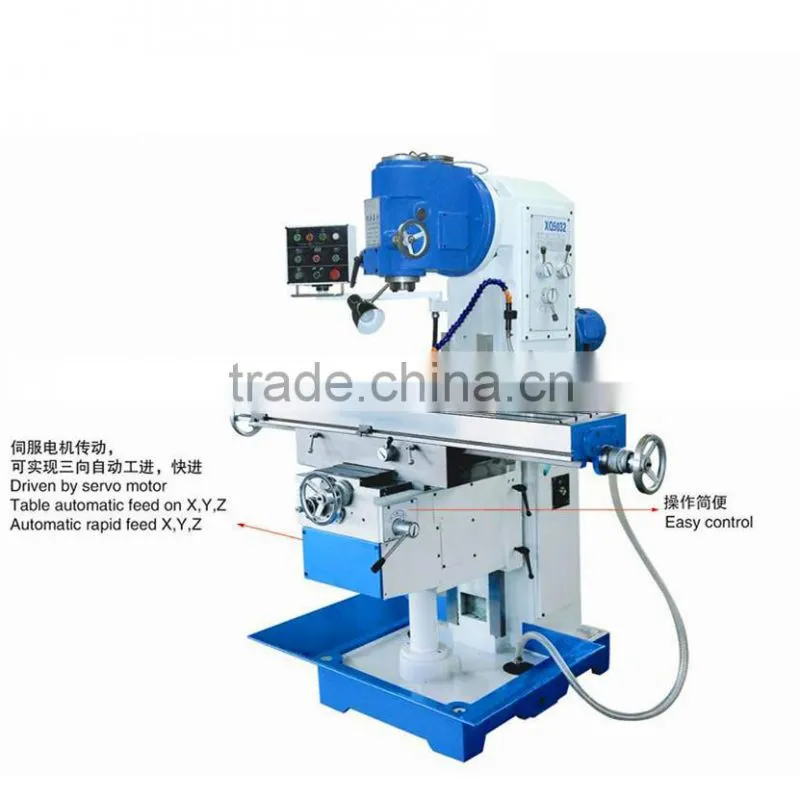

X5032B Vertical Key Cutting MACHINE

Name: X5032B Vertical Key Cutting MACHINE
Brand: TZHISING
SKU: 122086519

US$ 1 - 7,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT SHANGHAI PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number XQ5032B

Type Vertical

CNC or Not Normal

Voltage 380V/415V/220V

Power(W) 3

Dimension(L*W*H) 1720X1680X1810

Weight 1600KG

Certification ISO9001, CE

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

MAIN FEATURES OF XQ5032B Vertical Key cutting MACHINE :

1. CAST IRON OF HIGH RIGIDITY.

2. GUIDEWAYS QUENCHED AND FINE GRINDED.

3. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE.

4. DIFFERENT COLORS REQUESTS ACCEPTABLE.

5. OEM SERVICE PROVIDED

6. 3 AXIS AUTOMATIC FEEDING AND RAPID FEEDING DRIVEN BY AC SERVO MOTOR

MAIN SPECIFICATION OF XQ5032B Vertical Key cutting MACHINE :

pecification	Unit	XQ5032	XQ5032A		XQ5032B	XQ5032C
Table size	mm	1270X320	1370X320		1270*320	1370*320
Table Travel (X/Y/Z)	mm	720/300/400	820/300/400		900/380/400	1000/380/400
Distance from spindle nose to work surface	mm	35-435
Spindle hole taper	---	7:24 ISO40
Rapid speed of table (X/Y/Z)	mm/min	1000/1000/750
Table feed (X/Y/Z)	mm/min	Variable
T-slots(NO./Width/Pitch)	mm	3/14/80
Spindle speed range	r/min	12steps 35-1500
Stroke of spindle quill	mm	70
Distance between spindle axis and column guideway	mm	285
Swivel angle of Vertical milling head	---	±30°
Main motor power	kw	3
Torque of X/Y/Z axis AC servo motor	N.m	10
Overall size	mm	1720X1680X1810		1820X1680X1810	1720X1680X1810	1820X1680X1810
Net weight	kg	1550		1600	1600	1650
