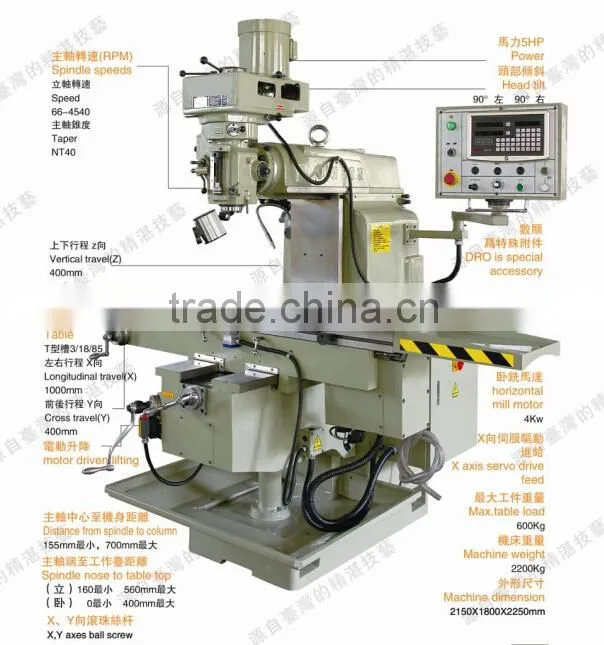

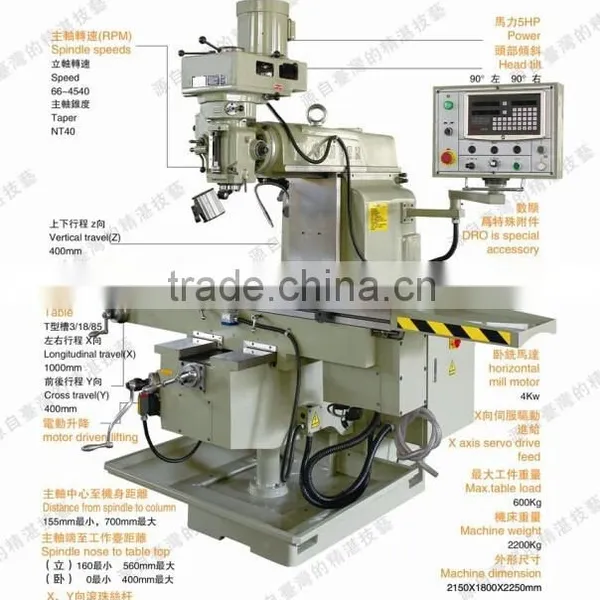

New Vertical After Sale Service Provided Bridgeport Milling Machine

Name: New Vertical After Sale Service Provided Bridgeport Milling Machine
Brand: TZHISING
SKU: 122086303

US$ 1 - 6,570 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT SHANGHAI PORT TIANJIN PORT GUANGZHOU PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number 6VMB

Type Vertical

CNC or Not Normal

Voltage 380V/220V/415V

Power(W) 3.7KW

Dimension(L*W*H) 2150X1800X2250MM

Weight 2200MM

Certification CE ISO9001

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Main Features of new vertical after sale service provided bridgeport milling machine:

Table size: 330x1500mm

X/Y/Z axis travel:1000x380x400mm

Worktable quenched and fine grinded.

Taiwain turret milling head 3.7KW,

Spindle taper NT40,

OEM services provided

Voltage can be specially ordered.

Color can be specially ordered.

Main Specifications of new vertical after sale service provided bridgeport milling machine:

Specification	4H	5H	6VMB
Table size (mm)	1270×254	1370×305	1500x330
T slots (N/W/D)	3/16/65	3/16/65	3/18/85
Longitudinal travel (mm)	750 (850 manually)	750(850 manually)	1000
Cross travel (mm)	400	400	380
Vertical travel (mm)	400	400	400
Quill shaft travel (mm)	127	127	127
Distance between spindle center and column (mm)	170-520	170-520	155-700
Distance between spindle nose and table surface (mm)	0-460	0-460	160-560
Arm travel (mm)	400	400	450
Milling head tilting	90° (Left&Right); 45° (Front&Back)	90° (Left&Right); 45° (Front&Back)	90° (Left&Right);
Spindle taper	R8	NT40	NT40
Spindle speed (r/min)	66-4540(16 steps)	66-4540(16 steps)	66-4540(16 steps)
Power of spindle motor (kw)	2.2	3.7	3.7
Max table safety load (kg)	350	350	600
Overall size (mm)	1600×1700×2250	1750×1650×2100	2150X1800X2250
Net weight (kg)	1200	1500	2200
