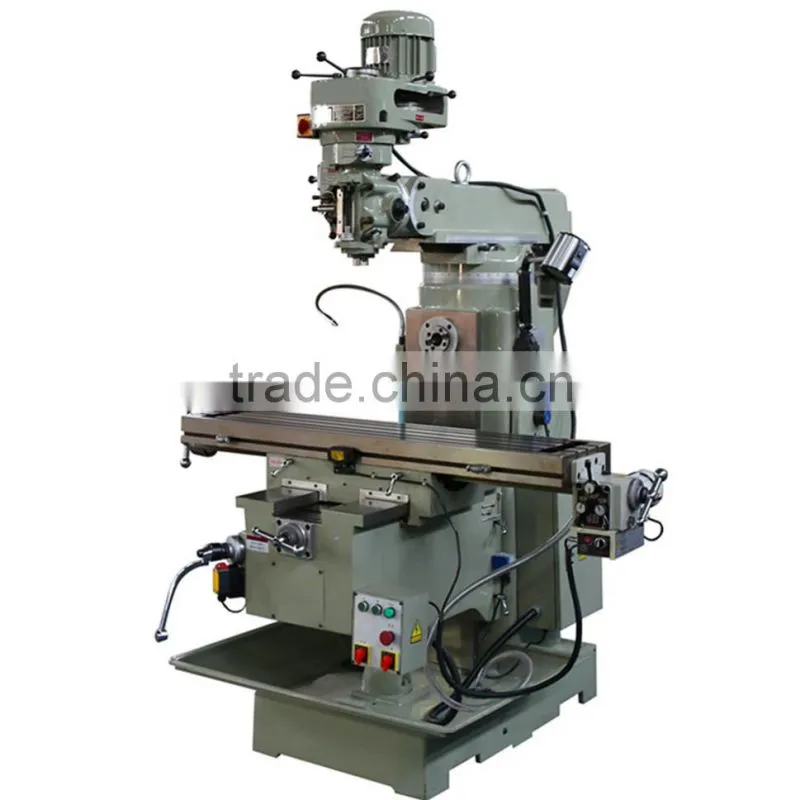

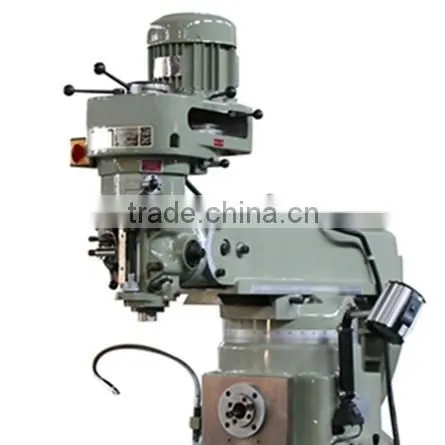

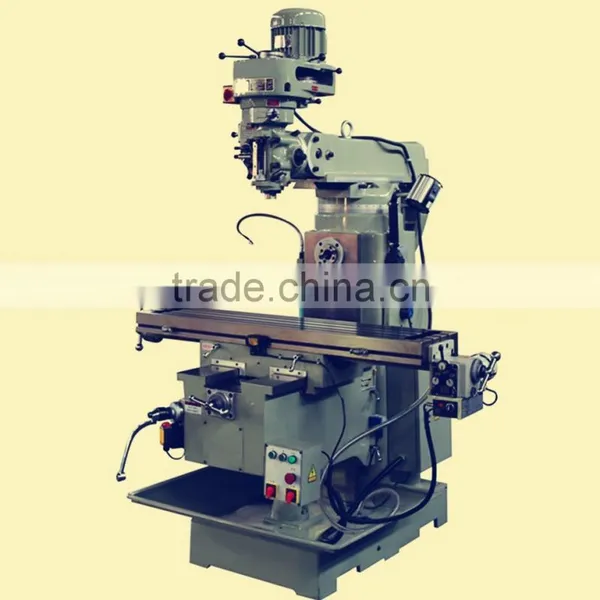

X6330W Universal Milling Machine Price With Horizontal Milling and Vertical Milling

Name: X6330W Universal Milling Machine Price With Horizontal Milling and Vertical Milling
Brand: TZHISING
SKU: 122086361

US$ 1 - 5,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT SHANGHAI PORT TIANJIN PORT GUANGZHOU PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number X6330W

Type Universal

CNC or Not Normal

Voltage 380V/220V/415V

Power(W) 5HP

Dimension(L*W*H) 1750x1650x2340

Weight 1550

Certification CE ISO9001

Warranty 12 MONTHS

After-sales Service Provided Engineers available to service machinery overseas

Main Features of X6330W universal milling machine price with horizontal milling and vertical milling:

Table size: 305x1370mm

X/Y/Z axis travel:800x380x360mm

Worktable quenched and fine grinded.

X, Y AXIS POWER FEED

milling head 2.2KW(V),3KW(H), Variable speed turret milling head available,

Spindle taper R8(V);NT40(H),

OEM services provided

Voltage can be specially ordered.

Color can be specially ordered.

Main Specifications of X6330W universal milling machine price with horizontal milling and vertical milling:

Specification	Unit	X6325W	X6330W
Table size	mm	1270X254	1370x305
T slot		3/16/65	3/16/65
Longitudinal travel	mm	750(850manually)	800
Cross travel	mm	400	380
Vertical travel	mm	400	360
Quill travel	mm	127	127
Spinedle and Column distance	mm	155-635	155-635
Spindle and table distance	mm	0-640	0-460
Arm travel	mm	400	500
Milling head tilting	degree	90(left right)45(front back)	90(left right)45(front back)
Spindle taper		R8(V);NT80(H)	R8(V);NT80(H)
Spindle speed	r/min	66-4540(V);40-1300(H)	66-4540(V);40-1300(H)
Spindle motor power	kw	2.2(V);3(H)	2.2(V);3(H)
Table load	kg	350	350
Overall size	mm	1750x1530x2340	1750x1650x2340
Net weight	kg	1380	1550
