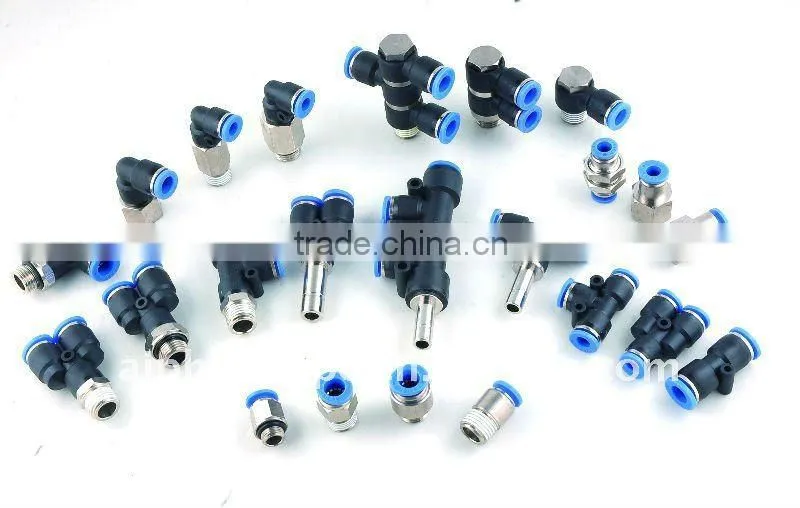

Peumatic fitting IPLF
One-Touch tube fittings are used in pneumatic piping.
. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
. Even after installation, the direction of the tube can be changed freely.
. Nickel-Pated metal body ensures Anti-Corrosion and Anti-Contamination.
. All R and NPT threads are Pre-Coated sealant.
MODEL ( D-T) | |||||
Tube (Metric)-Thread ( R ) |
Tube (Inch)-Thread(NPT) |
||||
IPLF04-M5 |
IPLF06-02 |
IPLF10-04 |
IPLF5/32-N01 |
IPLF5/16-N01 |
IPLF3/8-N04 |
IPLF04-M6 |
IPLF06-03 |
IPLF12-02 |
IPLF5/32-N02 |
IPLF5/16-N02 |
IPLF1/2-N01 |
IPLF04-01 |
IPLF08-01 |
IPLF12-03 |
IPLF3/16-N01 |
IPLF5/16-N03 |
IPLF1/2-N02 |
IPLF04-02 |
IPLF08-02 |
IPLF12-04 |
IPLF3/16-N02 |
IPLF5/16-N04 |
IPLF1/2-N03 |
IPLF06-M5 |
IPLF08-03 |
|
IPLF1/4-N01 |
IPLF3/8-N01 |
IPLF1/2-N04 |
IPLF06-M6 |
IPLF10-02 |
|
IPLF1/4-N02 |
IPLF3/8-N02 |
|
IPLF06-01 |
IPLF10-03 |
|
IPLF1/4-N03 |
IPLF3/8-N03 |
|
Features
. One-Touch tube fittings are used in pneumatic piping.
. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping.
. Even after installation, the direction of the tube can be changed freely.
. Nickel-Plated metal body ensures Anti-Corrosion and Anti-Contamination.
. All R and NPT threads are Pre-Coated sealant.
. All cylindrical threads are standard with O-Ring seals.
Fluid |
Air,Vacuum |
Operating Pressure |
0~1.0Mpa |
Negative Pressure |
-100Kpa(10Torr) |
Max Pressure |
1.5Mpa |
Operating Temperature |
5~60OC |
Applicable Tube |
Nylon and Polyurethane |
