Top Quality Vertical Boring Milling Machine for Sale

Name: Top Quality Vertical Boring Milling Machine for Sale
Brand: TZHISING
SKU: 122085867

US$ 9,800 - 19,500 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number T7220C/T716A

Type Vertical

CNC or Not Normal

Voltage Customer Requirement

Power(W) 5.5kw

Dimension(L*W*H) 2450*2230*2612

Weight 4000kg

Certification ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

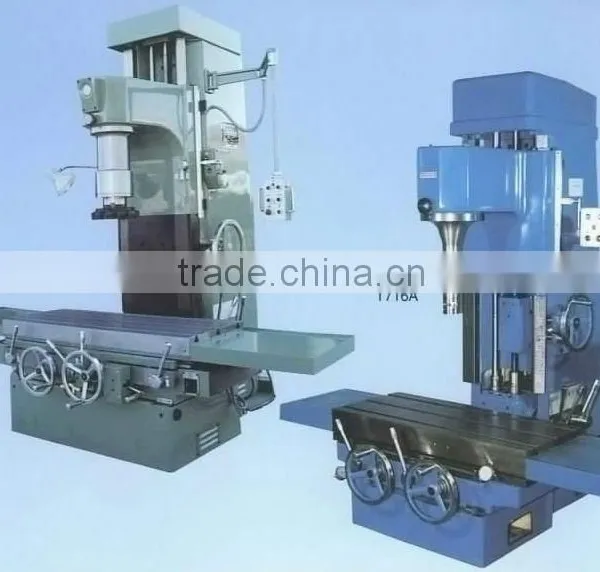

The Specification of Vertical Boring Milling Machine for sale (T7220C/T716A):

Model		T7220C		T716A
Max. boring diameter		200mm		165mm
Max. boring depth		500mm		410mm
Milling cutter-head diameter		250mm	315mm	—
Max. milling area(L×W)		850×250mm	780×315mm	—
Spindle speed range		53-840rev/min		190-600rev/min
Spindle feed range		0.05-0.20mm/rev		0.05-0.20mm
Spindle travel		710mm		550mm
Distance from spindle axis to carriage vertical plane		315mm		315mm
Table longitudinal travel		1100mm		700m
Table longitudinal feed speed		54,108mm/min		—
Table longitudinal quick move speed		1500mm/min		—
Table cross travel		100mm		—
Accuracy	Boring dimension	1T7		1T7
	Milling dimension	1T8		—
	Rounded	0.005		0.005mm
	Cylindricity	0.01/300		0.01/300
Total motor power		5kw		4.5kw
Overall dimensions (L×W×H)		2450×1590×2620mm		1740×1840×2230mm
N.W./G.W.		3600/4000kg		2500/3000kg
Packing dimension		1850×1800×2190		1800×1420×219mm
