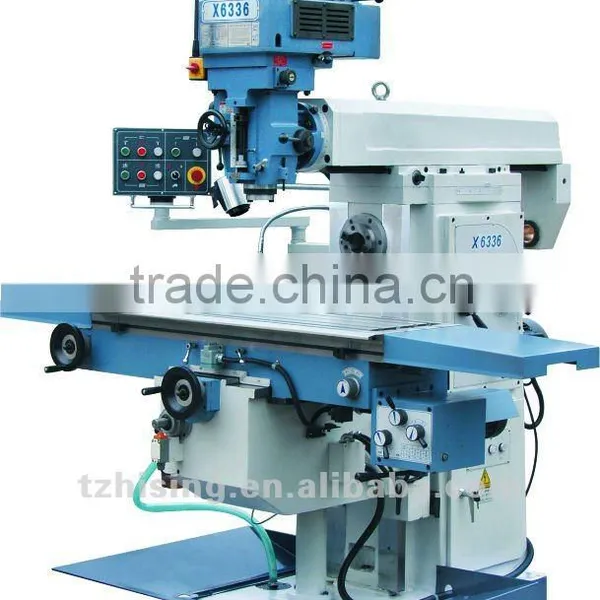

X6336 Universal Milling Machine for Sale

Name: X6336 Universal Milling Machine for Sale
Brand: TZHISING
SKU: 122085871

US$ 7,500 - 9,700 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TZHISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TZHISING

Model Number X6336/XL6336

Type Universal

Voltage Customer Requirement

Power(W) 5.5kw

Dimension(L*W*H) 1500*1680*2100

Weight 2650KG

Certification ISO9001:2008

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

The Features of XL6336 Universal Milling machine for sale:

Table size: 1250x360mm

Table travel(X,Y,Z axis):1000x300x400mm

Spindle taper: ISO40 (vertcal); ISO50 (Horizotal)

Spinlde Speed:70-7200r.p.m(vertical), 60-1800r.p.m(horizontal)

Distance from vertical spindle to table:135-535mm

Distance from horizontal spindle to table:0-400mm

Motor Power:5.5KWHP(vertical), 4KW(horizontal)

7.5HP milling head;

X,Y axis power feed ;

Z axis motor feed

The Specification of X6336 Universal Milling Machine for sale:

Model	X6336
Spindle taper	ISO40(V) ISO50(H)
Diameter of quill	120 mm
Distance from spindle to table	135-535 mm
Distance between spindle axis and boom	230 mm
Distance from spindle to column	200-700 mm
Spindle speeds	80-7200 r.p.m(V) 60-1800 r.p.m(H)
Spindle travel	145mm
Feeding of quill	(3steps)0.04 0.08 0.15
Max. drilling capacity of auto-feeding	Ø10 mm
Head movement	±45°
Table size	1250×360 mm
Table travel	1000/320/400 mm
Feeding range of longitudinal cross travel	22-555 mm/min(8 step)
X,Y-axis rapid feed speed	1080 mm/min
Z-axis rapid feed speed	590 mm/min
Z-axis motor power	1.1kw
Max. weight of workpiece	400kg
T-slot (number-width-distance)	3/18/80 mm
Milling head moving(vertical)	7.5 HP(V) 4kw(H)
Crossing slide way	90W (25L)
X,Y axis driving motor	750W
Overall dimension	2220×1790×2360 mm
Packing size	1800×1900×2250 mm/2300×1900×2250 mm
N.W./G.W.	2450/2650 kg(4900/5200 kg)
