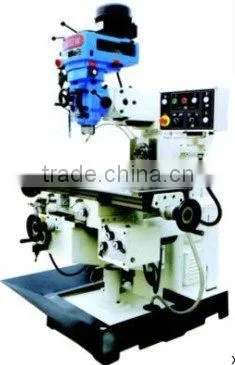

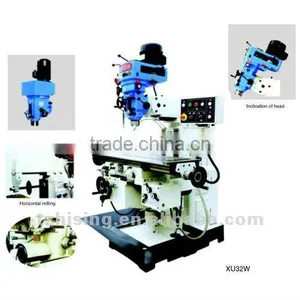

XU32W Universal Radial Milling Machine

Name: XU32W Universal Radial Milling Machine
Brand: HISING
SKU: 122085651

US$ 5,550 - 6,800 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

HISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name HISING

Model Number XU32W

Type Vertical

CNC or Not Normal

Voltage Customer Requirement

Power(W) 2.2KW

Dimension(L*W*H) 1700x1500x2200mm

Weight 1600kg

Certification ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

The Specification of XU32W Universal Radial Milling Machine:

MODEL	XU32W
Spindle Taper	ISO 40
Distance from Spindle to Table	90-370mm
Distance from Horizontal Spindle to Table	0-280mm
Spindle Speeds	(16steps)80-5440r.p.m(vertical)/(12steps)40-1300r.p.m(horizontal)
Spindle Travel	120mm
Feeding of Quill	(3 steps)0.01,0.08,0.15
Head Movement	±45°
head movement	±45°
Max.Drilling Capacity of Auto-feeding	10(iron)mm
Table Size	1250×320(1370×320)
Table Travel(Horizontal/Cross/Vertical)	600(700)/300/280mm
Distance from Spindle Axis to Arm	200mm
Feeding Range of Longitudinal,cross travel	(8steps) 22-555(rapid 1080mm/min)
Auto-feeding of Z-axis	560mm/min
T-slot(Number-Width-Distance)	3-14-70
Main Motor	3HP(V) 2.2KW(H)
Motor for Rapid Device of Table(X,Y)	750w
Motor for Vertical Device of Table(Z)	750w
Overall Dimension	1700×1500×2000mm
N.W/G.W	1500/1600kg
