SM36 Universal Key Milling Machine
US$ 1 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HISING
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brand New Universal Swivel Head Milling Machine for SaleUS$ 3,000 - 4,500MOQ: 1 Set -
Brand New Universal Knee-type Milling Machine for SaleUS$ 15,000 - 25,000MOQ: 1 Set
-
Milling Drilling Machine ZX6350ZUS$ 10,000 - 20,000MOQ: 1 Set
-
XL6236 Universal Milling MachineUS$ 6,500 - 8,700MOQ: 1 Set
-
X6325D Turret Milling Machine for SaleUS$ 1,500 - 5,500MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HISING
Model Number
SM36
Type
Vertical
CNC or Not
Normal
Voltage
Customer Requirement
Power(W)
3KW
Dimension(L*W*H)
1.8x2.0x2.2M
Weight
2650kg
Certification
CE ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
SM36 Universal Key Milling Machine:
Specification of SM36 Universal Key Milling Machine:
| Model | SM36 | |
| Worktable Size | 1250×360mm | |
| Worktable Travel | 1000×300×400mm | |
| Distance from Horizontal Spindle to Table | 0-400mm | |
| Distance from Vertical Spindle to Table | 350mm | |
| T-slot of Table (number-width-length) | 3-18-80mm | |
| Spindle Taper | Vertical | ISO40 |
| Horizontal | ISO40 | |
| Spindle Speed (range/steps) | Vertical | 35-1600rpm(11steps) |
| Horizontal | 40-1300rpm(12steps) | |
| Range of Worktable X,Y Travel | 22-555mm/min | |
| Rapid Feed of Worktable | 1080mm/min | |
| Max.Rotation Angle of Swivel Milling Head | ±360° | |
| Main Motor Power | 3kw | |
| Motor for Rapid Device of Table(x,y/z) | 0.75/1.1kw | |
| N.W | 2650kg | |
Features of SM36 Universal Key Milling Machine :
Full gear type headstock makes the direct exchange between vertical and horizontal milling without moving the ram.
Extended length and thickness saddle,more rigid and stable.

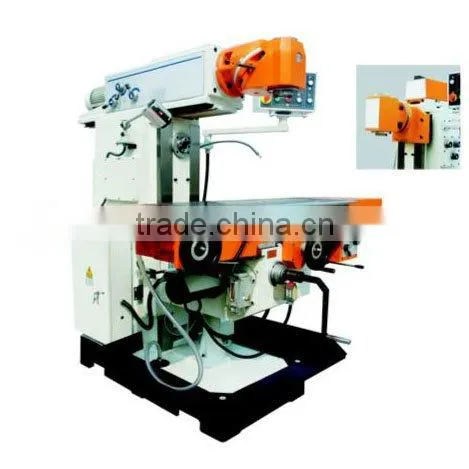

Photo of SM36 Universal Key Milling Machine:
