hydraulic guillotine metal plate shear machine, hydraulic metal shear machine
- 50 Set / Sets per Month
- QINGDAO PORT SHANGHAI PORT
- T/T Credit Card PayPal
-
REBOUND CNC plasma cutting machinery with bevel head 30mm
-
REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
-
Best price cnc detachable plasma cutting machinery for gas-plasma cutting
-
helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
-
pump inside air detachable plasma cutting machinery sliding work bench
-
solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | HISING | ||
| Model Number: | QC12Y-4X2500 | Voltage: | 380V/220V/415V | Rated Power: | 7.5KW |
| Dimension(L*W*H): | 3200*1650*1750MM | Weight: | 4500KG | Certification: | CE, ISO9001 |
| Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
hydraulic guillotine metal plate shear machine:
MAIN EQUIPMENT COMPONENT OF hydraulic guillotine shearing machine:
1. Main electrical equipments: Schneider--made in Telemecanique;
2. Main oil seals of the cylinders: NOK-made in Janpan.;
3. The backgauge with DRO display: NC89 or E10—made in CHINA;
4. Oil pipe connector:EMB (It’s adopted under 16mm thickness);
5. The low noise of the gear pump-made in Shanghai (It’s adopted under 16mm thickness);
6. Blades:made in Shanghai;
7. Advanced integrated hydraulic system: FIRST-made in America or same quality other brand;
8. Main motor: made in CHINA;
9. Fully Safety guard protect the rear, throat and front;
10. Rear Safety guard with Photoelectric;
11. Foot Pedal with emergency stop;
12.The safety of electrical cabinet with interlock:;
13. Foot Pedal with emergency stop;
14.With workingpiece receiver;
15. Colors:According to customers requirements(Orange-peel painting);
16. Provide the customer’s Logo according to customer’s requirement;
Main specifications of hydraulic guillotine metal plate shear machine:
Chart. 1: | |||||||||||
Type | QC12Y-4X2000 | QC12Y-4X2500 | QC12Y-6X2500 | QC12Y-6X3200 | QC12Y-6X4000 | QC12Y- 6X5000 | QC12Y-6X6000 | QC12Y- 8X2500 | QC12Y-8X3200 | ||
Cutting Capacity (T*W) (mm) | 4X2000 | 4X2500 | 6X2500 | 6X3200 | 6X4000 | 6X5000 | 6X6000 | 8X2500 | 8X3200 | ||
Cutting Angle | 1°30′ | 1°30′ | 1°30′ | 1°30′ | 1°30′ | 1°30′ | 1°30′ | 1°30′ | 1°30′ | ||
Intensity Of tension for plate | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | ||
Travel Distance of Backgauge (mm) | 600 | 600 | 600 | 600 | 600 | 750 | 750 | 600 | 600 | ||
Stroke Times(time/min) | ≥17 | ≥17 | ≥14 | ≥10 | ≥8 | ≥6 | ≥5 | ≥14 | ≥10 | ||
Distance between two colums (mm) | 2170 | 2720 | 2720 | 3420 | 4220 | 5220 | 6220 | 2720 | 3420 | ||
The length of knife board(mm) | 2050 | 2600 | 2600 | 3300 | 4100 | 5100 | 6100 | 2600 | 3300 | ||
Depth of the throat (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
Pump -Motor | Power (kw) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 15 | 15 | 11 | 11 | |
System pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | ||
G.Weigh (kg) | 4000 | 4500 | 5300 | 6500 | 8500 | 13500 | 17500 | 5900 | 7000 | ||
Dimension(L*W*H) (mm) | 2750*1600*1750 | 3200*1650*1750 | 3250*1700*1750 | 4200*1750*1750 | 4800*1800*1850 | 5900*2100*2100 | 6900*2300*2200 | 3300*1700*1800 | 4200*1750*1800 | ||
Chart. 2: | |||||||||||
Type | QC12Y- 8X4000 | QC12Y-8X5000 | QC12Y-8X6000 | QC12Y-10X2500 | QC12Y-10X3200 | QC12Y-10X4000 | QC12Y- 12X2500 | QC12Y-12X3200 | QC12Y-12X4000 | ||
Cutting Capacity (T*W) (mm) | 8X4000 | 8X5000 | 8X6000 | 10X2500 | 10X3200 | 10X4000 | 12X2500 | 12X3200 | 12X4000 | ||
Cutting Angle | 1°30′ | 1°30′ | 1°30′ | 1°48′ | 1°48′ | 2° | 2° | 2°′ | 2° | ||
Intensity Of tension for plate | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | ||
Travel Distance of Backgauge (mm) | 600 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | ||
Stroke Times(time/min) | ≥8 | ≥6 | ≥5 | ≥10 | ≥9 | ≥7 | ≥10 | ≥9 | ≥7 | ||
Distance between two colums (mm) | 4220 | 5220 | 6220 | 2850 | 3450 | 4250 | 2850 | 3450 | 4250 | ||
The length of knife board(mm) | 4100 | 5100 | 6100 | 2600 | 3300 | 4100 | 2600 | 3300 | 4100 | ||
Depth of the throat (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
Pump -Motor | Power (kw) | 11 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 18.5 | |
System pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | ||
G.Weigh (kg) | 9200 | 14500 | 21000 | 7500 | 9500 | 12500 | 8000 | 10000 | 13500 | ||
Dimension(L*W*H) (mm) | 4850*1850*1950 | 5900*2150*2200 | 6900*2300*2350 | 3400*1850*1950 | 4250*2100*2000 | 4900*2100*2250 | 3400*1850*2000 | 4300*2100*2050 | 4950*2150*2300 | ||
Chart. 3: | |||||||||||
Type | QC12Y-12X5000 | QC12Y-16X2500 | QC12Y-16X3200 | QC12Y-16X4000 | QC12Y-20X2500 | QC12Y-20X3200 | QC12Y-20X4000 | QC12Y- 25X2500 | QC12Y-25X3200 | ||
Cutting Capacity (T*W) (mm) | 12X5000 | 16X2500 | 16X3200 | 16X4000 | 20X2500 | 20X3200 | 20X4000 | 25X2500 | 25X3200 | ||
Cutting Angle | 2° | 2° | 2° | 2° | 2°30′ | 2°30′ | 2°30′ | 3° | 3° | ||
Intensity Of tension for plate | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | 450N/mm² | ||
Travel Distance of Backgauge (mm) | 750 | 750 | 750 | 750 | 800 | 800 | 800 | 900 | 900 | ||
Stroke Times(time/min) | ≥5 | ≥7 | ≥6 | ≥5 | ≥6 | ≥5 | ≥4 | ≥4 | ≥4 | ||
Distance between two colums (mm) | 5250 | 2850 | 3450 | 4250 | 2807 | 3507 | 4250 | 2807 | 3507 | ||
The length of knife board(mm) | 5100 | 2600 | 3300 | 4100 | 2600 | 3300 | 4100 | 2600 | 3300 | ||
Depth of the throat (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Power (kw) | 18.5 | 18.5 | 22 | 22 | 30 | 30 | 37 | 37 | 37 | |
System pressure (Mpa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | ||
G.Weigh (kg) | 18500 | 10500 | 13500 | 17000 | 13000 | 15500 | 21000 | 17000 | 23000 | ||
Dimension(L*W*H) (mm) | 5950*2450*2500 | 3500*2100*2100 | 4300*2200*2250 | 5000*2280*2350 | 3550*2250*2200 | 4350*2250*2350 | 5000*2600*2700 | 3600*2400*2500 | 4350*2600*2700 | ||
Optional: 1. Pneumatic sheet support | |||||||||||
After-sales service: 1. One-year’s warranty for the quality.The supplier will replace the parts including imported parts which are out of use because of poor quality during the warranty period; 2. Free of charge training for buyer in manufactory; | |||||||||||

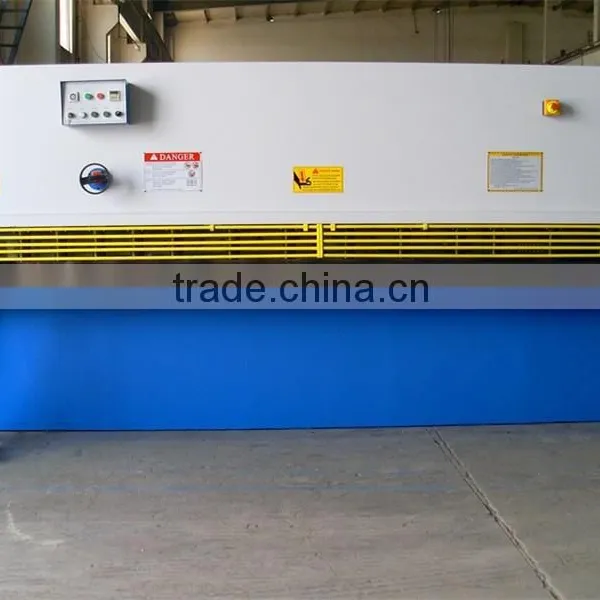

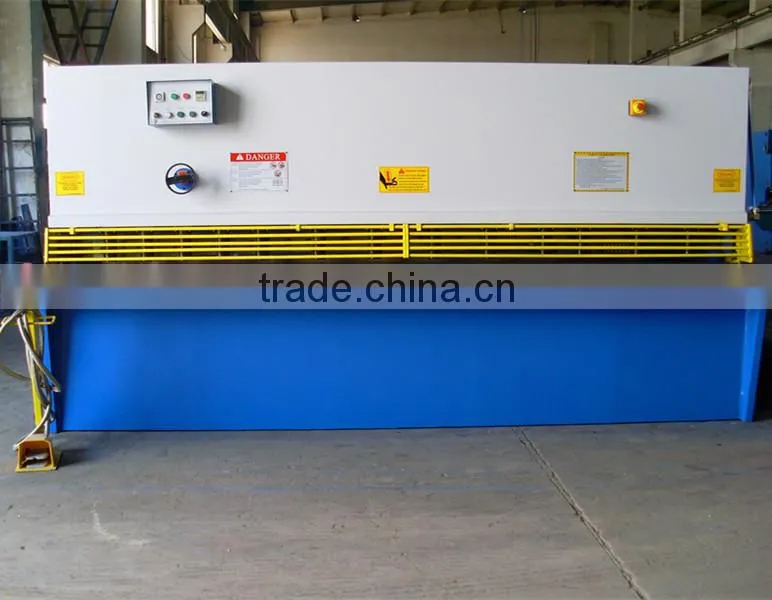

QC12Y-4x2500 hydraulic guillotine metal plate shear machine, photos for your reference:
For more hydraulic guillotine metal plate shear machine and other metal cutting machines, pls click here
