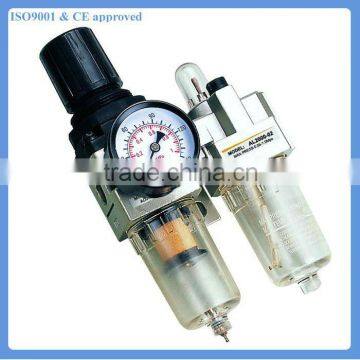

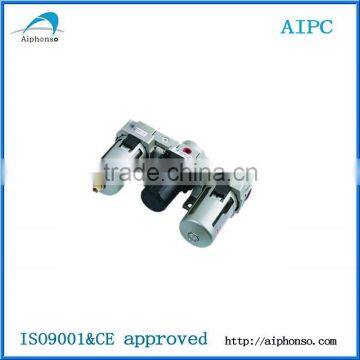

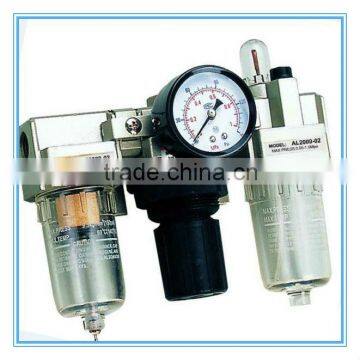

Help CenterAir Preparation Unit,Filter + Regulator + Lubricator Combination (SMC Series)
Related Products
-
Air Combination, Air Treatment, F.R.L CombinationUS$ 10 - 20MOQ: 100 Pieces -
Air Treatmnet AL Series Air Lubricator SMC StandardUS$ 5 - 10MOQ: 50 Pieces
-
Filter and Regulator Unit/Air Threatment FilterUS$ 3 - 5MOQ: 10 Pieces
-
Air Filter and Regulator Unit GW SeiresUS$ 4.5 - 16.5MOQ: 10 Pieces
-
Air Filter and Regulator UnitUS$ 5 - 10MOQ: 10 Pieces
Specifications
Air regulator1.Model:AR1000-M5,AR2000-02,AR3000-02,AR3000-03,AR4000-03,AR4000-04,AR4000-06,AR5000-06,AR5000
2.High Quality
AIRTAC Air source treatment unit
1)Filering grade:40μm
2)pressure range:0.05-0.85MPa
3)Temperature:5-60oC
4)port size:1/8",1/4",3/8",1/2",1"
5)rated flow: 2000:500L/m
3000:2000L/m
4000-04:4000L/m
4000-06:4500L/m
5000:5000L/m
AFC - 2000 - D
↓ ↓ ↓
Model Port size blank:manual drain
D: Auto-drain
Model |
AC2000 |
BC2000 |
BC3000 |
BC4000 |
||||
Joint Pipe Bore |
G1/4” |
G1/4” |
G3/8” |
G1/2” |
||||
Working Medium |
Air |
|||||||
Rang of Adjustable Pressure |
0.05~0.85Mpa 0.5Bar~8.5Bar |
|||||||
Max. Adjustable Pressure |
0.95Mpa 9.5Bar |
|||||||
Ensured Pressure Resistance |
1.5Mpa 15Bar |
|||||||
Operating Temperature Range |
5~60°C 41~140F |
|||||||
Filter Grade |
40μ |
|||||||
Capacity of Body |
AFR 15cc BFR 60cc |
|||||||
Capacity of Oil Feed Cup |
AL: 25cc BL: 90cc |
|||||||
Suggested Lube |
ISO VG 32 or Same Grade Oil |
|||||||
Material of Body |
Aluminum Die-casting Forming |
|||||||
Composing Elements |
Regulator |
AR2000 |
BR2000 |
BR3000 |
BR4000 |
|||
Filter |
AF2000 |
BF2000 |
BF3000 |
BF4000 |
||||
Lubricator |
AL2000 |
BL2000 |
BL3000 |
BL4000 |
||||
