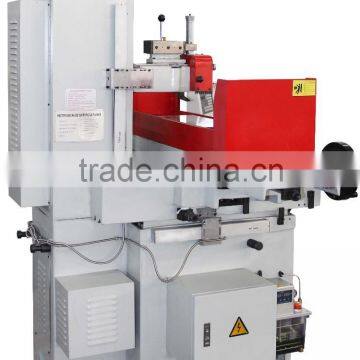

New Condition Precision Surface Grinder Hydraulic Type

Name: New Condition Precision Surface Grinder Hydraulic Type
Brand: TZHISING
SKU: 122083751
Availability: InStock

US$ 11,870 - 13,850 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT SHANGHAI PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 400mm

Max. Grinding Length 800mm

Place of Origin Shandong, China

Brand Name TZHISING

Model Number SGA 4080AH/AHD/AHR

Voltage 380V/220V/415V

Power(W) 5.5KW

Dimension(L*W*H) 2850x2270x2150mm

Weight 3500KG

Certification CE, ISO9001-2000

After-sales Service Provided Engineers available to service machinery overseas

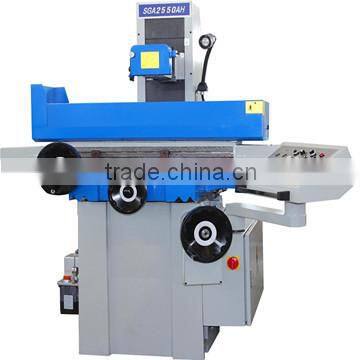

Main Features of New condition Precision Surface Grinder hydraulic type with table size 406x813mm:

Well Designed Structure

High Rigidity

High Accuracy with manual scrapping.

With CE certification.

Main specification of New condition Precision Surface Grinder hydraulic type with table size 406x813mm:

Description Model Model		Unit	SGA2050AH		SGA3063AH	SGA30100AH		SGA4080AH	SGA40100AH
			SGA2050AHR		SGA3063AHR	SGA30100AHR		SGA4080AHR	SGA40100AHR
			SGA2050AHD		SGA3063AHD	SGA30100AHD		SGA4080AHD	SGA40100AHD
Table size(W×L)		mm	250×500		305×635	3.5×1020		406×813	406×1020
Max. Longitudinal travel		mm	560		765	1130		910	1130
Cross travel		mm	275		340	340		450	450
Max. Distance from spindle center to table		mm	450		580	580		580	580
Magnetic chuck size		mm	250×500		300×600	300×1000		400×800	400×1000
Speed of table longitudinal moving		m/min	7~23
Table trans Verse-moving	Auto feed	m/min	0.1~8
	Rapid speed	m/min	990
	Feed of handwheel	mm/div.	0.02
Wheel head Vertical moving	Auto feed	mm/stroke	---(AH/AHR mode)0.005/0.01/0.02/0.03/0.04/0.05(Only for AHD model)
	Rapid speed	m/min	---(AH mode )460(Only for AHR/AHD mode)
	Feed of handwheel	mm/div	0.005(Only for AHR/AHD model)
Grinding wheel	speed	r.p.m	50Hz 2850 60Hz 3450		50Hz 1450 60 Hz 1750
	Wheel size	mm	200×20×31.75		350×40×127
Spindle motor		kw	2.2		5.5
Hydraulic motor		kw	0.75		2.2
Cooling pump motor		kw	0.04		0.125
Elevating motor		kw	0.25 (AHR mode) 0.5 (AHD mode,servo motor)
Cross feed motor		kw	0.04
Max. Loading capacity of table(include magnetic chuck)		kg	180	270		400		500	600
Total rated power		kw	3.7	9.0
Height of machine		mm	1675	1890
Floor space(L×W)		mm	2650×2150	3800×2200		4400×2200	3600×2400			4400×2400
Gross weight		kg	1800	2700		3400	3700			4200
Package size(L×W×H)		mm	217×212×215	235×222×213		295×222×215	285×227×215			295×227×218
