M818A China Manufacture Top Quality Low Cost Small Manual Type Surface Grinder FOR SALE

M818A China Manufacture Top Quality Low Cost Small Manual Type Surface Grinder FOR SALE thumbnail-1
M818A China Manufacture Top Quality Low Cost Small Manual Type Surface Grinder FOR SALE photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Tengzhou Hising Machine Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT SHANGHAI PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Place of Origin Shandong, China
Brand Name TZHISING
Model Number M618A
Voltage 380V/220V/415V
Power(W) 1.5KW
Dimension(L*W*H) 1330X1090X1680MM
Weight 790KG
Certification CE, ISO9001-2000
After-sales Service Provided Engineers available to service machinery overseas

Main Features of M818A China manufacture top quality low cost small manual type surface grinder FOR SALE:

Well Designed Structure

High Rigidity

High Accuracy with manual scrapping.

With CE certification.





Main specification of M818A China manufacture top quality low cost small manual type surface grinder FOR SALE:



Model Unit M618A M818A SG200 SG250
Max. width to be groud mm 165 220 165 220
Max. length to be groud mm 470 470 470 520
Max. height to be groud mm 350 350 350 350
Tabel size mm 155×460 210×450 150×460 200×520
Permanent magnetic chuck size (optional) mm 150×400 200×400 150×400 200×450
Max.longitudinal travel mm 500 500 500 570
Max.cross travel mm 185 240 200 250
Max.distance from spindle center to table surface  mm 450 450 450 450
Feed of vertical handwheel per rew. mm 1 1 2 2
per div. mm 0.005 0.005 0.005 0.005
Grinding wheel size (OD×W×ID) mm 200×13×31.75 200×13×31.75 200×20×31.75 200×20×31.75
Spindle speed r/min 3450 (60HZ),2850 (50HZ)
Power of spindle head kw Standard 1.5(build in spindle:1.1kw)
Max.load capacity(include permanent magnetic chuck) kg 97 128 110 140
Machine weight kg 790 920 1000 1120
Machine dimension (L×W×H) mm 1330×1090×1680 1330×1150×1680 1360×1350×1710 1450×1390×1770
Package dimension (L×W×H) mm 1153×1373×1920 1153×1413×1950 1670×1560×1930 1670×1700×1980

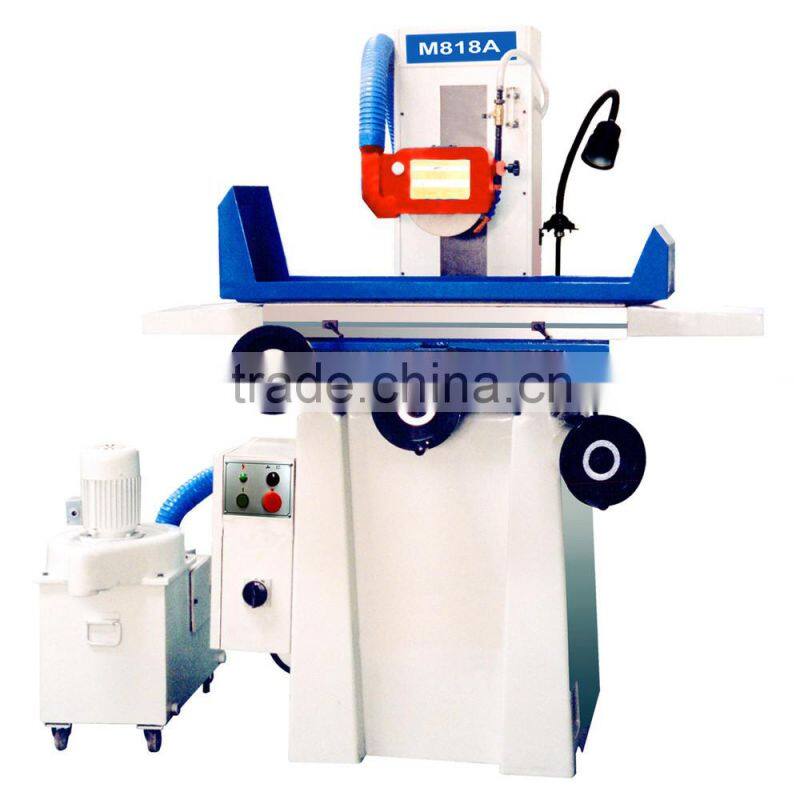

PHOTO OF M818A China manufacture top quality low cost small manual type surface grinder FOR SALE:

M818A China manufacture top quality low cost small manual type surface grinder FOR SALE
