Homemade Cnc Router Machine HSA1325 Wooden Door Design Cnc Router Machine
- Qingdao
- T/T Credit Card
You May Like
-
All in One Woodworking Machine Robot Auto Feeding Machining Center HSA1325 Cnc Router
-
Cnc Router Wood Carving Machine for Sale HSA1325 Wood Design Cutting Machine Wood Working Cnc Router With Atc
-
China Cnc Wood Machine HSA1325 Large Cncwoodworking Machining Center Auto Feeding Wood Machine Center
-
Cnc Router Wood Carving Machine for Sale HSA1325 Auto Feeding Wood Machine Center
-
Automatic Cutting Cnc Machine HSA1325 Cnc Woodworking Carving Machine Shopbot Cnc Router for Sale
-
Christmas Fabulous Automatic Furniture Sculpture Wood Carving Auto Feeding Machining Center HSA1325 Cnc Router Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Hanshi | |
| Model Number | HSA1325 | Voltage | AC380V, 50/60 Hz, 3Ph | |
| Power(W) | 9.0KW | Dimension(L*W*H) | 1300*2500*200mm | |
| Weight | 4250KG | Certification | ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Want to Know More About Jinan Hanshi CNC Technology Co. Ltd. ?
http://hanshicnc.en.china.cn

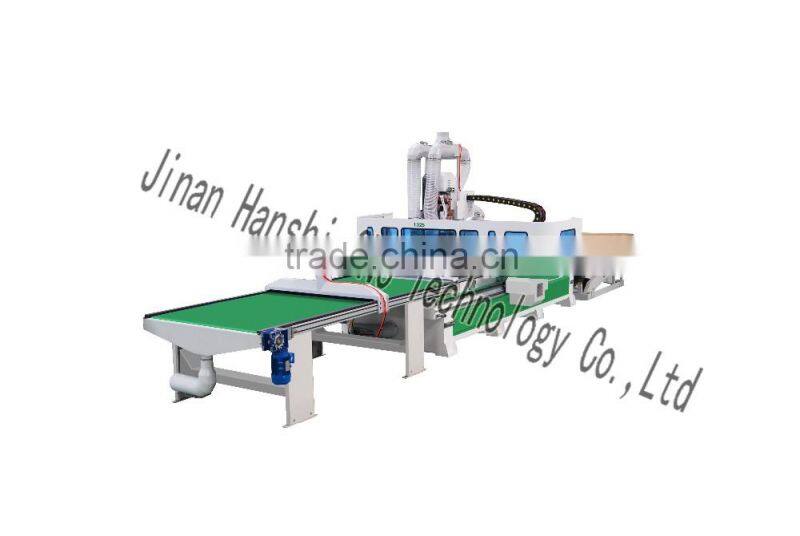

homemade cnc router machine HSA1325 wooden door design cnc router machine
The machine is our newly-developed CNC Router with combined function of material loading and unloading for cabinet-making, widely used in home decoration, shop and office furniture. It is equipped with Italy HSD Spindle, Italy Boring unit and advanced Syntec control system, Japanese Yaskawa servo and Taiwan reducers.
2. Feature of wooden door design cnc router machine
1) With intelligent , humanization, and high automatic operation, this machine can make the operator much more easier for handling all, any people can learn in couple hours for operating , can save cost of labor.

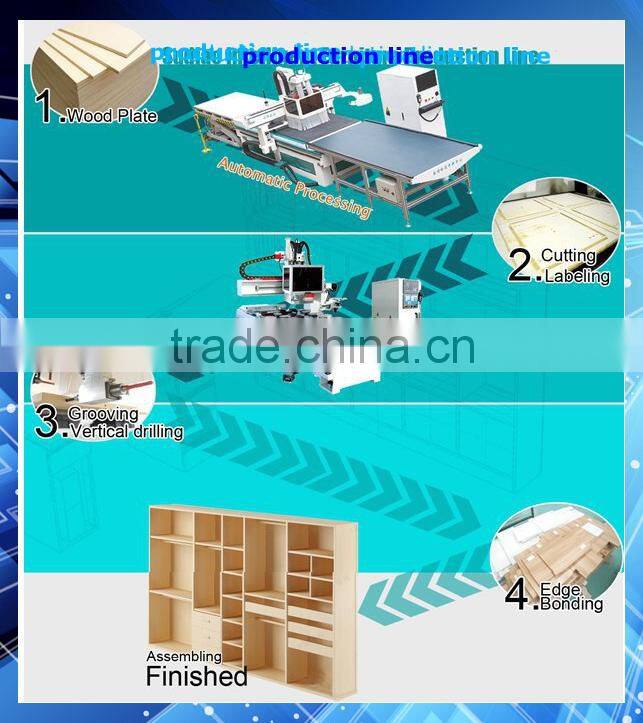

2) Automatically uploading and downloading, automatically nesting, optimizing cutting orders, drilling, to maximum the productive.

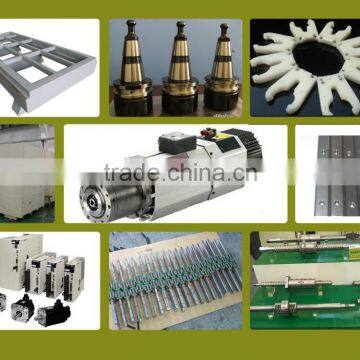

3)Leading brand components such as Italian HSD spindle (automatic tool change), Japanese Yaskawa servo motors, Taiwan Syntec controller, Apex reducer and transmissions ensure high efficiently.
4)Double layer vacuum table can hold small pieces for excellent cutting, realize all kinds of customaries cabinet.
3. Technical Parameters of wooden door design cnc router machine
Parameter | HSA1325 |
X,Y,Z,B Travelling | 1300*2500*200mm |
Table | Double Layer Vacuum Table |
Frame | Welded Structure |
X,Y,Z Drive System | X,Y Helical rack and pinion, Z Ball screw |
Max Rapid | 50000mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 9.0KW |
Spindle Speed | 0-24000RPM |
Driving System | Yaskawa servo motors |
Working Voltage | AC380V, 50/60 Hz, 3Ph |
Command Language | G code |
Operating System | Syntec Control |
Software | CV, Auto Nesting, Spazio 3D |
Net Weight | 4250KG |
Options | Vacuum pump |
4.Packaging and Shipping
We could pack according to your requirement, usually wooden container
We usually choose Qingdao , Rizhao or Tianjin Port.
Production time usually between 10-20 workdays after 30% deposite, shippment after confirm receive the balance .
5. Our Services
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
Warranty and After service
1. Our warranty is 12 months counting from the date when the Machine arrives at the port of destination.
2. We will supply after service 24 hours,customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to help.

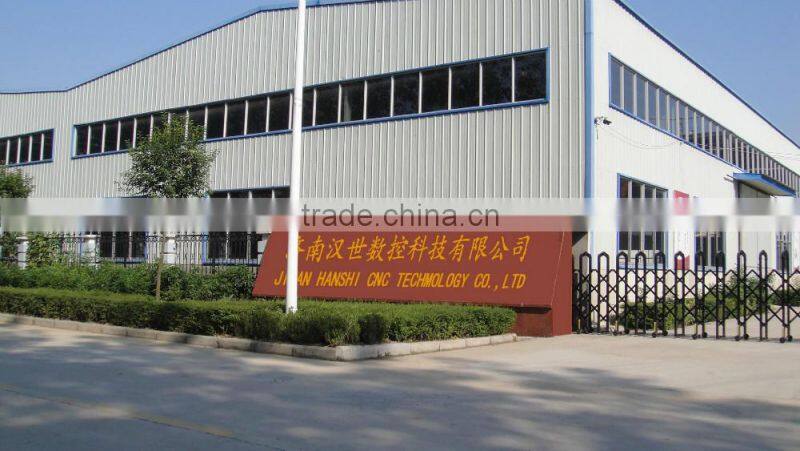

Jinan Hanshi CNC Technology Co., Ltd is a production enterprise which combines research & development, manufacturing and sales. The company specialized in Engraving Machine,Carpentry Engraving Machine,Furniture Engraving Machine,Advertising Engraving Machine,Laser Engraving Machine,Stone Engraving Machine,Glass Engraving Machine,Metal Engraving Machine etc. The team offers technical services computer,CNC machine and industrial automatic products relied on advanced technology and accumulated market experience.

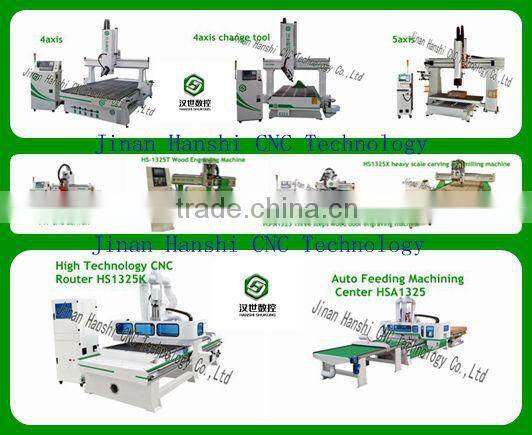

Mainly products: CNC Engraving Machine, Laser Engraving Machine,Computer carving series etc.
“Making high quality products, creating world brand” as our development concept. “To create maximum value for customers” as our business principle. We hope to cooperate with more customers for mutual development and benefits.
Exhibition
we attended China International Furniture Fair hold in Shanghai this September .
Jinan Hanshi CNC Sales Team Members
Company Activities
Q1.----How can I get the most suitable HS1325 ATC automatic feeding machine ?
A1.---- Please tell us the material.
What will be the work? Engraving ? Cutting ? Or other ? Mold or sample making?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2:---- Do you have manual for the machine?
A2.-----Yes, we will give you the machine English Manual and also our engineers make English video for most steps in operation.
Q3.---- If we don’t know how to operate HS1325 ATC automatic feeding machine, can you teach us?
A3.---- Yes,
First, if you come to China,we will offer you free training until you can use machine freely.
Second, we can send after-sale engineer to you, but you need to bear some fee,like tickets and hotel and mealand visa and trainning.
Q4.---- Are you a manufacturer or just trading?
A4. ---- We are Jinan Hanshi factory,we can provide good after-sales service, in the course if you have any technical problems, you can always contact us :)
If still any questions about this auto loading & unloading cnc machine, we will give you 24hours service from phone and Skype. Pls don't hesitate to contact us!
contact ways
We would be sincerely at your service, wherever you are, for whatever you ask and whenever it is. Please free to contact us at:
♥ Send an inquiry now,you will have more discount & more detail about price,packing,shipping,ect.
